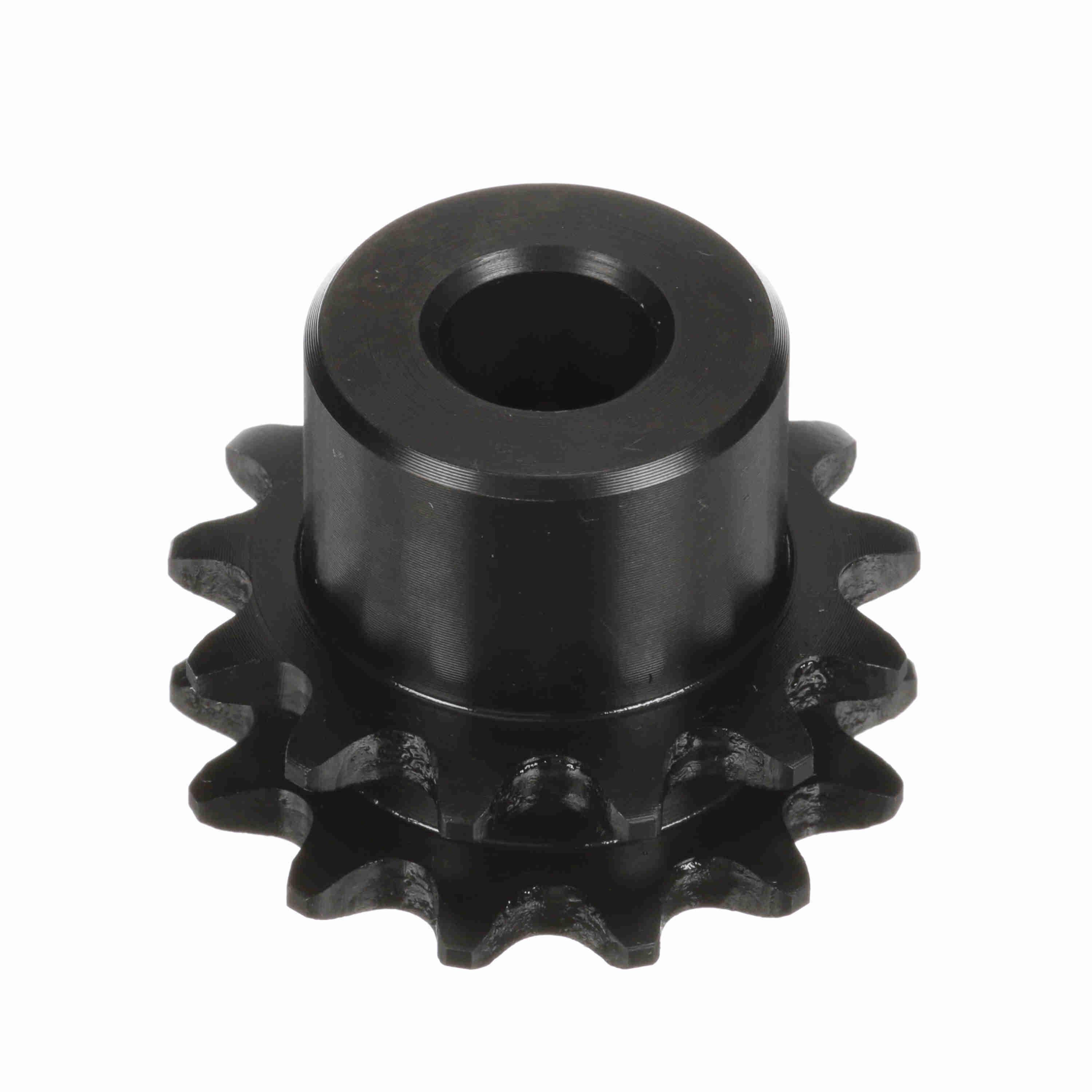

Browning® 1125186 Double Strand Minimum Bore Type B Roller Chain Sprocket With Hardened Teeth, 1/2 to 9/16 in Dia Bore, 1-3/4 in OD, 35 Chain, 13 Teeth, 3/8 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289171668
-
Manufacturer Part Number1125186
-
CountryUSA
-
Pitch Diameter1.567 in
-
MaterialSteel
-
Chain Size35
-
TypeDouble Strand Minimum Bore Type B
-
Hub Diameter1-7/64 in
-
Number of Teeth13
-
Outside Diameter1-3/4 in
-
Length Through Bore1-1/4 in
-
Bore Diameter1/2 to 9/16 in
- Larger hub diameter allows larger bore capacity
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- Lasts longer than sprockets made from low carbon steel
- Large hub diameters, provides flexibility when reboring
- Hub is recessed for chain clearance
- For use with 3/8 in pitch ANSI chain
-
Alternative Part NumberD35B13
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
