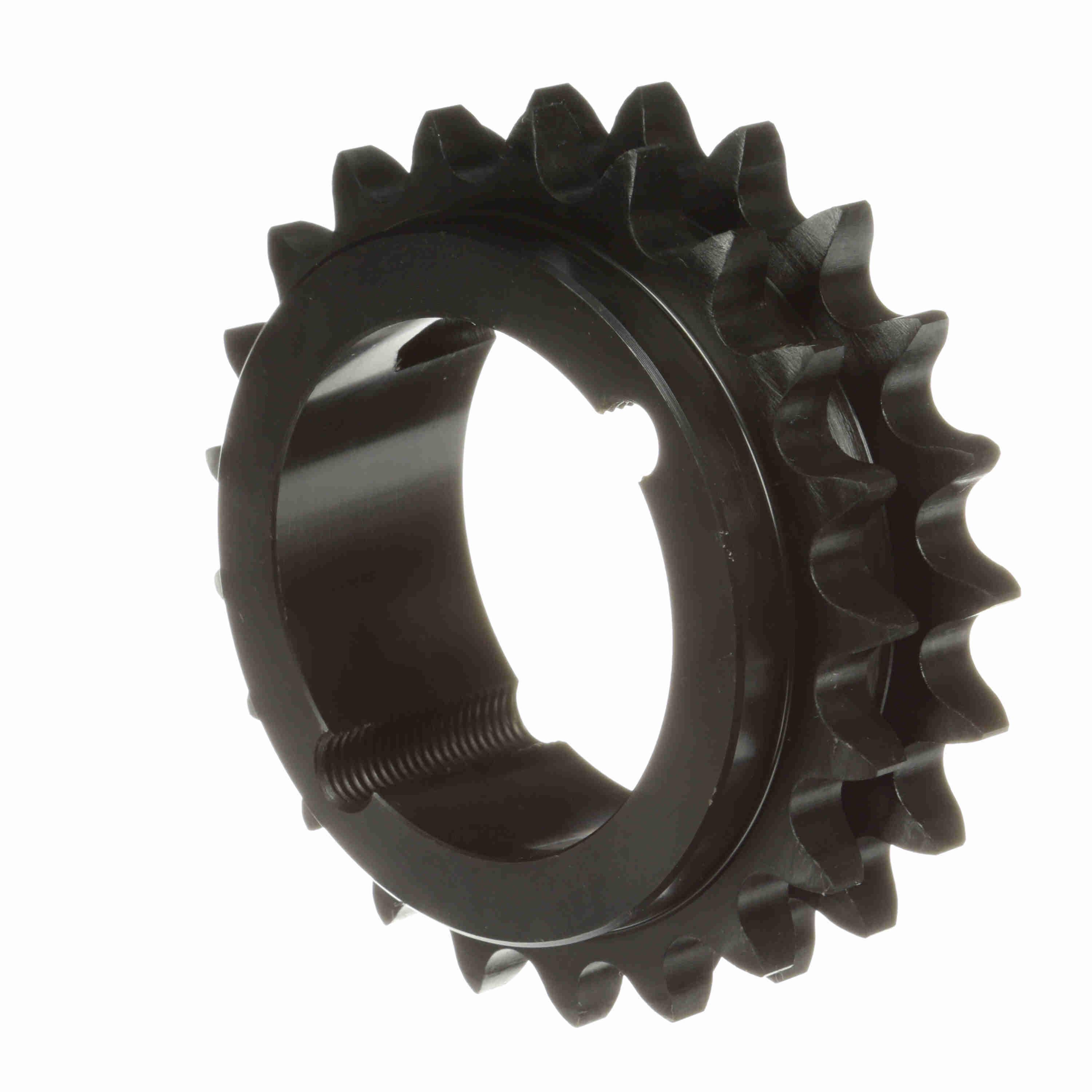

Browning 21-TOOTH #60-2-CHAIN DBL/SPROCKETS BRW D-60-TB-21
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289604838
-
Manufacturer Part Number3748175
-
CountryUSA
-
Pitch Diameter5.032 in
-
MaterialSteel
-
Chain Size60
-
TypeDouble Strand Type 2
-
Hub Diameter4.188 in
-
Number of Teeth21
-
Outside Diameter5.426 in
-
Length Through Bore1-3/4 in
-
Bore Diameter1/2 to 2-1/2 in
- This product has the Browning® exclusive twice the life guarantee
- Compact design
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- Flush fit, less space on shaft and no protruding flange
- Setscrew or cap screw acts as external key
- For use with 3/4 in pitch ANSI chain
-
Alternative Part NumberD60TB21
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
