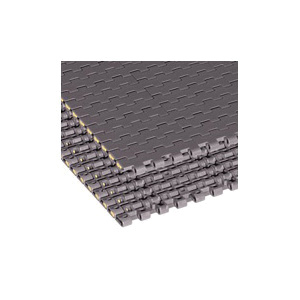

MCC® MatTop® HP1505-21 1500 Straight Running Flat Top Conveyor Chain With Polypropylene Pin, 0.59 in Pitch, 21 in W x 0.34 in THK Plate, Acetal
They are also nose-over capable for tight end to end transfers solid top chains have a smooth top and are versatile enough to convey everything from individual units as well as packaged and cased goods. Chain is available in different chain materials for different friction, wear and speed characteristics. Chain is designed to operate on standard 1500 series sprockets for true chain/sprocket interaction.
-
BrandMCC®
-
UPC793699263442
-
Manufacturer Part NumberHP1505-21
-
CountryUSA|Canada
-
Pitch0.59 in
-
Plate Thickness0.34 in
-
Plate Width21 in
-
FinishBrown
-
Tensile Strength900 ft-lb
-
MaterialAcetal
-
Minimum Back-Flex Radius1 in
-
TypeStraight Running
-
Series1500
- Engineered for a wide range of conveyor applications for many industries
- Continuous conveying surface for greater-width-requirement MatTop® chain applications
- Reduce container tipping and jams at transfer points
- Straight-running for ease of installation, reduced floor space
- HP™ high-performance material patented blend of acetal specifically formulated for dry-running conveyors due to excellent friction characteristics
-
UNSPSC31151614
-
Standards/ApprovalsFDA 21 CFR 177
-
Instruction/Installation Manual
