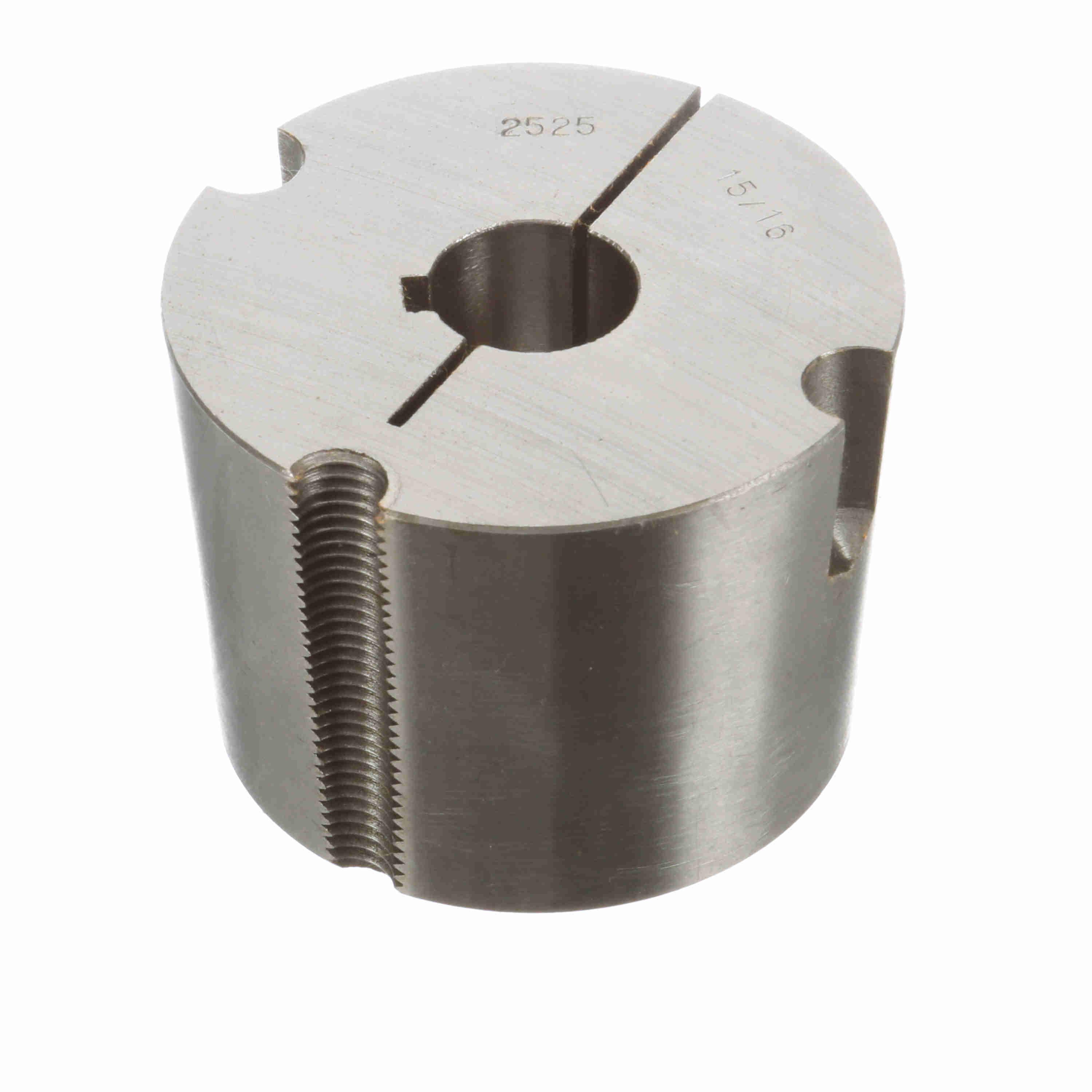

Browning® 3749819 Taper Lock Bushing, 15/16 in Dia Bore, 3-3/8 in Dia Barrel, 2-1/2 in OAL, Steel
Browning® 3749819 Taper Lock Bushing, 15/16 in Dia Bore, 3-3/8 in Dia Barrel, 2-1/2 in OAL, Steel
-
BrandBrowning®
-
UPC662289617128
-
Manufacturer Part Number3749819
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating11300 in-lb
-
Screw Size1/2 x 1 in
-
Number of Bolt Holes2
-
Barrel Diameter3-3/8 in
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter3-1/4 in
-
Bore Diameter15/16 in
-
Overall Length2-1/2 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
-
Alternative Part Number2525X15/16
-
UNSPSC31163205
-
Package DescriptionEACH
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
Recently Viewed
Browning® 3749819 Taper Lock Bushing, 15/16 in Dia Bore, 3-3/8 in Dia Barrel, 2-1/2 in OAL, Steel
Browning® 3749819 Taper Lock Bushing, 15/16 in Dia Bore, 3-3/8 in Dia Barrel, 2-1/2 in OAL, Steel
MasterDrive 3535-2.5/8 3535 3 Socket Tapered Bushing, 2.62 in Dia Bore, 4.83 in Dia Barrel, 5 in OAL, Cast Iron
TB (Taped Lock Style) Bushings are used on sheaves, sprockets and pulleys to provide increased clamping force over standard bore-to-size components. They are tapered in design without flanges and utilize screws to tighten on the shaft. Their compact design makes them convienent in many applications that are space-constrained. Each TB Bushing size is produced in a number of different finished bore options that include a keyway, as well as a minimum plain bore option. This allows users flexibility when using TB style sheaves, sprockets or pulleys in applications that may utilize various shaft sizes.
