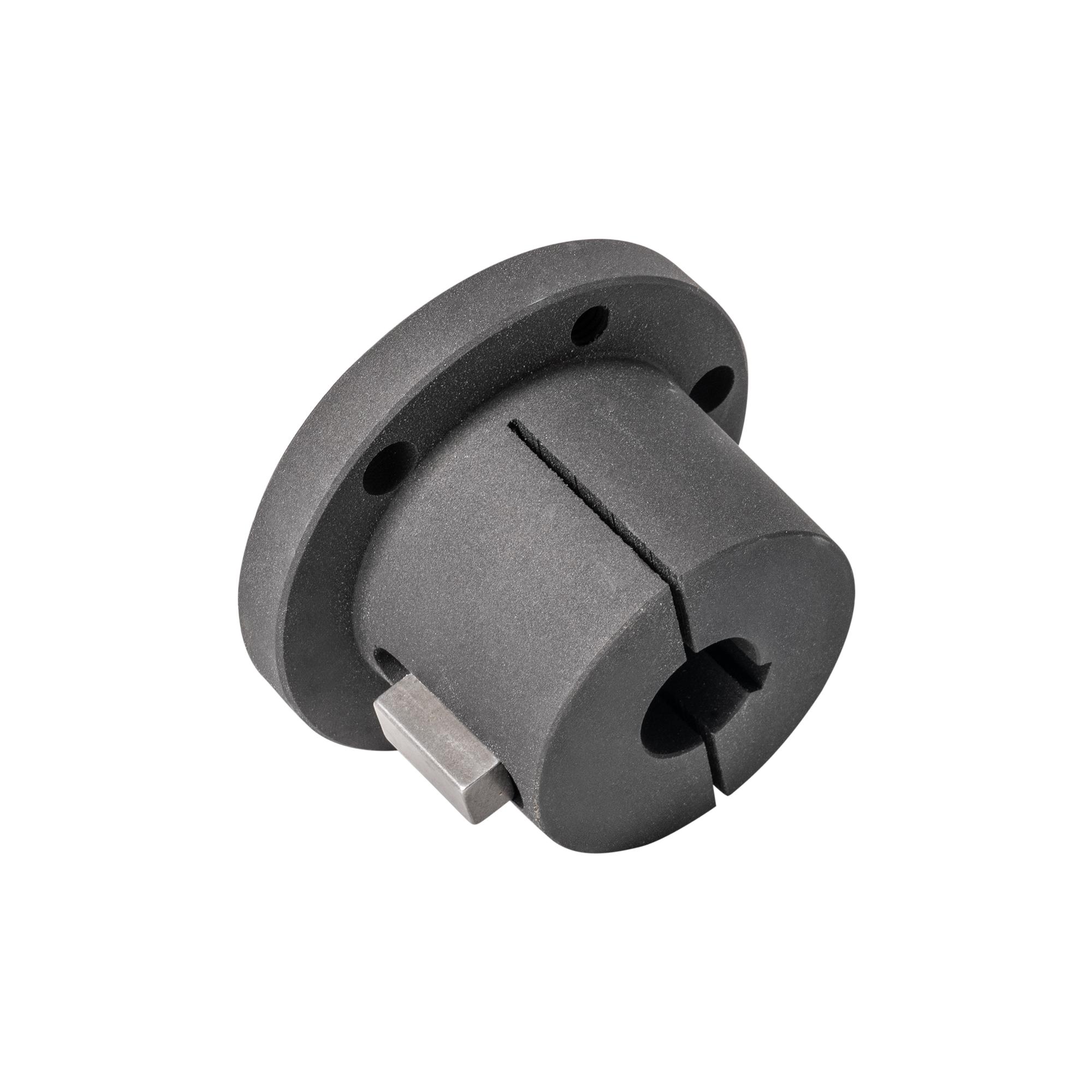

MasterDrive Q2-1.15/16 Q2 Series Double Split Tapered Bushing, 1.93 in Dia Bore, 2-7/8 in Dia Barrel, 4-1/8 in Dia Flange, 3-1/2 in OAL, Ductile Iron
Double Split Tapered Bushings are used on sheaves, sprockets and pulleys to provide increased clamping force over standard bore-to-size components. They are tapered in design with flanges and utilize cap screws to tighten on the shaft. The double split design assures better concentricity to the shaft and provides the highest degree of mechanical locking component to component. Most sizes are contructed of ductile iron to provide strength and duarability. Each Split Taper Bushing series is produced in a number of different bore size options, most that include a keyway, allowing users flexibility when using sheaves, sprockets or pulleys in applications that may utilize various shaft sizes.
-
BrandMasterDrive
-
UPC806372049865
-
Manufacturer Part NumberQ2-1.15/16
-
CountryUSA
-
FinishBlack Phosphate
-
MaterialDuctile Iron
-
Flange Diameter4-1/8 in
-
Flange Thickness17/32 in
-
Torque Rating348 in-lb
-
TypeDouble Split
-
Screw Size3/8 x 1-1/4 in
-
SeriesQ2 Series
-
Barrel Diameter2-7/8 in
-
Keyway Size1/2 x 1/4 in
-
Bolt Circle Diameter3-3/8 in
-
Bore Diameter1.93 in
-
Overall Length3-1/2 in
- Double split barrel provides better concentricity to the shaft
- 3/4 in per ft Taper on the barrel
- Highest degree of mechanical component locking
-
Alternative Part Number2105002765
-
Package DescriptionEACH
-
