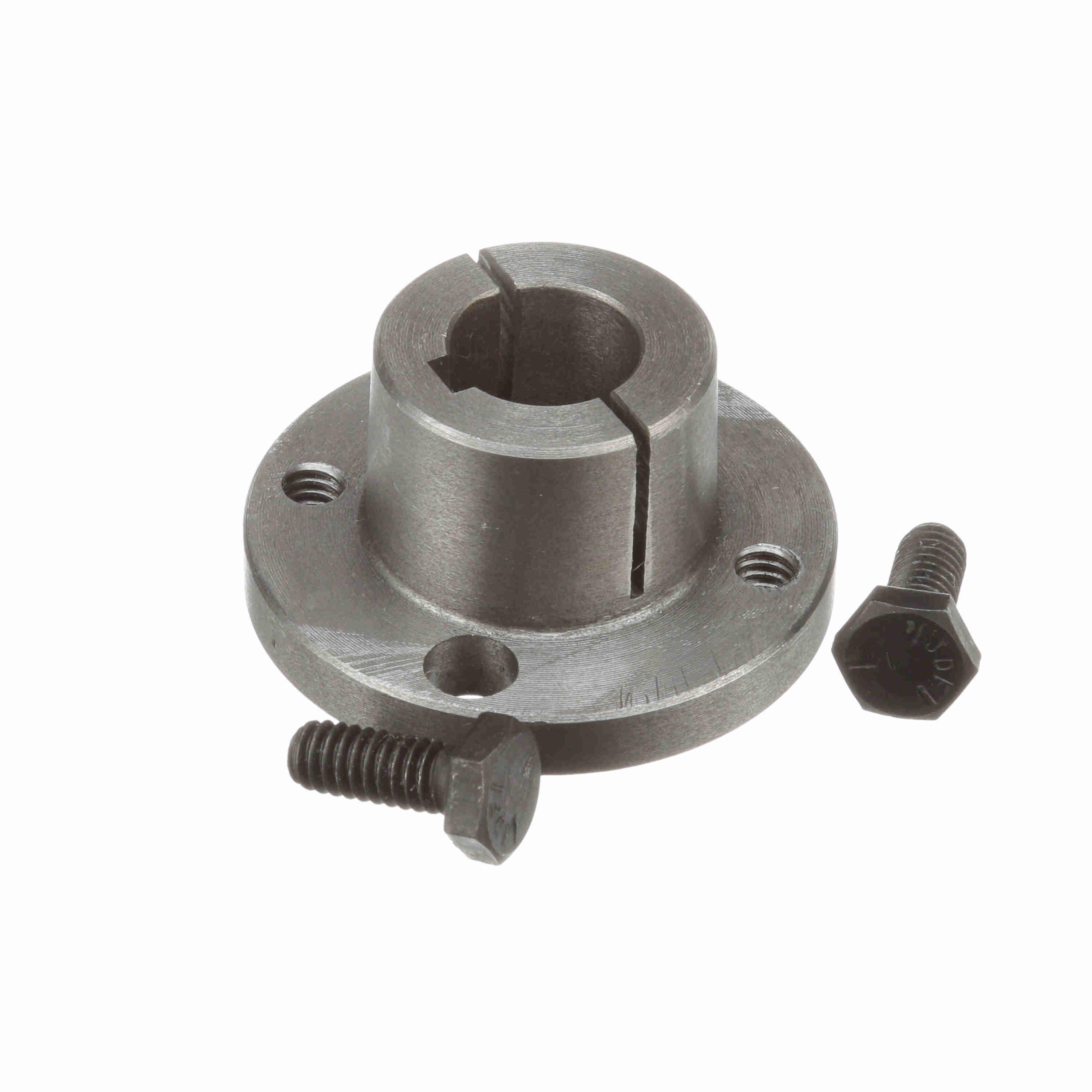

Browning® 1069111 Split Taper Bushing, 5/8 in Dia Bore, 1.133 in Small End/1.172 in Large End Dia Barrel, 2 in Dia Flange, 1 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289218837
-
Manufacturer Part Number1069111
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter2 in
-
Flange Thickness1/4 in
-
Screw Size1/4 x 5/8 in
-
Number of Bolt Holes2
-
Barrel Diameter1.133 in Small End/1.172 in Large End
-
Keyway Size3/16 x 3/32 in
-
Bolt Circle Diameter1-9/16 in
-
Bore Diameter5/8 in
-
Overall Length1 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100789749 |
| Motion Industries | 00226332 |
-
Alternative Part NumberG 5/8
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
