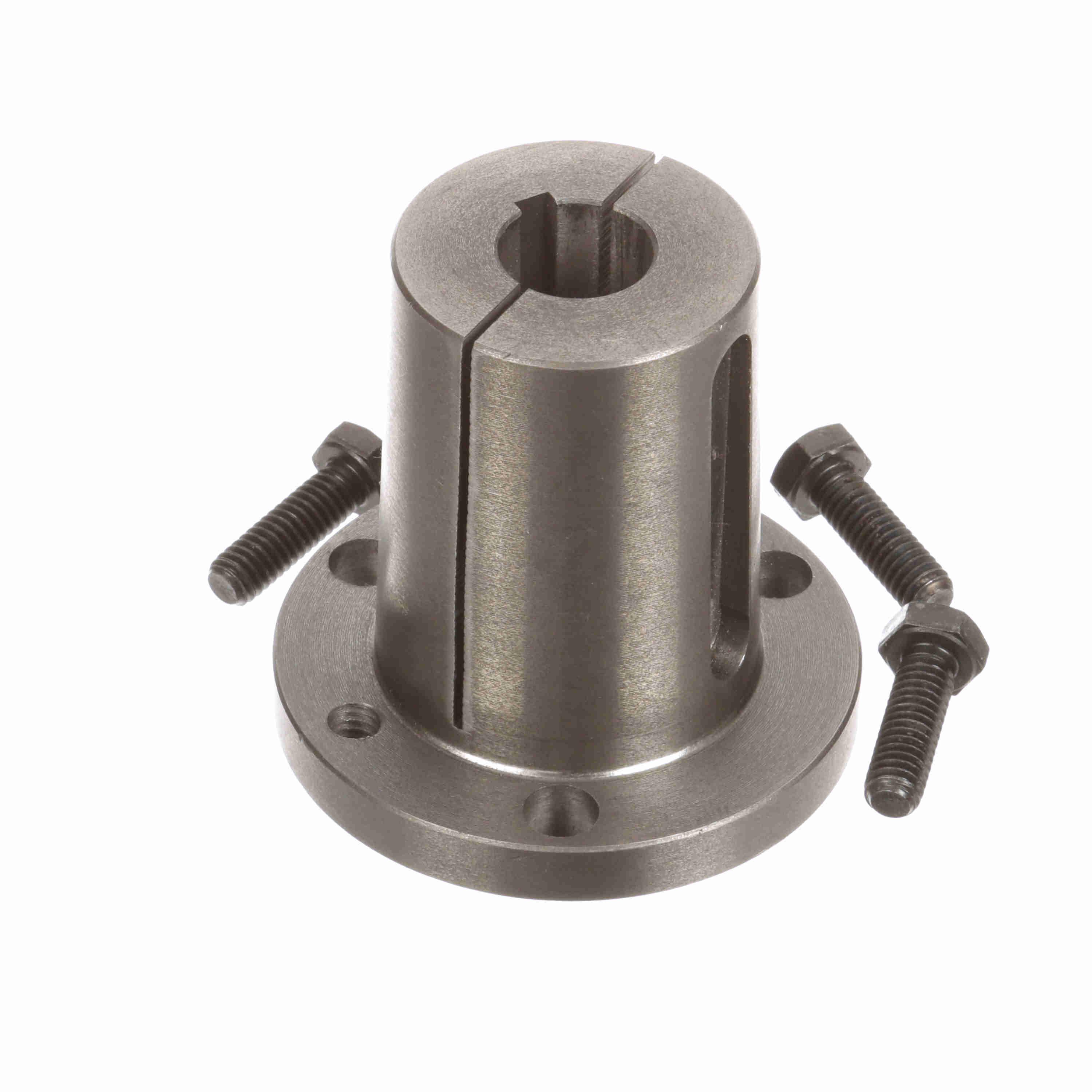

Browning® 1069558 Split Taper Bushing, 3/4 in Dia Bore, 1.793 in Small End/1.9375 in Large End Dia Barrel, 3 in Dia Flange, 2-15/16 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289169368
-
Manufacturer Part Number1069558
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter3 in
-
Flange Thickness13/32 in
-
Screw Size5/16 x 1 in
-
Number of Bolt Holes3
-
Barrel Diameter1.793 in Small End/1.9375 in Large End
-
Keyway Size3/16 x 3/32 in
-
Bolt Circle Diameter2-7/16 in
-
Bore Diameter3/4 in
-
Overall Length2-15/16 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberP2 3/4
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
