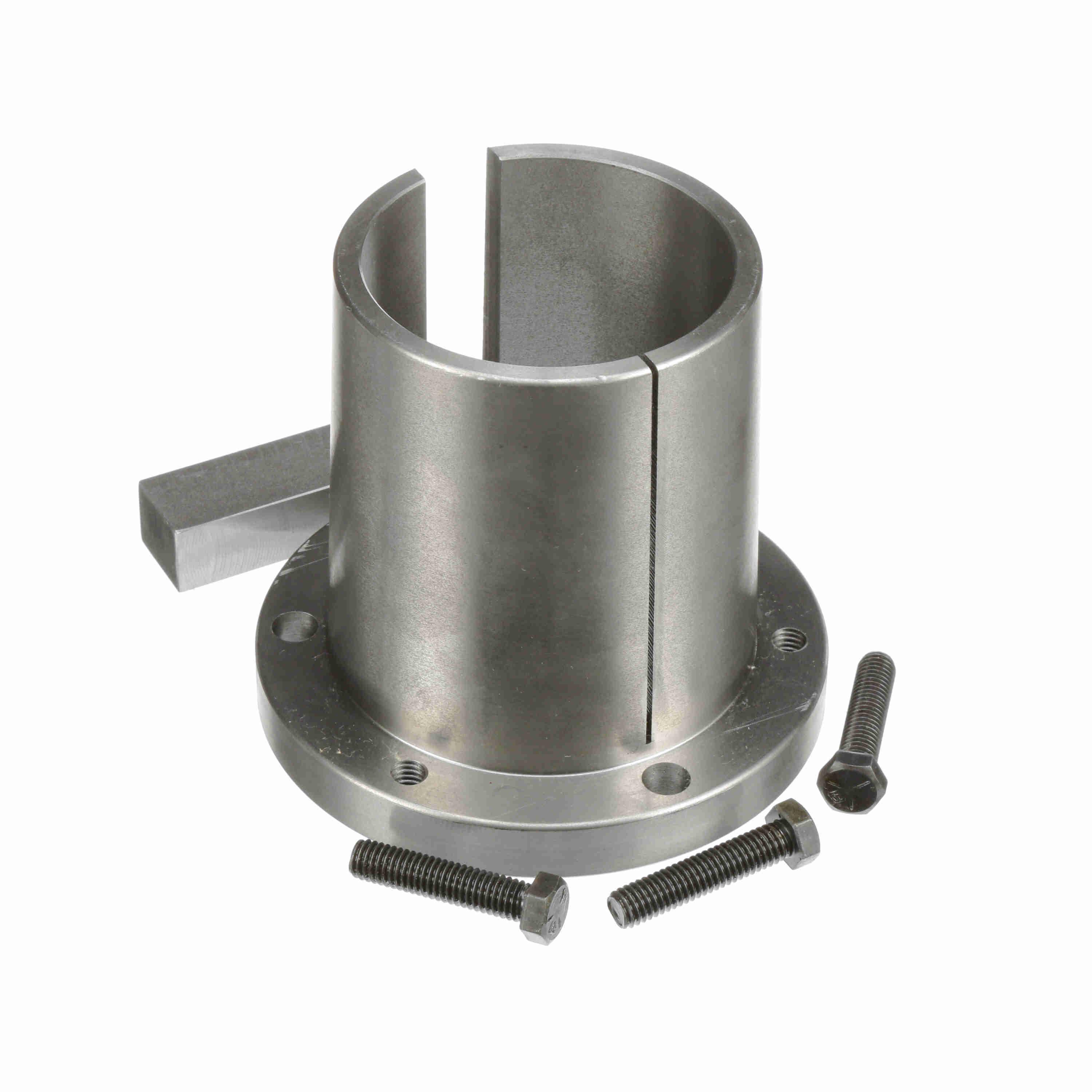

Browning® 1070770 Split Taper Bushing, 3-1/4 in Dia Bore, 3-3/4 in Small End/4 in Large End Dia Barrel, 5-3/8 in Dia Flange, 4-7/8 in OAL, Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289151172
-
Manufacturer Part Number1070770
-
CountryUSA
-
MaterialSteel
-
Flange Diameter5-3/8 in
-
Flange Thickness5/8 in
-
Screw Size3/8 x 1-3/4 in
-
Number of Bolt Holes3
-
Barrel Diameter3-3/4 in Small End/4 in Large End
-
Keyway Size3/4 x 3/8 in
-
Bolt Circle Diameter4-5/8 in
-
Bore Diameter3-1/4 in
-
Overall Length4-7/8 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Size 2/R2 bushing
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberR2 3 1/4
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
