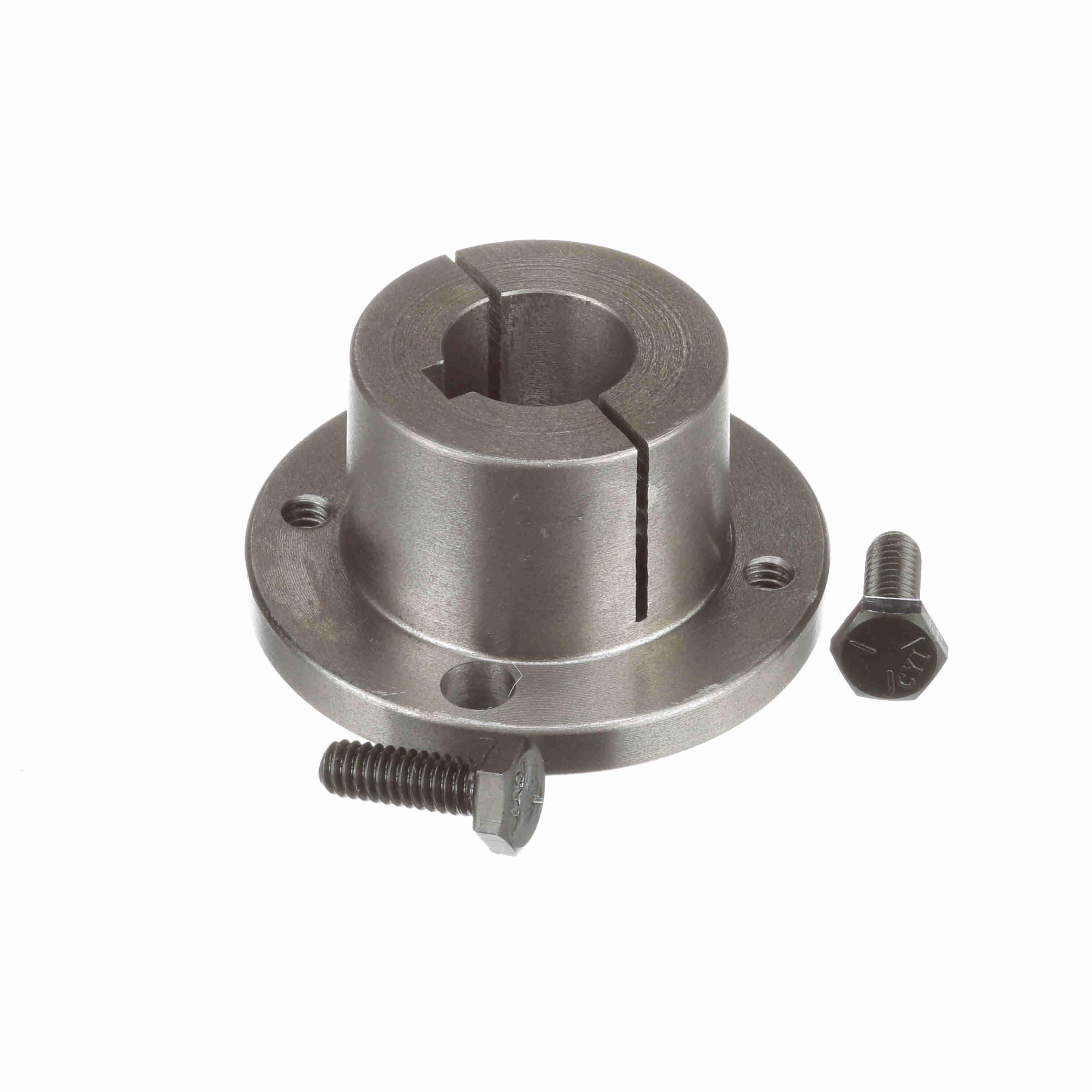

Browning® 1078518 Split Taper Bushing With Keyway, 20 mm Dia Bore, 1.57 in Small End/1.625 in Large End Dia Barrel, 2-1/2 in Dia Flange, 31.75 mm OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289391554
-
Manufacturer Part Number1078518
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter2-1/2 in
-
Flange Thickness1/4 in
-
Screw Size1/4 x 3/4 in
-
Number of Bolt Holes2
-
Barrel Diameter1.57 in Small End/1.625 in Large End
-
Bolt Circle Diameter2 in
-
Bore Diameter20 mm
-
Overall Length31.75 mm
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberH 20 MM
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
