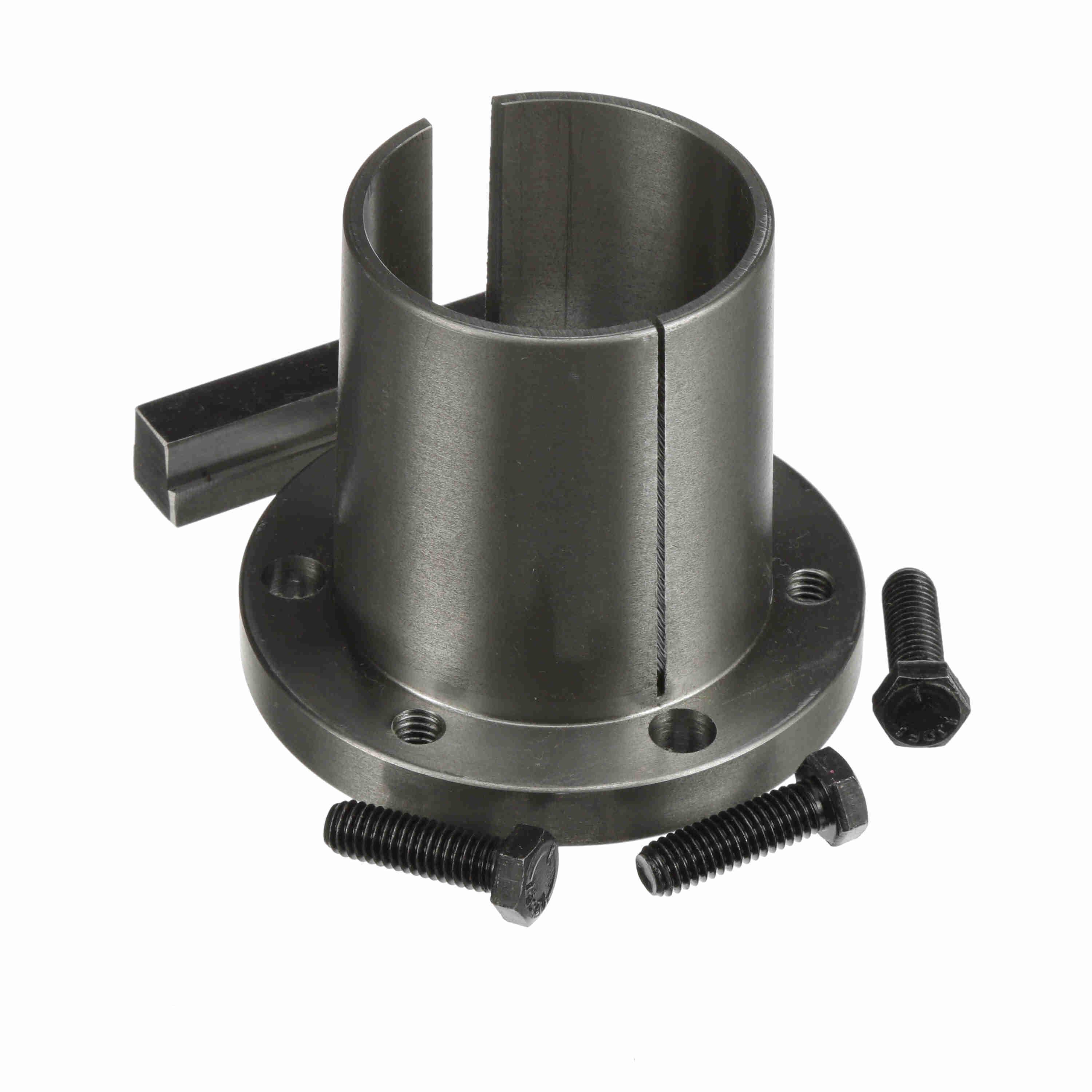

Browning 2-7/16"-ID Q-2-STYLE BUSHINGS BRW Q-2-2-7/16
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289120161
-
Manufacturer Part Number1079417
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter4-1/8 in
-
Flange Thickness17/32 in
-
Screw Size3/8 x 1-1/4 in
-
Number of Bolt Holes3
-
Barrel Diameter2.7032 in Small End/2.875 in Large End
-
Keyway Size5/8 x 5/16 in
-
Bolt Circle Diameter3-3/8 in
-
Bore Diameter2-7/16 in
-
Overall Length3-1/2 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Fixed flange tightener, tightener shaft must be ordered separately
- No shaft required when used with Idler Bushing
- Ductile iron
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberQ2 2 7/16
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
