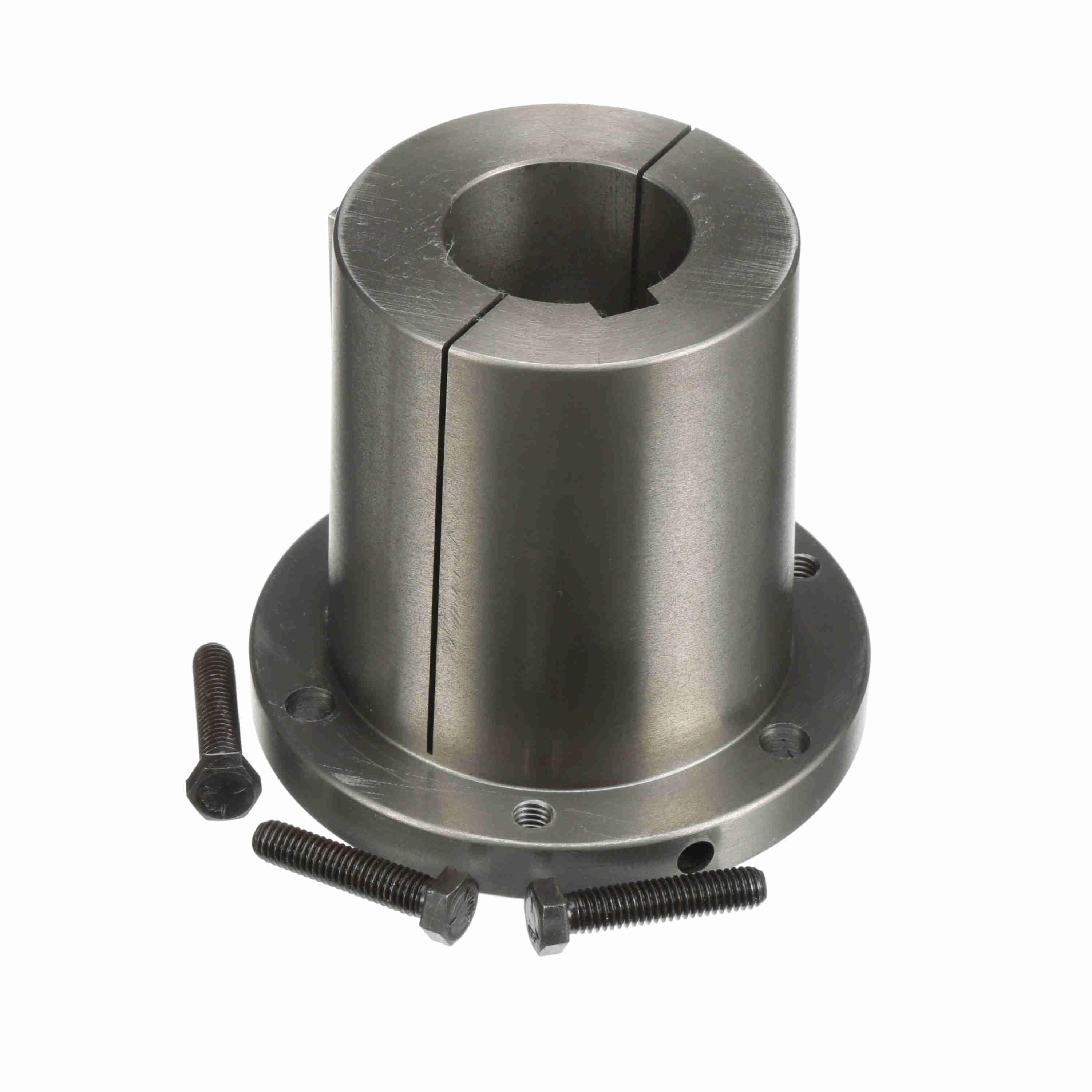

Browning® 1070622 Split Taper Bushing, 2-1/4 in Dia Bore, 3-3/4 in Small End/4 in Large End Dia Barrel, 5-3/8 in Dia Flange, 4-7/8 in OAL, Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289210930
-
Manufacturer Part Number1070622
-
CountryUSA
-
MaterialSteel
-
Flange Diameter5-3/8 in
-
Flange Thickness5/8 in
-
Screw Size3/8 x 1-3/4 in
-
Number of Bolt Holes3
-
Barrel Diameter3-3/4 in Small End/4 in Large End
-
Keyway Size1/2 x 1/4 in
-
Bolt Circle Diameter4-5/8 in
-
Bore Diameter2-1/4 in
-
Overall Length4-7/8 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Size 1/R2 bushing
- Solid flange and double split barrel, assures better concentricity to the shaft
- Key to key drive with keys on both the shaft and product to provide the strongest possible drive
- 3/4 in/ft taper on barrel, self locking taper provides the highest degree of mechanical locking product to product
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
-
Alternative Part NumberR2 2 1/4
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
