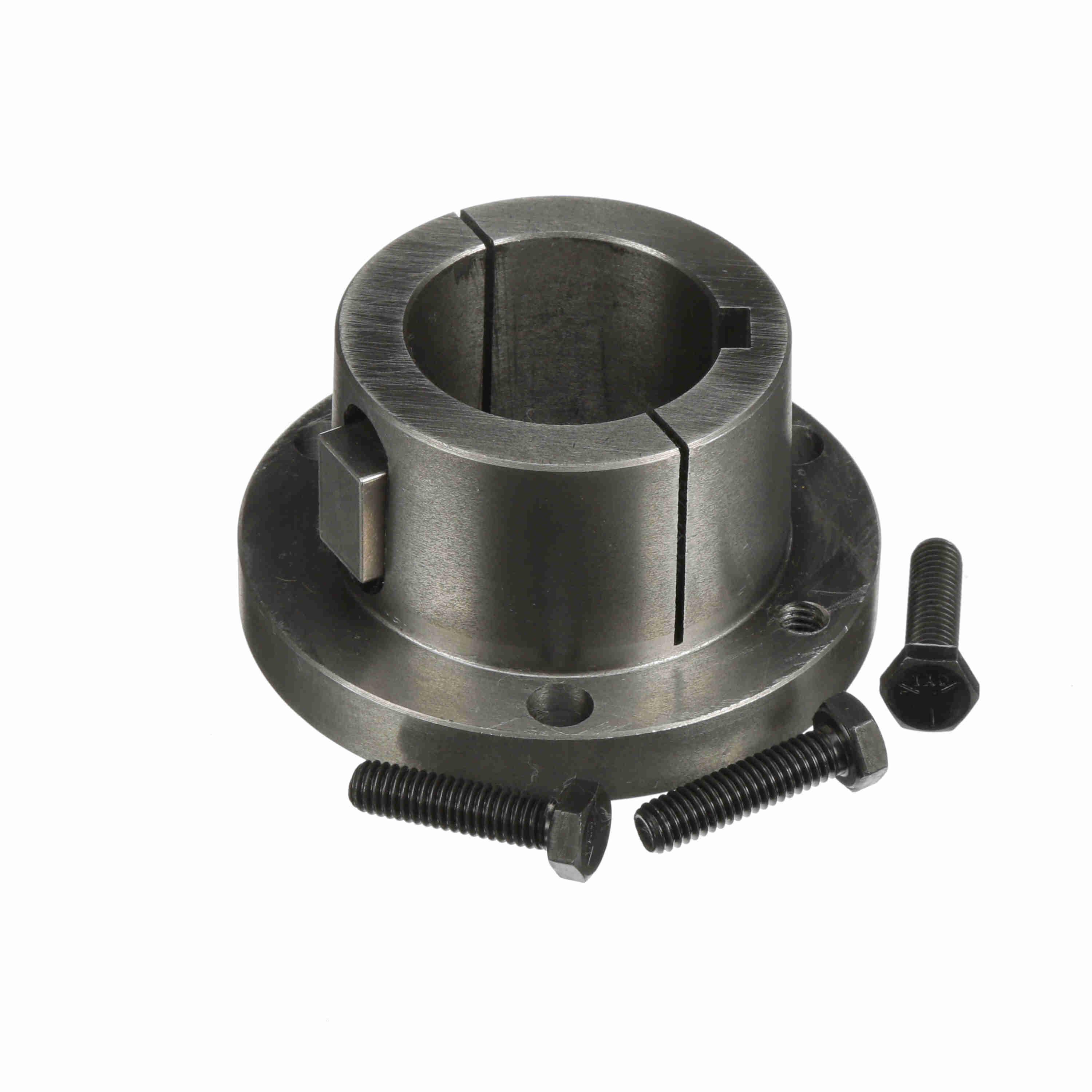

Browning® 3694858 Split Taper Bushing, 1-3/4 in Dia Bore, 2.5567 in Small End/2.625 in Large End Dia Barrel, 3-11/16 in Dia Flange, 1-15/16 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289038367
-
Manufacturer Part Number3694858
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter3-11/16 in
-
Flange Thickness1/2 in
-
Screw Size5/16 x 1-1/4 in
-
Number of Bolt Holes3
-
Barrel Diameter2.5567 in Small End/2.625 in Large End
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter3-1/8 in
-
Bore Diameter1-3/4 in
-
Overall Length1-15/16 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning offers a complete set of replacement shear pins
- Shear pins are available in a wide range of minimum shear strength
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberB 1 3/4
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
