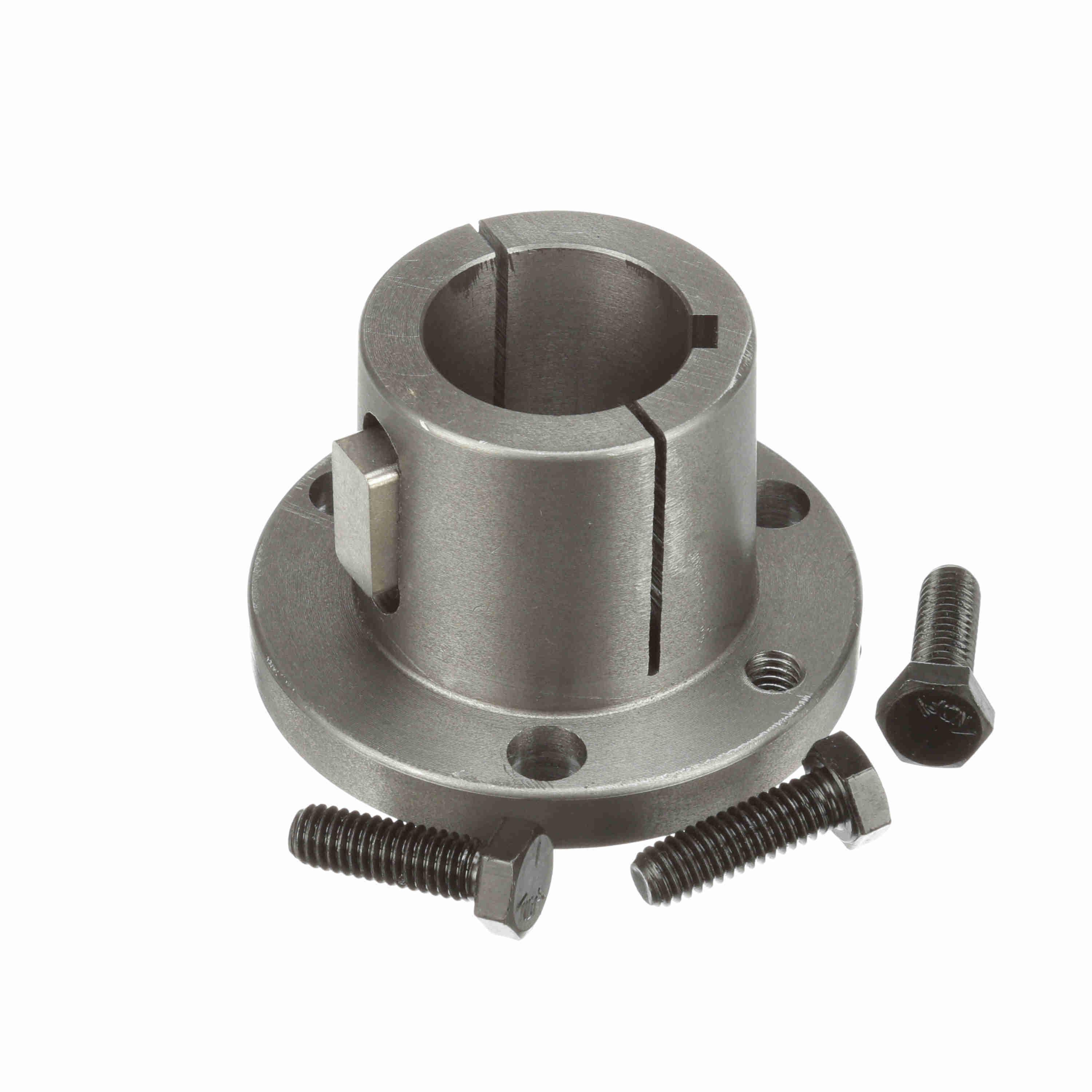

Browning 1-1/4"-ID P-1-STYLE BUSHINGS BRW P-1-1-1/4
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289199235
-
Manufacturer Part Number1069442
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter3 in
-
Flange Thickness13/32 in
-
Screw Size5/16 x 1 in
-
Number of Bolt Holes3
-
Barrel Diameter1.8555 in Small End/1.9375 in Large End
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter2-7/16 in
-
Bore Diameter1-1/4 in
-
Overall Length1-15/16 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Mating Spur Gears must have same pressure angle and pitch
- Standard Gear Rack - 1. Manufactured From Mild Steel, 2. 14 1/2 Pressure Angle - 32 to 3 DP, 3. 20 Pressure Angle - 20 to 4 DP, 4. 4 and 6 FT Available from Stock, 12 FT May Be Available on Some Sizes
- Modification Options Available - 1. Cut to Desired Length, 2. Milled and Matched Ends, 3. Drilled or Drilled and Tapped Holes for Mounting
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100789824 |
| Motion Industries | 00226403 |
-
Alternative Part NumberP1 1 1/4
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
