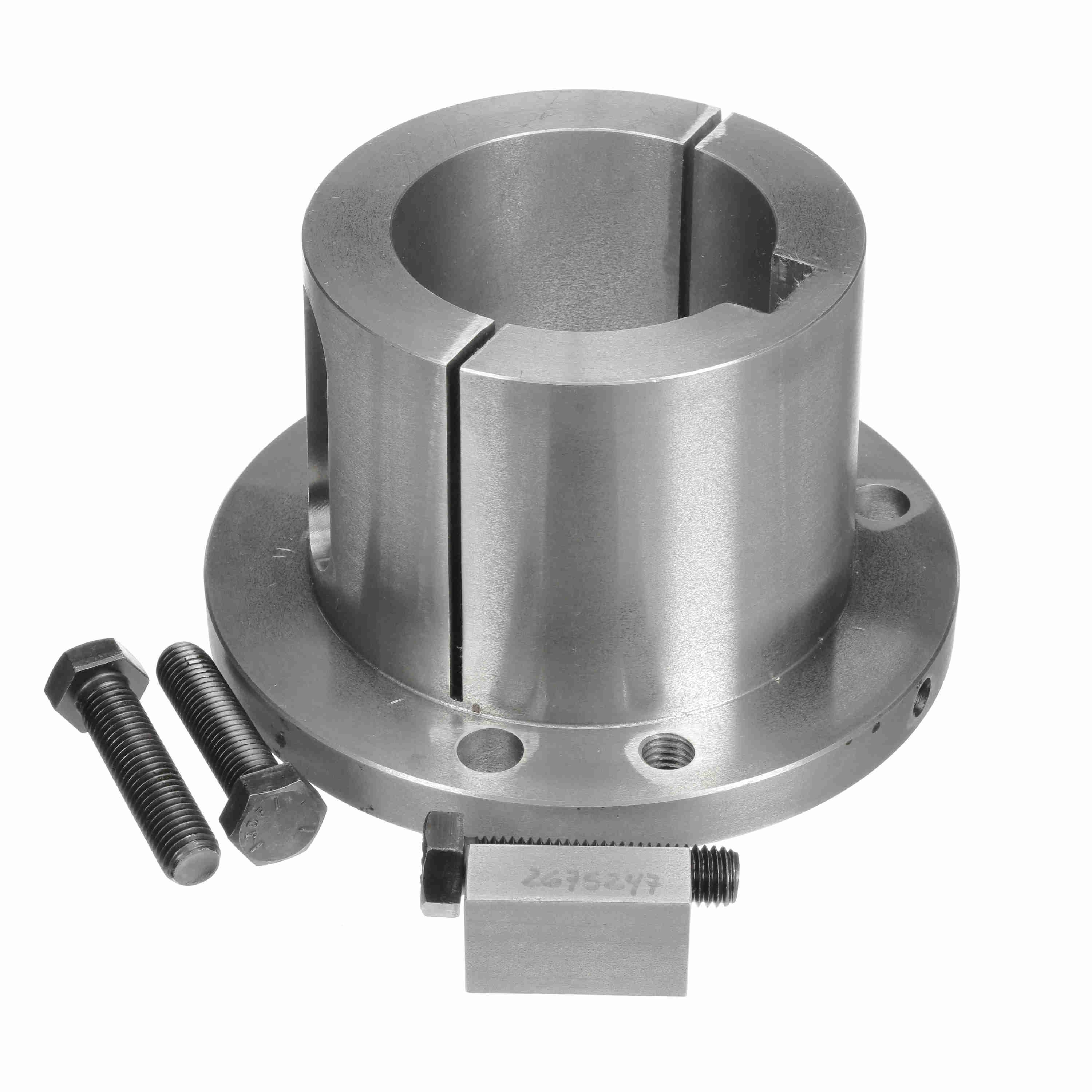

Browning® 1071430 Type U0 Split-Taper Bushing, 3-15/16 in Dia Bore, 5.766 in Dia Small End/6 in Dia Large End Dia Barrel, 8-3/8 in Dia Flange, 4.938 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289212071
-
Manufacturer Part Number1071430
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter8-3/8 in
-
Flange Thickness3/4 in
-
TypeType U0
-
Screw Size5/8 x 2-3/4 in
-
Number of Bolt Holes3
-
Barrel Diameter5.766 in Dia Small End/6 in Dia Large End
-
Bolt Circle Diameter7 in
-
Bore Diameter3-15/16 in
-
Overall Length4.938 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberU0 3 15/16
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
