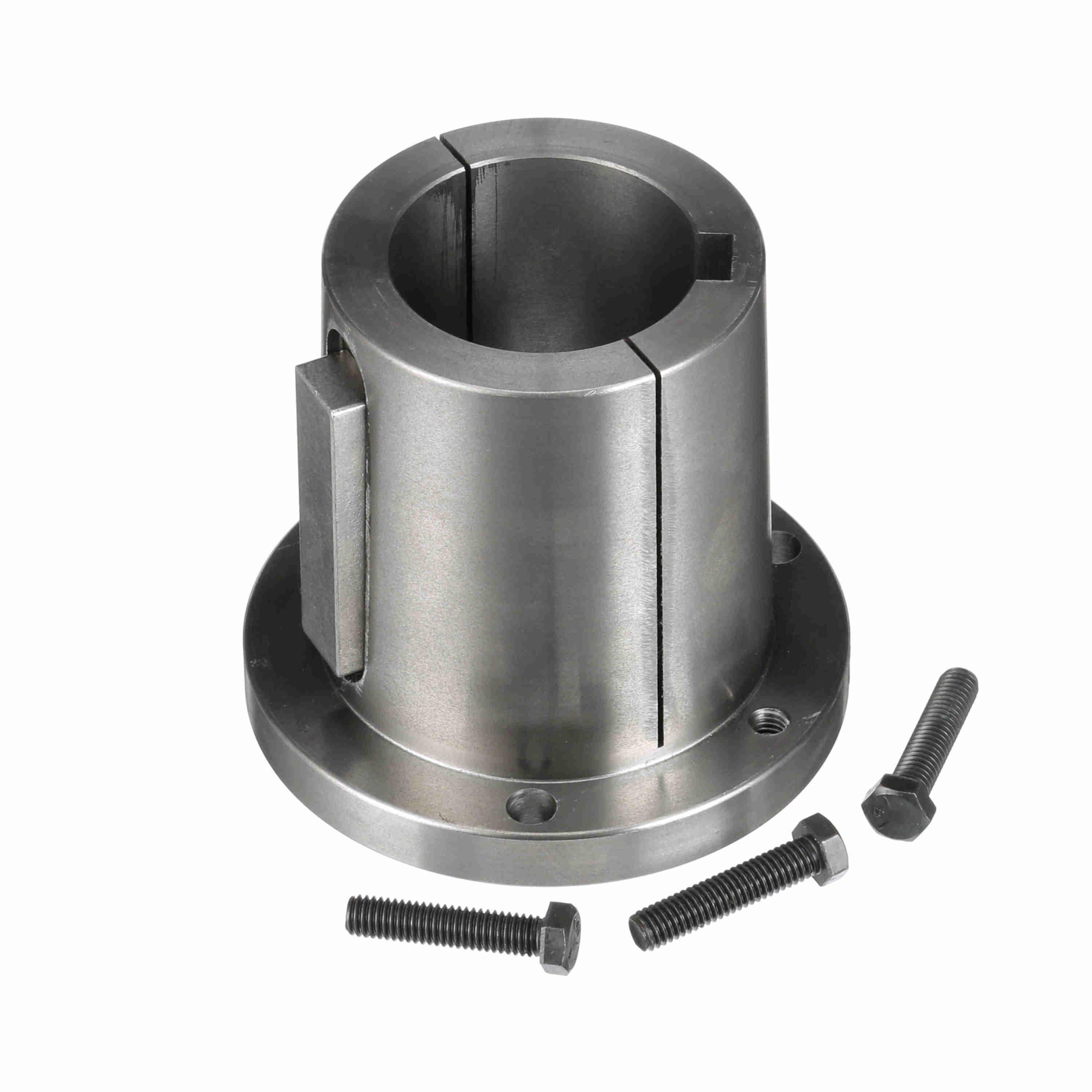

Browning® 1070689 Type R2 Split-Taper Bushing, 2-5/8 in Dia Bore, 3-3/4 in Dia Small End/4 in Dia Large End Dia Barrel, 5-3/8 in Dia Flange, 4-7/8 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289251001
-
Manufacturer Part Number1070689
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter5-3/8 in
-
Flange Thickness5/8 in
-
TypeType R2
-
Screw Size3/8 x 1-3/4 in
-
Number of Bolt Holes3
-
Barrel Diameter3-3/4 in Dia Small End/4 in Dia Large End
-
Bolt Circle Diameter4-5/8 in
-
Bore Diameter2-5/8 in
-
Overall Length4-7/8 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Browning 358 Notched Belts are constructed of EPDM material wrapped top and botttom, increased operating temperature range of -60F to 250F degrees
- More horsepower in less space - Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts
- This enables you to reduce drive cost
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberR2 2 5/8
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
