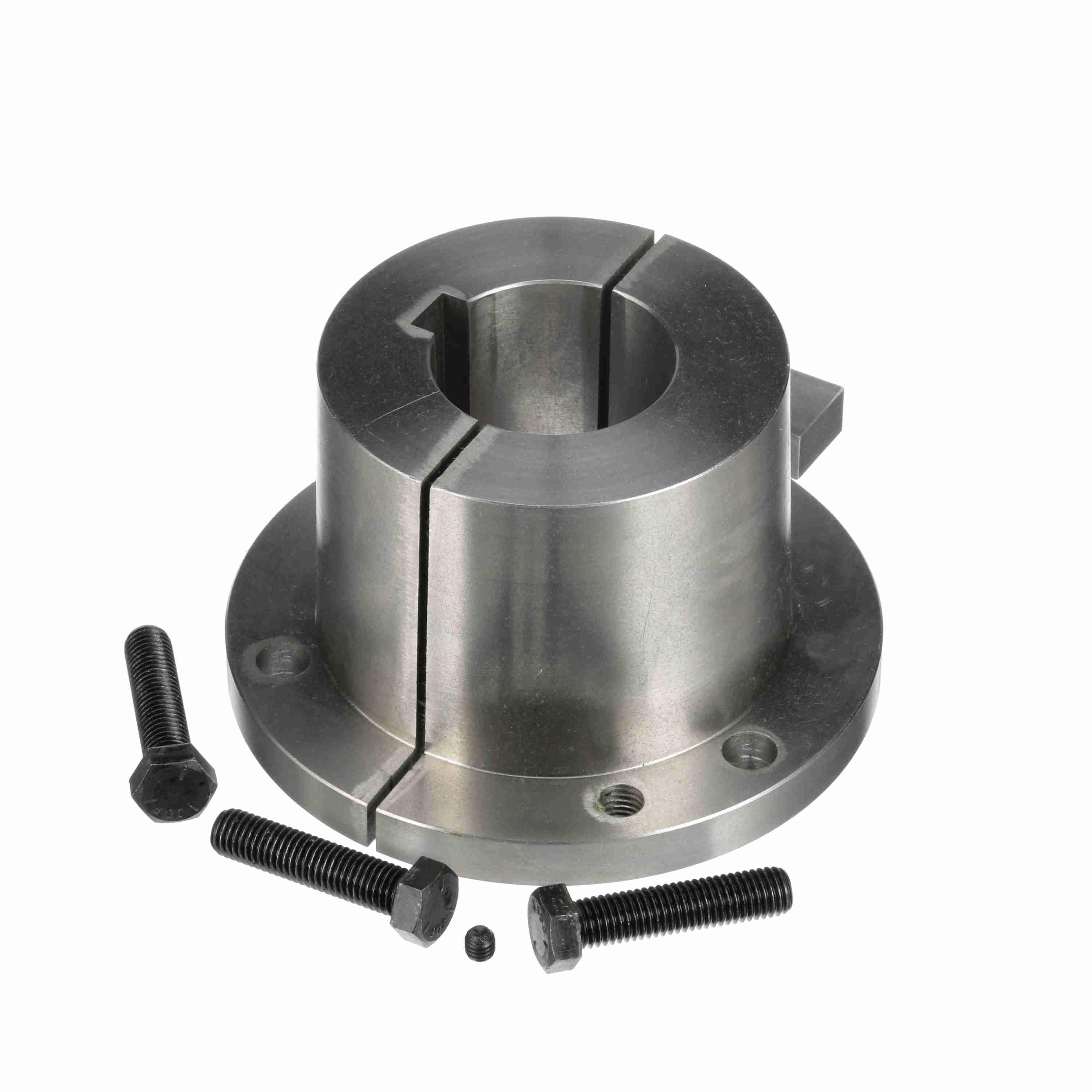

Browning® 1071315 Type U0 Split-Taper Bushing, 2-15/16 in Dia Bore, 5.766 in Dia Small End/6 in Dia Large End Dia Barrel, 8-3/8 in Dia Flange, 5-1/4 in OAL, Cast Iron
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289161911
-
Manufacturer Part Number1071315
-
CountryUSA
-
MaterialCast Iron
-
Flange Diameter8-3/8 in
-
Flange Thickness1.063 in
-
TypeType U0
-
Screw Size5/8 x 2-3/4 in
-
Number of Bolt Holes3
-
Barrel Diameter5.766 in Dia Small End/6 in Dia Large End
-
Bolt Circle Diameter7 in
-
Bore Diameter2-15/16 in
-
Overall Length5-1/4 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- 3/4 in/ft taper on barrel, Self-locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberU0 2 15/16
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
