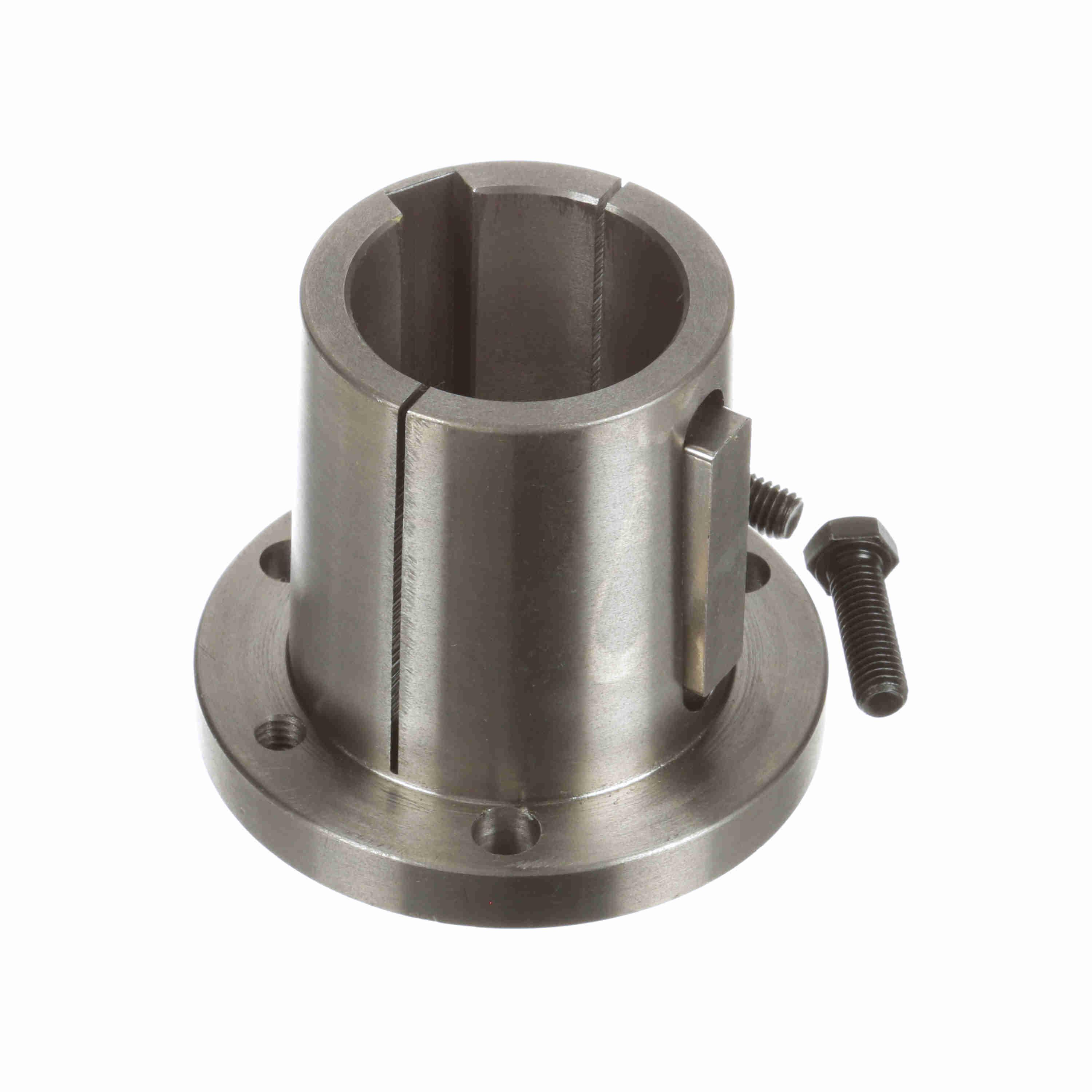

Browning® 1079359 Type Q2 Split-Taper Bushing, 2-1/16 in Dia Bore, 2.703 in Dia Small End/2-7/8 in Dia Large End Dia Barrel, 4-1/8 in Dia Flange, 3-1/2 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289300174
-
Manufacturer Part Number1079359
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter4-1/8 in
-
Flange Thickness0.531 in
-
TypeType Q2
-
Screw Size3/8 x 1-1/4 in
-
Number of Bolt Holes3
-
Barrel Diameter2.703 in Dia Small End/2-7/8 in Dia Large End
-
Bolt Circle Diameter3-3/8 in
-
Bore Diameter2-1/16 in
-
Overall Length3-1/2 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberQ2 2 1/16
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
