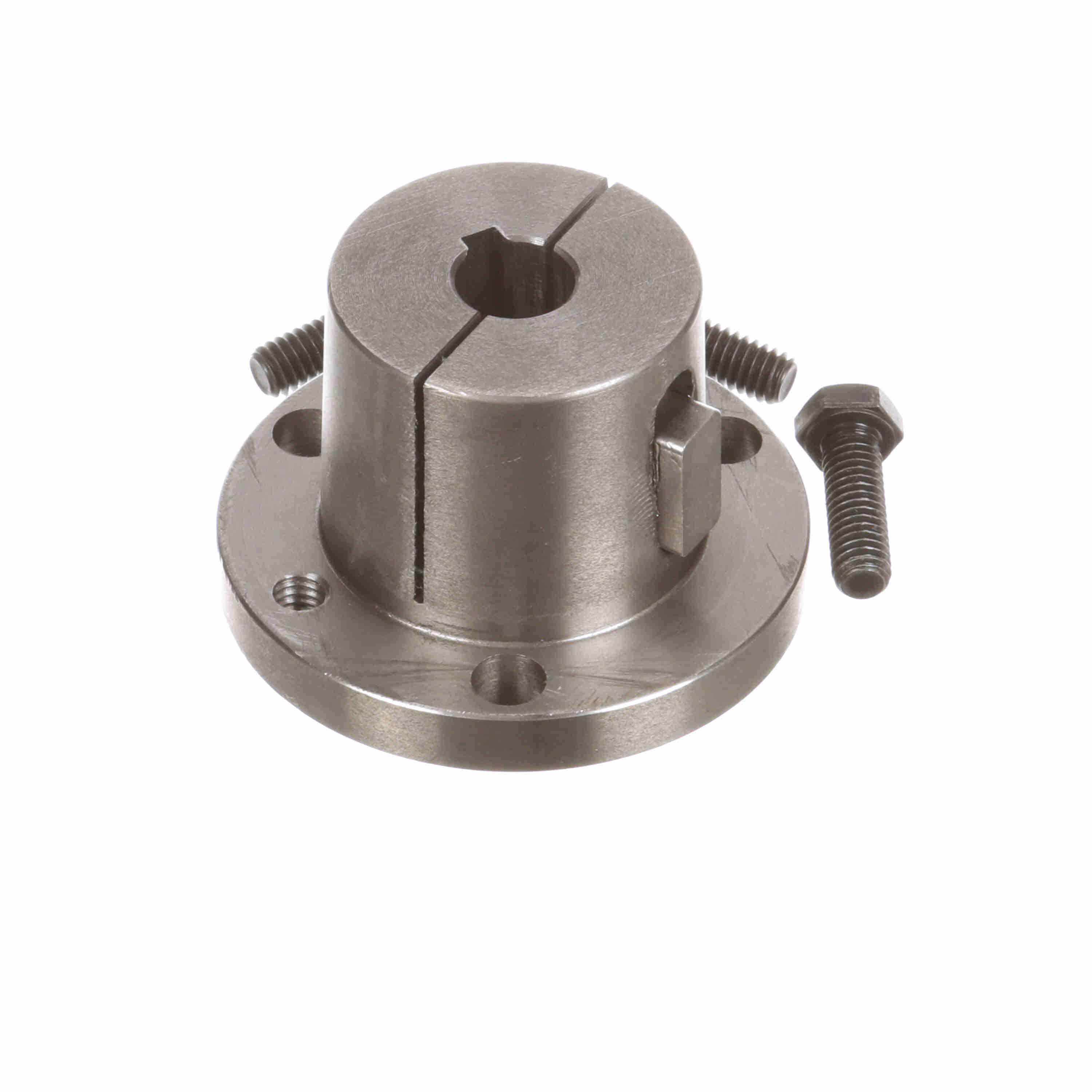

Browning® 1069772 Type P1 Split-Taper Bushing, 15 mm Dia Bore, 1.856 in Dia Small End/1.938 in Dia Large End Dia Barrel, 3 in Dia Flange, 1.938 in OAL, Ductile Iron or Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289351619
-
Manufacturer Part Number1069772
-
CountryUSA
-
MaterialDuctile Iron or Sintered Steel
-
Flange Diameter3 in
-
Flange Thickness3/8 in
-
TypeType P1
-
Screw Size5/16 x 1 in
-
Number of Bolt Holes3
-
Barrel Diameter1.856 in Dia Small End/1.938 in Dia Large End
-
Bolt Circle Diameter2.438 in
-
Bore Diameter15 mm
-
Overall Length1.938 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberP1 15 MM
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Warranty Information
