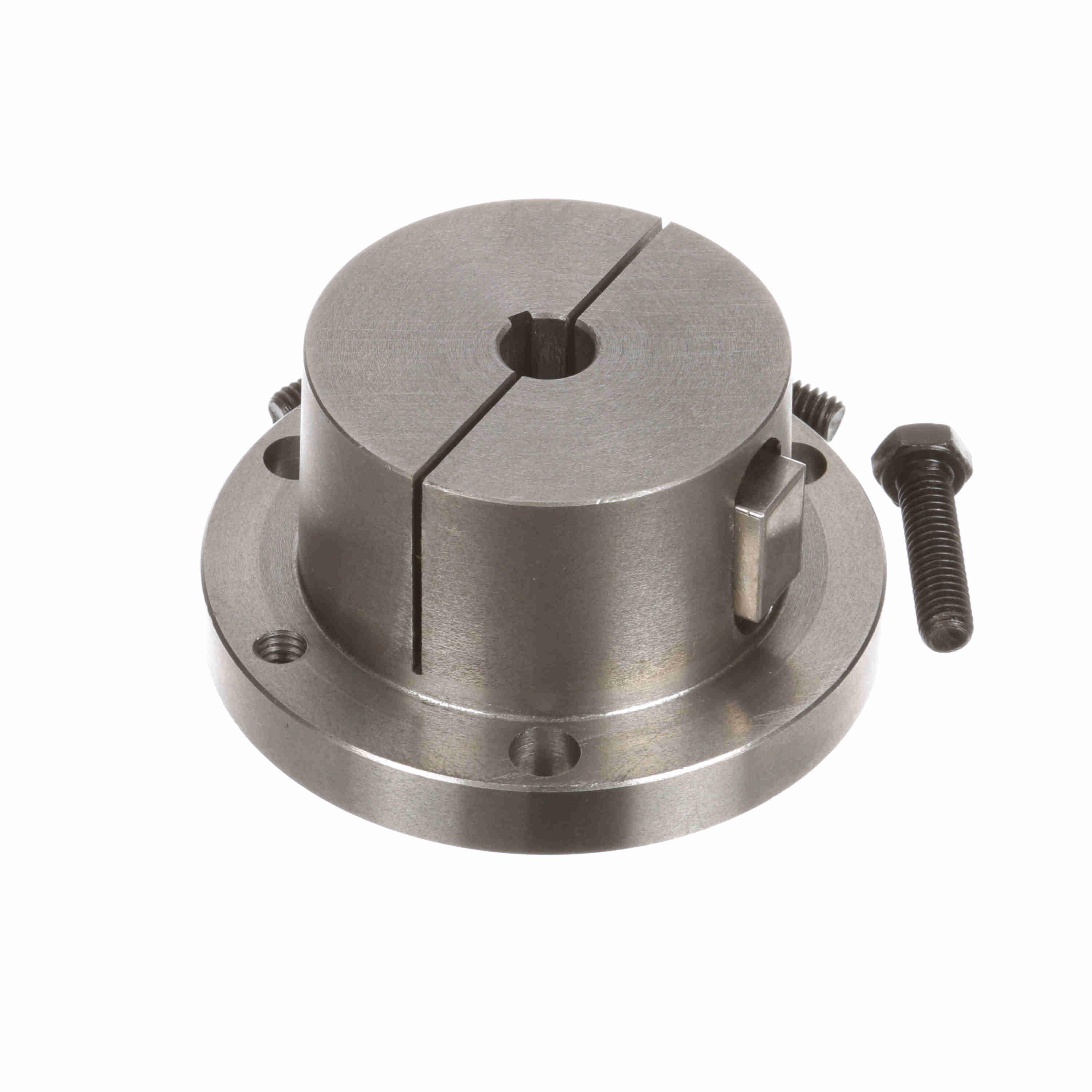

Browning® 3808813 Type B Split-Taper Bushing, 1/2 in Dia Bore, 2.557 in Dia Small End/2-5/8 in Dia Large End Dia Barrel, 3.688 in Dia Flange, 1.938 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289722938
-
Manufacturer Part Number3808813
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter3.688 in
-
Flange Thickness1/2 in
-
TypeType B
-
Screw Size5/16 x 1-1/4 in
-
Number of Bolt Holes3
-
Barrel Diameter2.557 in Dia Small End/2-5/8 in Dia Large End
-
Keyway Size1/8 x 1/16 in
-
Bolt Circle Diameter3-1/8 in
-
Bore Diameter1/2 in
-
Overall Length1.938 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberB 1/2
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
