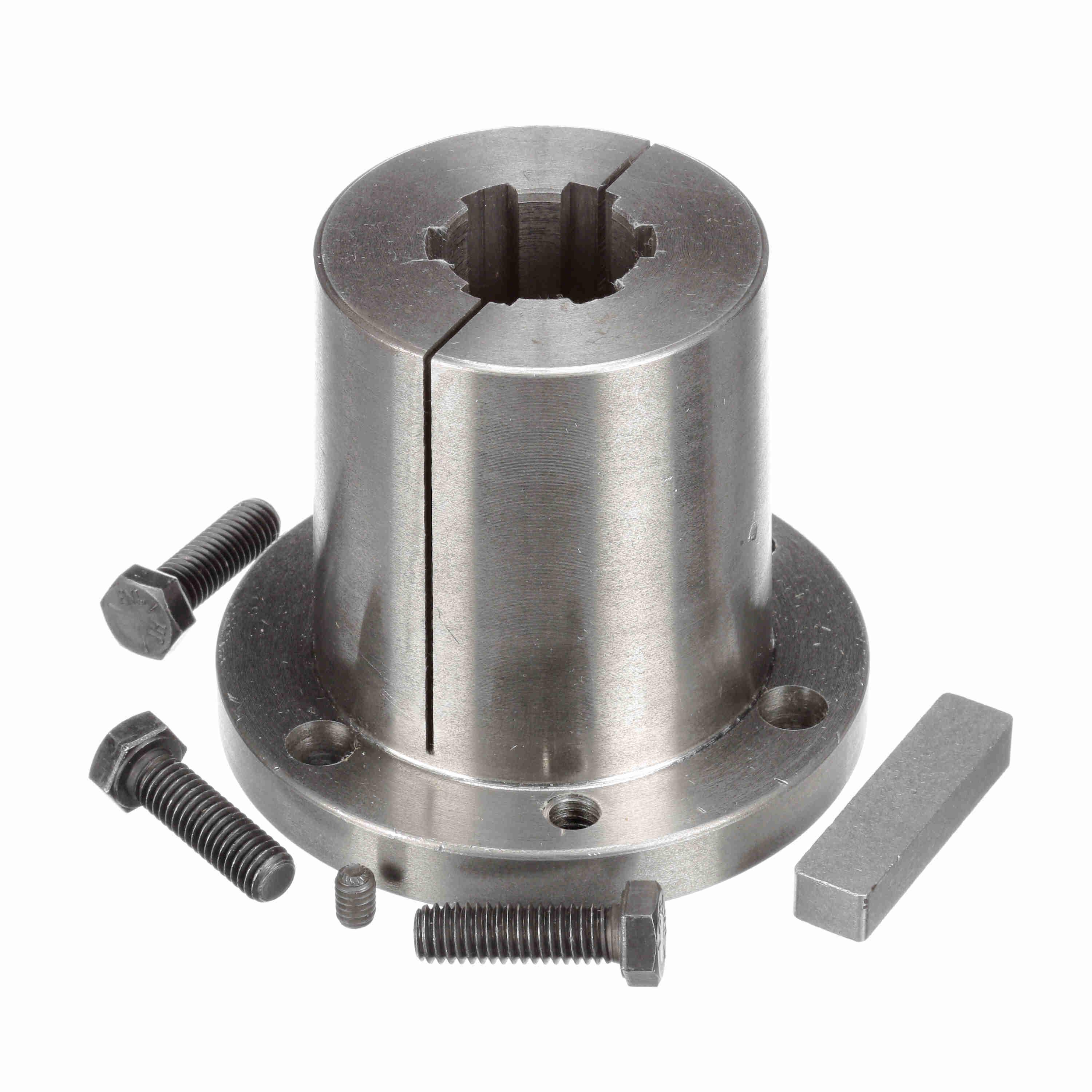

Browning® 1078625 Type H Split-Taper Bushing, 1-1/8 in Dia Bore, 1.571 in Dia Small End/1-5/8 in Dia Large End Dia Barrel, 2-1/2 in Dia Flange, 1-1/4 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289183739
-
Manufacturer Part Number1078625
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter2-1/2 in
-
Flange Thickness1/4 in
-
TypeType H
-
Screw Size1/4 x 3/4 in
-
Number of Bolt Holes2
-
Barrel Diameter1.571 in Dia Small End/1-5/8 in Dia Large End
-
Bolt Circle Diameter2 in
-
Bore Diameter1-1/8 in
-
Overall Length1-1/4 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- Exclusive Taper Bushing, Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
- Standard Bearings - Commercially available Tapered Roller Bearings provide maximum overhung load capacity
-
Alternative Part NumberH 1 1/8 6 SPL B
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
