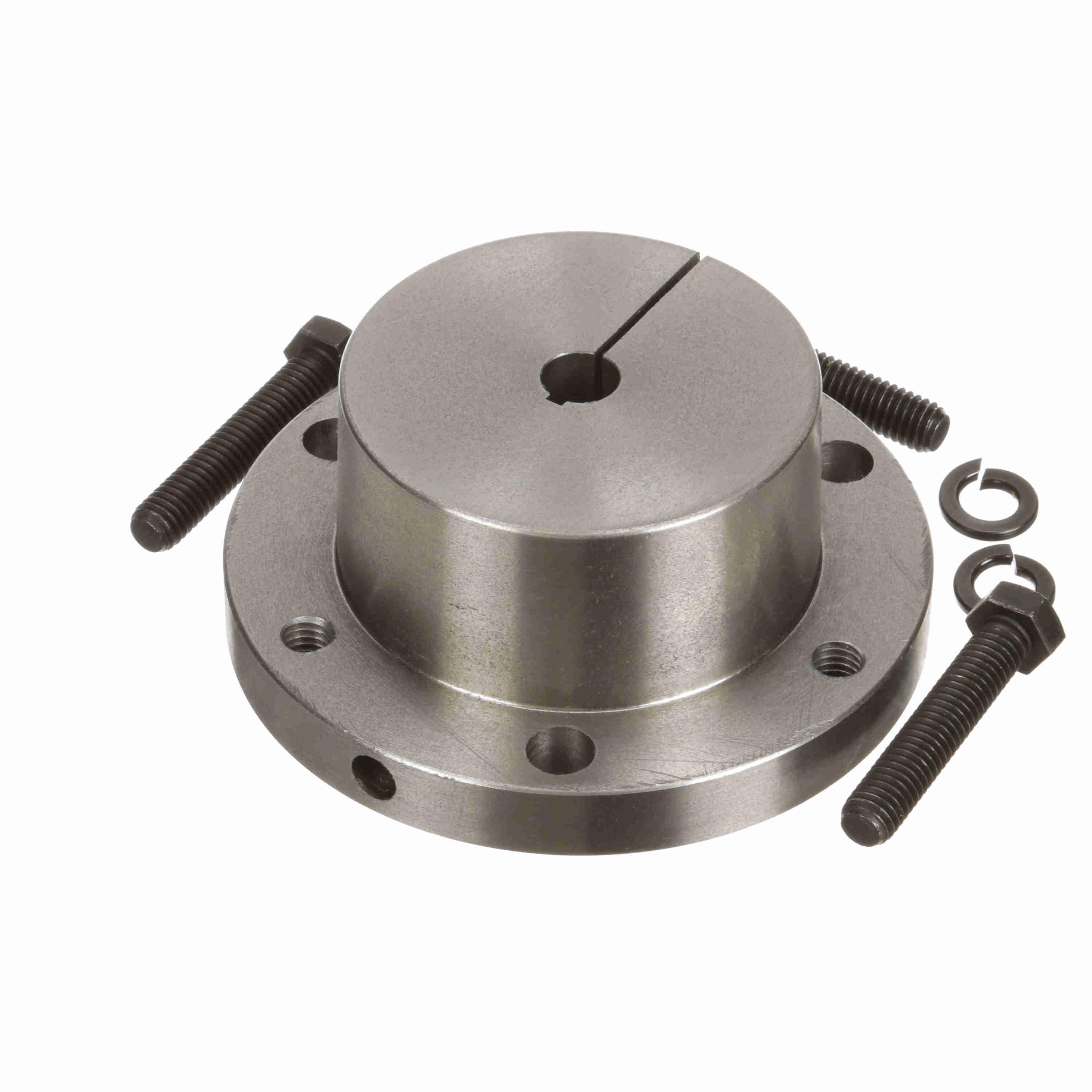

Browning® 1077106 QD Bushing, 1/2 in Dia Bore, 3-1/8 in Dia Barrel, 4-5/8 in Dia Flange, 1.995 in OAL, Ductile Iron
Boston Gear® comprehensive selection of flanged bearings includes spherical bearings with extended inner races featuring setscrews or eccentric locking collars in stamped steel, ductile iron, cast iron or stainless housings. Positive locking by setscrews or an eccentric locking collar ensures smooth operation and a synthetic lip-type seal with steel flingers offer enhanced seal effectiveness.
-
BrandBrowning®
-
UPC662289385003
-
Manufacturer Part Number1077106
-
CountryUSA
-
Load Capacity340 lb
-
Locking DeviceSet Screw
-
Temperature Rating225 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt
-
Maximum Speed5000 rpm
-
TypeStandard-Duty
-
Seal MaterialSynthetic
-
SeriesSF Series
-
Bearing MaterialCast Iron
-
Bolt Center-to-Center Length2-1/8 in
-
Bore Diameter1/2 in
-
Overall Depth1-17/64 in
-
Overall Height2-7/8 in
-
Overall Length/Diameter2-7/8 in
-
MaterialDuctile Iron
-
Flange Diameter4-5/8 in
-
Flange Thickness9/16 in
-
Torque Rating11000 in-lb
-
Screw Size3/8-16 x 2 in
-
Number of Bolt Holes3
-
Barrel Diameter3-1/8 in
-
Keyway Size1/8 x 1/16 in
-
Bolt Circle Diameter3-7/8 in
-
Overall Length1.995 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 1/4-28 threaded grease fitting and channel through outer race allow relubrication
-
Alternative Part NumberSF 1/2
-
UNSPSC31171516
-
Standards/ApprovalsPROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Warranty1 Year
-
Package DescriptionEACH
-
