Boston_Gear_SH1
Browning_1077528

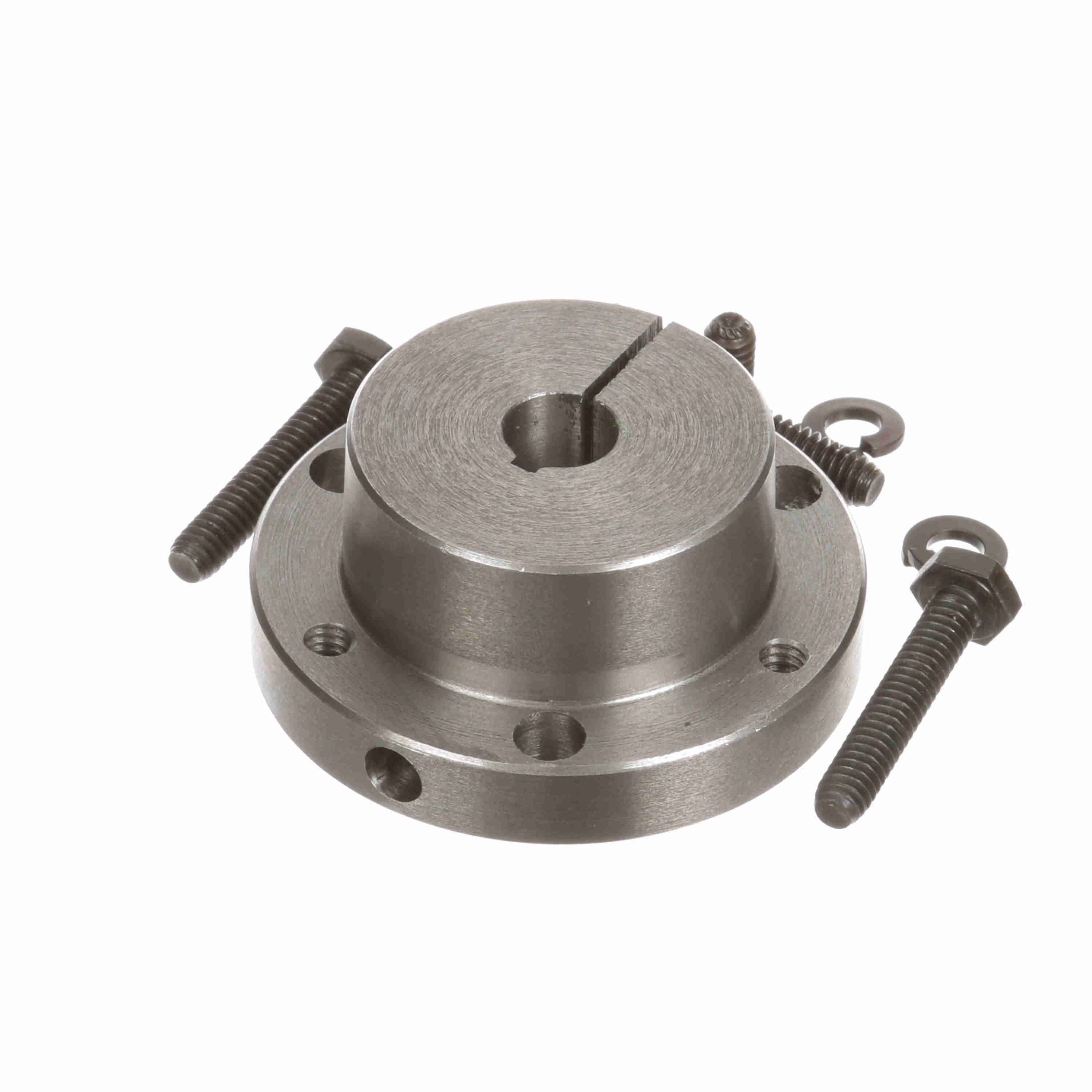

Browning® 1077528 QD Bushing, 1/2 in Dia Bore, 1-7/8 in Dia Barrel, 2-11/16 in Dia Flange, 1.2 in OAL, Ductile Iron

0 Ratings
$29.03
In Stock
SKU: BRWSH1/2
noimage_new

Boston Gear® offers a comprehensive selection of pillow blocks that include spherical bearings with extended inner races with setscrews or eccentric locking collars in stamped steel, ductile iron, cast iron or stainless housings. Ranging from light duty, plain bearing blocks to precision units, they all feature Boston Gear® tradition of design excellence and precision manufacturing.

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Back to: QD Bushings
Main specs
  • Brand
    Browning®
  • UPC
    662289365449
  • Manufacturer Part Number
    1077528
  • Country
    USA
Specification
  • Load Capacity
    340 lb
  • Locking Device
    Set Screw
  • Temperature Rating
    -30 to 300 deg F
  • Finish
    Uncoated
  • Material
    Ductile Iron
  • Maximum Speed
    5000 rpm
  • Type
    High Backing Standard-Duty
  • Mounting Type
    Two-Bolt Base
  • Seal Type
    Synthetic Lip
  • Series
    SH Series
  • Base Width
    1-1/2 in
  • Base to Bore Centerline
    1-3/16 in
  • Bolt Center-to-Center Length
    3-5/16 to 4 in
  • Bore Diameter
    1/2 in
  • Bore Type
    Round
  • Expansion Type
    Non-Expansion (Fixed)
  • Overall Height
    2-9/32 in
  • Overall Length
    1.2 in
  • Overall Width
    1-3/8 in
  • Flange Diameter
    2-11/16 in
  • Flange Thickness
    7/16 in
  • Torque Rating
    3500 in-lb
  • Screw Size
    1/4-20 x 1-3/8 in
  • Number of Bolt Holes
    3
  • Barrel Diameter
    1-7/8 in
  • Keyway Size
    1/8 x 1/16 in
  • Bolt Circle Diameter
    2-1/4 in
  • Suitable For Use With
    Browning® Sheaves, Sprockets and Pulleys
Features
  • Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
  • 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
  • Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
  • 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
  • Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
  • 1/4-28 threaded grease fitting and channel through outer race allow relubrication
Additional Information
  • Alternative Part Number
    SH 1/2
  • UNSPSC
    31171516
  • Standards/Approvals
    PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
  • Package Description
    EACH
  • Warranty
    1 Year
