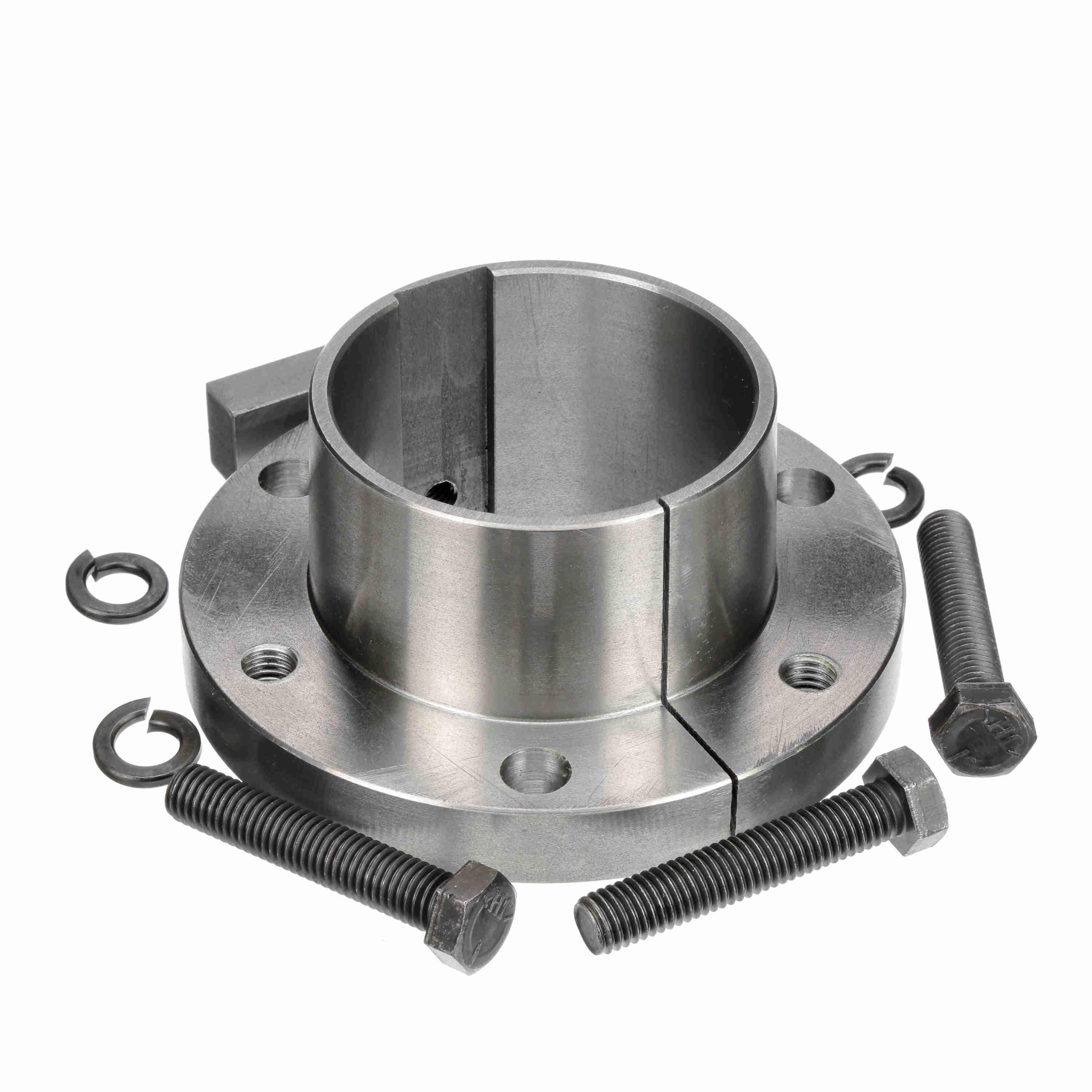

Browning® 1073592 Type E Q-D® Bushing, 3-3/8 in Dia Bore, 3.834 in Dia Barrel, 6 in Dia Flange, 2.64 in OAL, Steel
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
-
BrandBrowning®
-
UPC662289384419
-
Manufacturer Part Number1073592
-
CountryUSA
-
MaterialSteel
-
Flange Diameter6 in
-
Flange Thickness3/4 in
-
Torque Rating20000 in-lb
-
TypeType E
-
Screw Size1/2-13 x 2-3/4 in
-
Number of Bolt Holes3
-
Barrel Diameter3.834 in
-
Keyway Size7/8 x 7/16 in
-
Bolt Circle Diameter5 in
-
Bore Diameter3-3/8 in
-
Overall Length2.64 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Cooler running means longer life
- Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
- Assures less vibration and Smoother , quieter performance
- Notched belts provide higher horsepower than wrapped belts
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
UNSPSC31171516
-
Alternative Part NumberE 3 3/8
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
