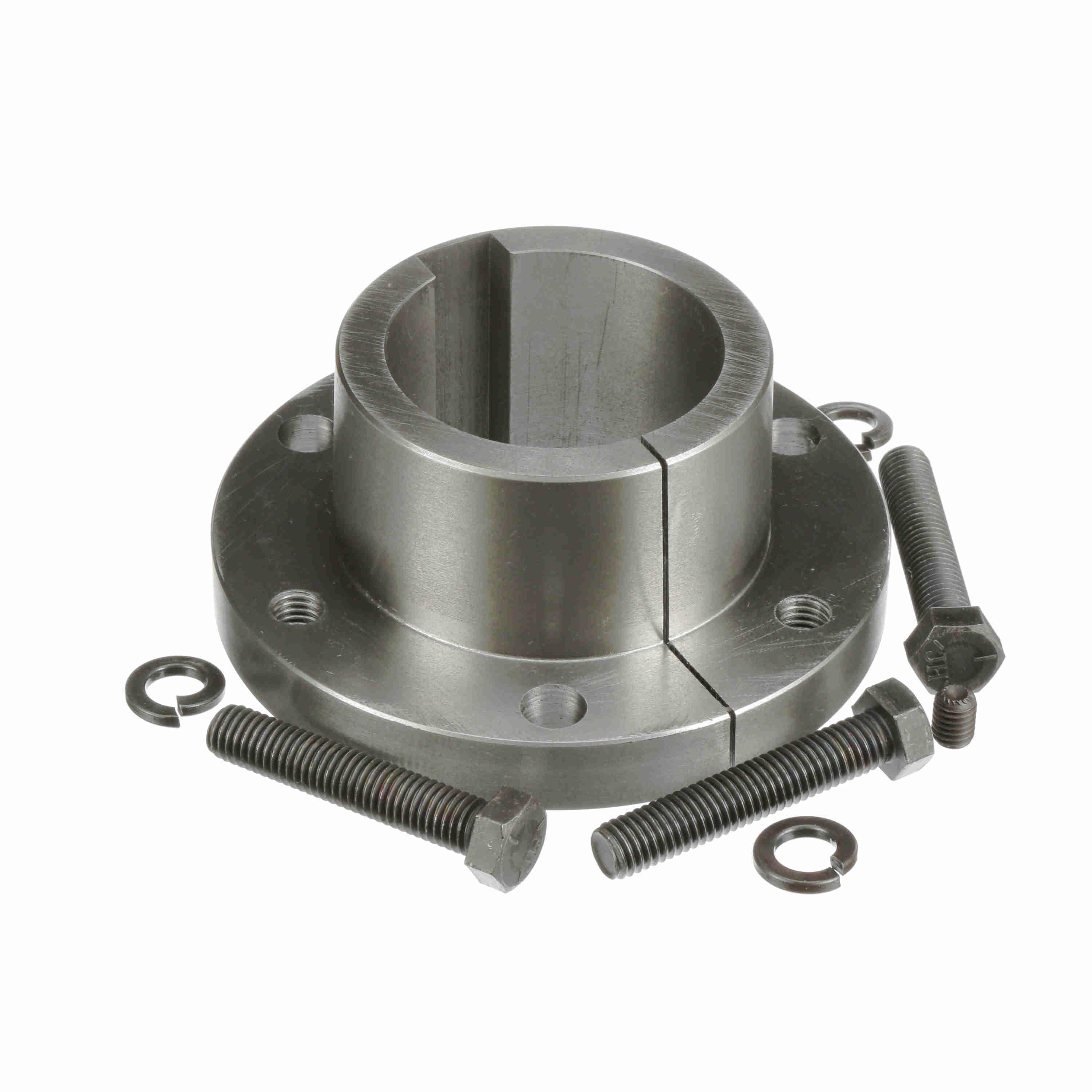

Browning® 1073519 QD Bushing, 2-7/8 in Dia Bore, 3-13/16 in Dia Barrel, 6 in Dia Flange, 2.64 in OAL, Ductile Iron
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
-
BrandBrowning®
-
UPC662289334377
-
Manufacturer Part Number1073519
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter6 in
-
Flange Thickness3/4 in
-
Torque Rating20000 in-lb
-
TypeStandard
-
Screw Size1/2-13 x 2-3/4 in
-
Number of Bolt Holes3
-
Barrel Diameter3-13/16 in
-
Keyway Size3/4 x 3/8 in
-
Bolt Circle Diameter5 in
-
Bore Diameter2-7/8 in
-
Overall Length2.64 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Saw cut through flange and taper to provide a true clamp fit
- Cap screws used to secure bushings to sheave and to remove bushing from sheave
- Permit four-way mounting
- Easy installation and removal
-
UNSPSC31171516
-
Alternative Part NumberE 2 7/8
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
-
Instruction/Installation Manual
