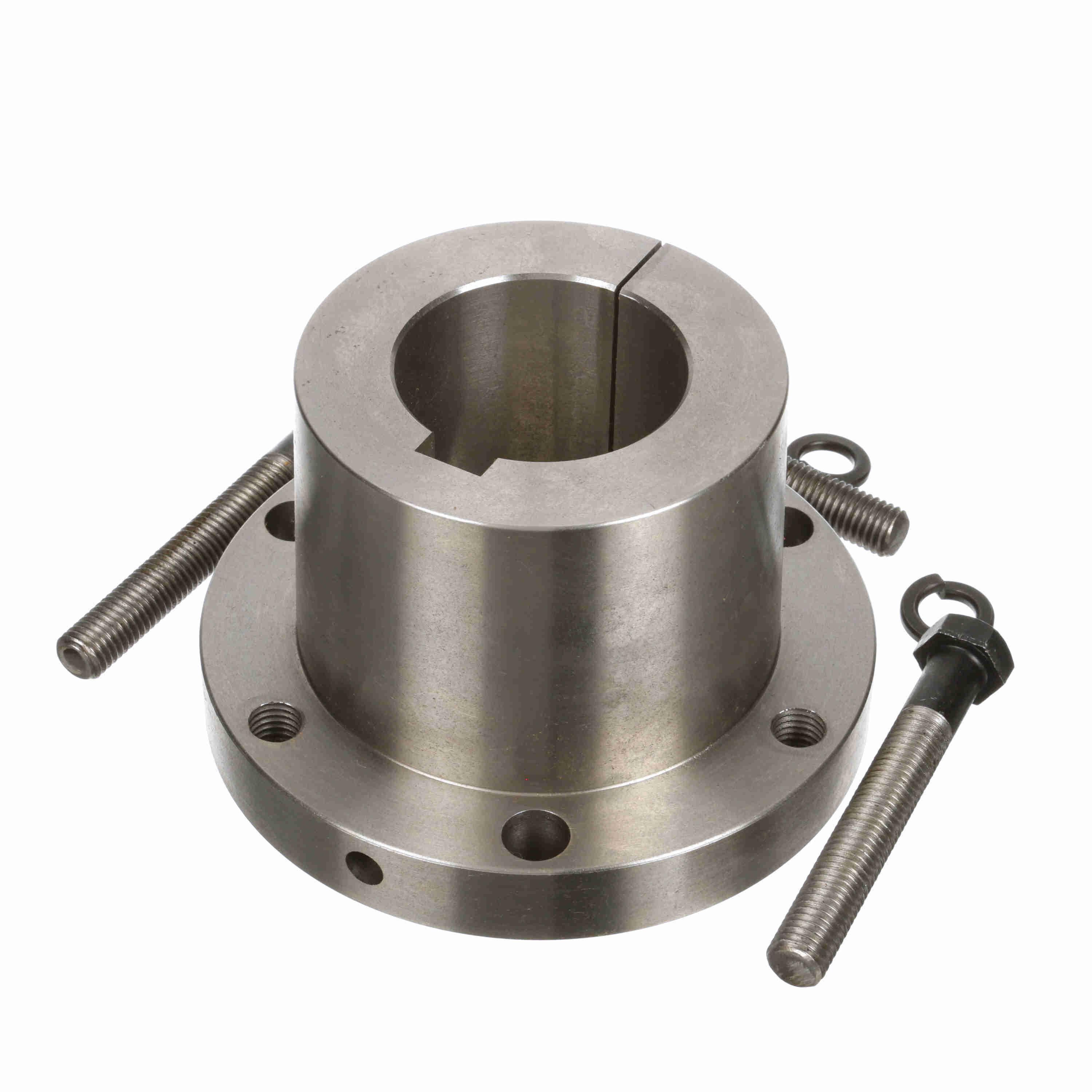

Browning® 1074384 Type J Q-D® Bushing, 2-15/16 in Dia Bore, 5.1484 in Dia Barrel, 7-1/4 in Dia Flange, 4.51 in OAL, Steel
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
-
BrandBrowning®
-
UPC662289350612
-
Manufacturer Part Number1074384
-
CountryUSA
-
MaterialSteel
-
Flange Diameter7-1/4 in
-
Flange Thickness1 in
-
Torque Rating45000 in-lb
-
TypeType J
-
Screw Size5/8-11 x 4-1/2 in
-
Number of Bolt Holes3
-
Barrel Diameter5.1484 in
-
Keyway Size3/4 x 3/8 in
-
Bolt Circle Diameter6-1/4 in
-
Bore Diameter2-15/16 in
-
Overall Length4.51 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Saw cut through flange and taper to provide a true clamp fit
- Cap screws used to secure bushings to sheave and to remove bushing from sheave
- Permit four-way mounting
- Easy installation and removal
-
UNSPSC31171516
-
Alternative Part NumberJ 2 15/16
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
