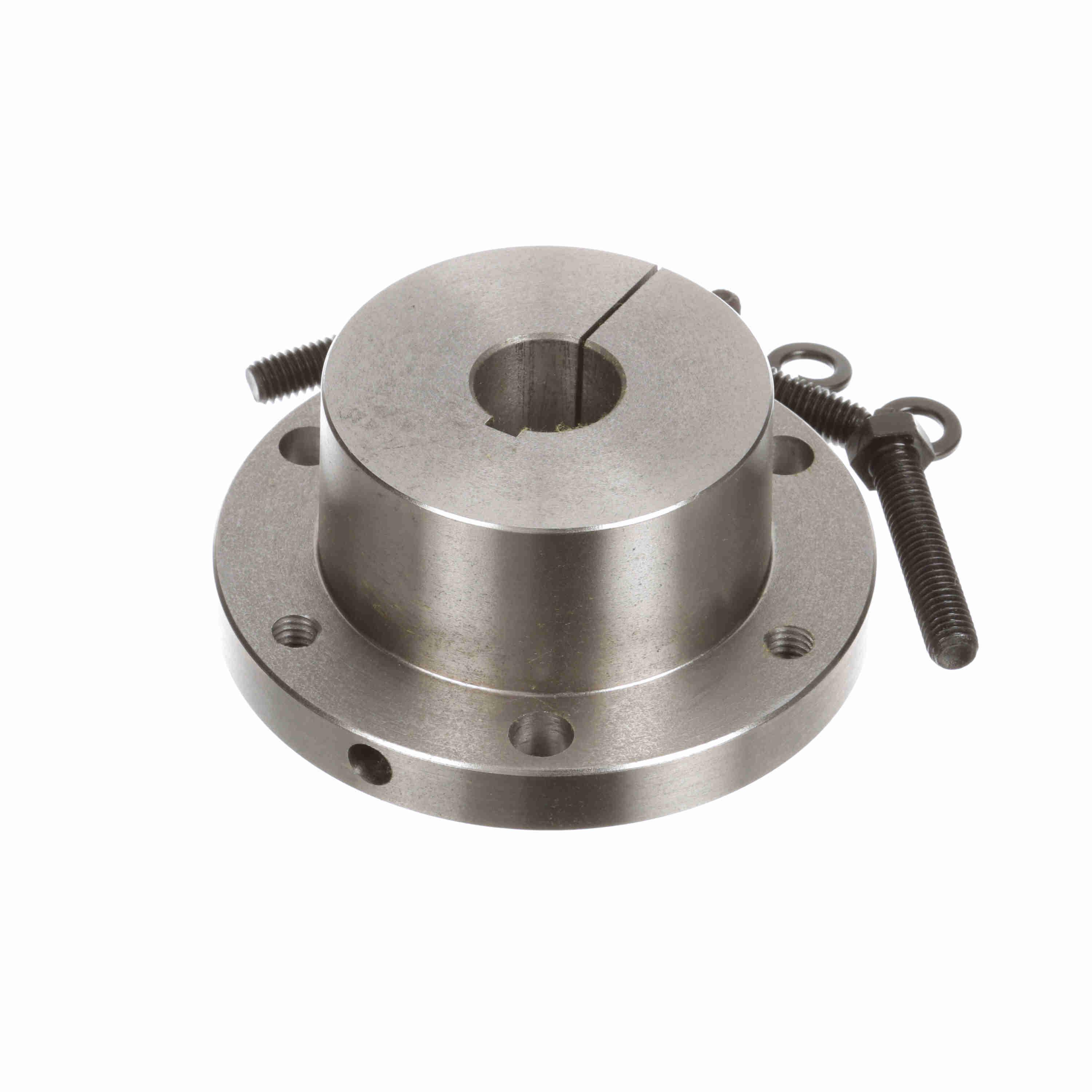

Browning® 1077189 QD Bushing, 1 in Dia Bore, 3-1/8 in Dia Barrel, 4-5/8 in Dia Flange, 1.995 in OAL, Ductile Iron
Browning® 1077189 QD Bushing, 1 in Dia Bore, 3-1/8 in Dia Barrel, 4-5/8 in Dia Flange, 1.995 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289355143
-
Manufacturer Part Number1077189
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter4-5/8 in
-
Flange Thickness9/16 in
-
Torque Rating11000 in-lb
-
Screw Size3/8-16 x 2 in
-
Number of Bolt Holes3
-
Barrel Diameter3-1/8 in
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter3-7/8 in
-
Bore Diameter1 in
-
Overall Length1.995 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
-
Alternative Part NumberSF 1
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
