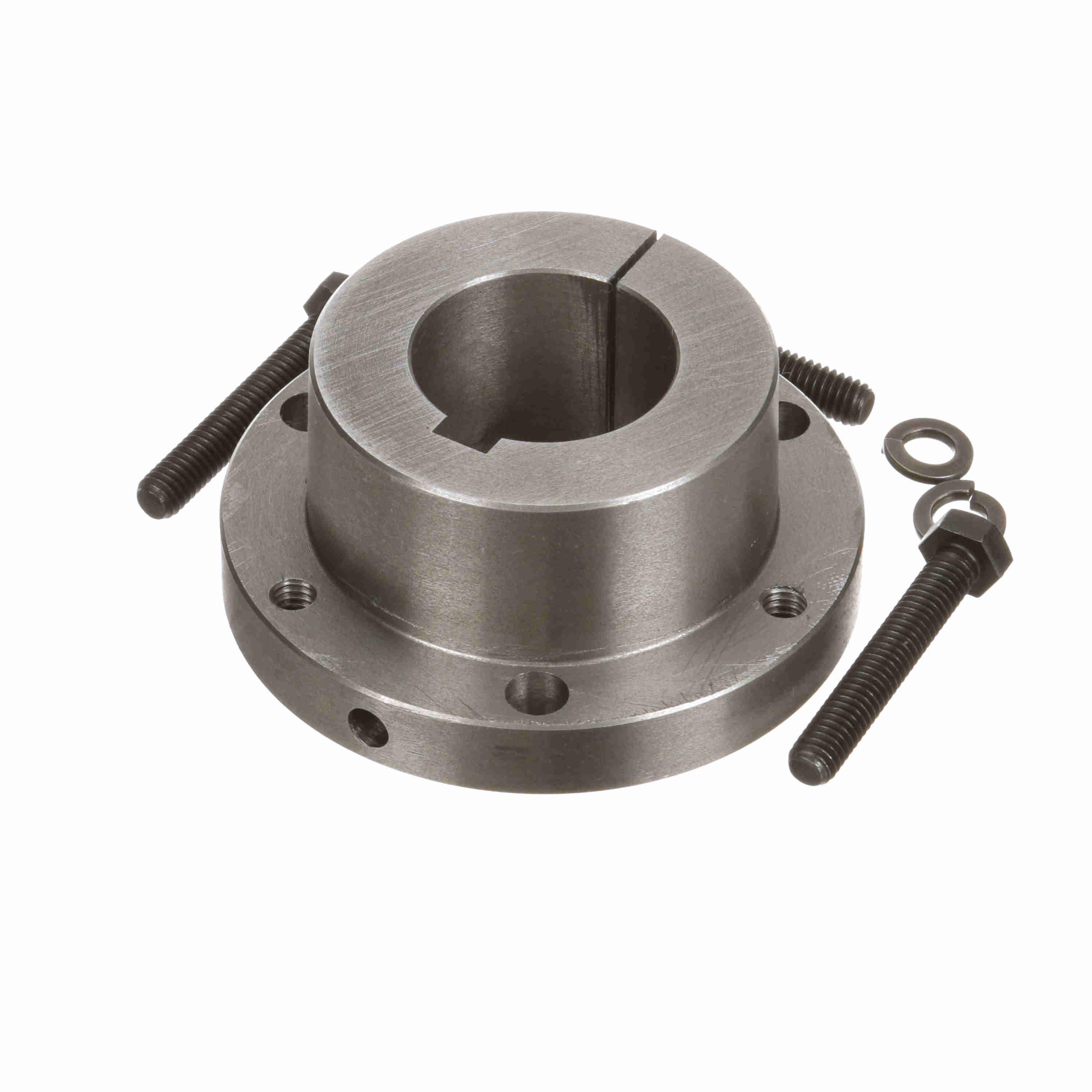

Browning® 1077924 QD Bushing, 1-9/16 in Dia Bore, 2-13/16 in Dia Barrel, 3-7/8 in Dia Flange, 1-3/4 in OAL, Ductile Iron
Browning® 1077924 QD Bushing, 1-9/16 in Dia Bore, 2-13/16 in Dia Barrel, 3-7/8 in Dia Flange, 1-3/4 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289365739
-
Manufacturer Part Number1077924
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter3-7/8 in
-
Flange Thickness9/16 in
-
Torque Rating7000 in-lb
-
Screw Size5/16-18 x 2 in
-
Number of Bolt Holes3
-
Barrel Diameter2-13/16 in
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter3-5/16 in
-
Bore Diameter1-9/16 in
-
Overall Length1-3/4 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Self locking taper provides the highest degree of mechanical locking product to product
- Conventional mounting
- Single adjusting drive tightener, tightener shaft must be ordered separately
- No shaft required when used with Idler Bushing
- Malleable iron
-
Alternative Part NumberSK 1 9/16
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
