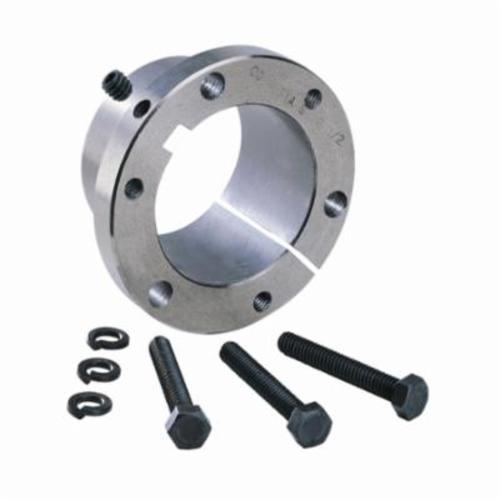

Dodge® 120427 QD Bushing, 1-3/8 in Dia Bore, 2.81 in Dia Barrel, 3-7/8 in Dia Flange, 1.88 in OAL, Ductile Iron
Dodge® 120427 QD Bushing, 1-3/8 in Dia Bore, 2.81 in Dia Barrel, 3-7/8 in Dia Flange, 1.88 in OAL, Ductile Iron
-
BrandDodge®
-
UPC782475100910
-
Manufacturer Part Number120427
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter3-7/8 in
-
Flange Thickness1/2 in
-
Torque Rating7000 in-lb
-
Screw Size5/16-18 x 2 in
-
Number of Bolt Holes3
-
Hub Diameter4-3/4 in
-
Barrel Diameter2.81 in
-
Keyway Size5/16 x 5/32 in
-
Bolt Circle Diameter3-5/16 in
-
Bore Diameter1-3/8 in
-
Overall Length1.88 in
- Size SK bushing
- Flanged design
- 4 deg angled taper
- Easy On/Off operation
- Manufactured precisely to industry standards
-
Alternative Part NumberSK X 1-3/8-KW
-
UNSPSC31171605
-
Catalog
-
Specification Sheet
