Browning 1-3/8"-ID QD SK-STYLE BUSHINGS BRW SK-1-3/8-5/16

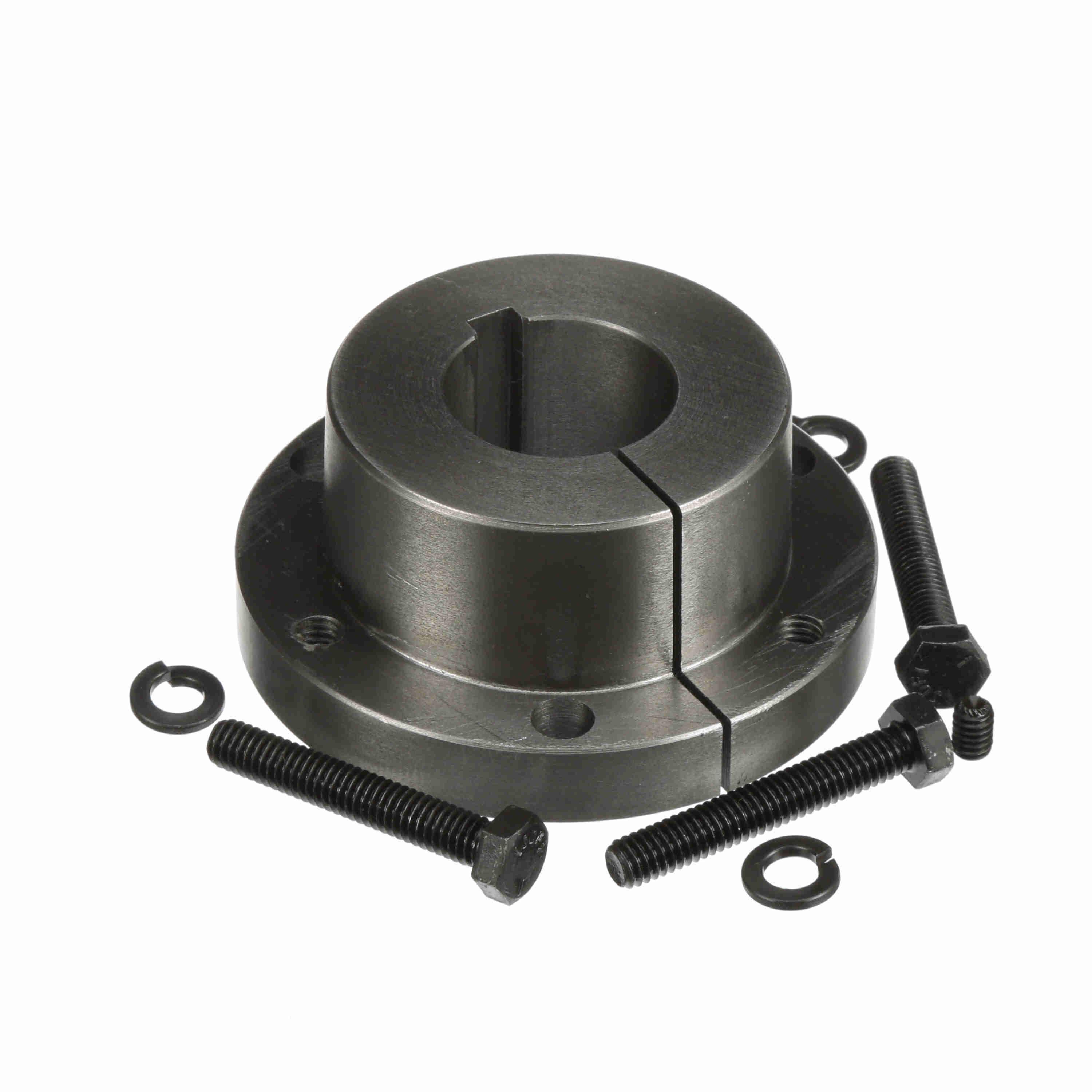

Browning® 1077882 QD Bushing, 1-3/8 in Dia Bore, 2-13/16 in Dia Barrel, 3-7/8 in Dia Flange, 1-3/4 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289321339
-
Manufacturer Part Number1077882
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter3-7/8 in
-
Flange Thickness9/16 in
-
Torque Rating7000 in-lb
-
Screw Size5/16-18 x 2 in
-
Number of Bolt Holes3
-
Barrel Diameter2-13/16 in
-
Keyway Size5/16 x 5/32 in
-
Bolt Circle Diameter3-5/16 in
-
Bore Diameter1-3/8 in
-
Overall Length1-3/4 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
-
Alternative Part NumberSK 1 3/8 5/16
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
