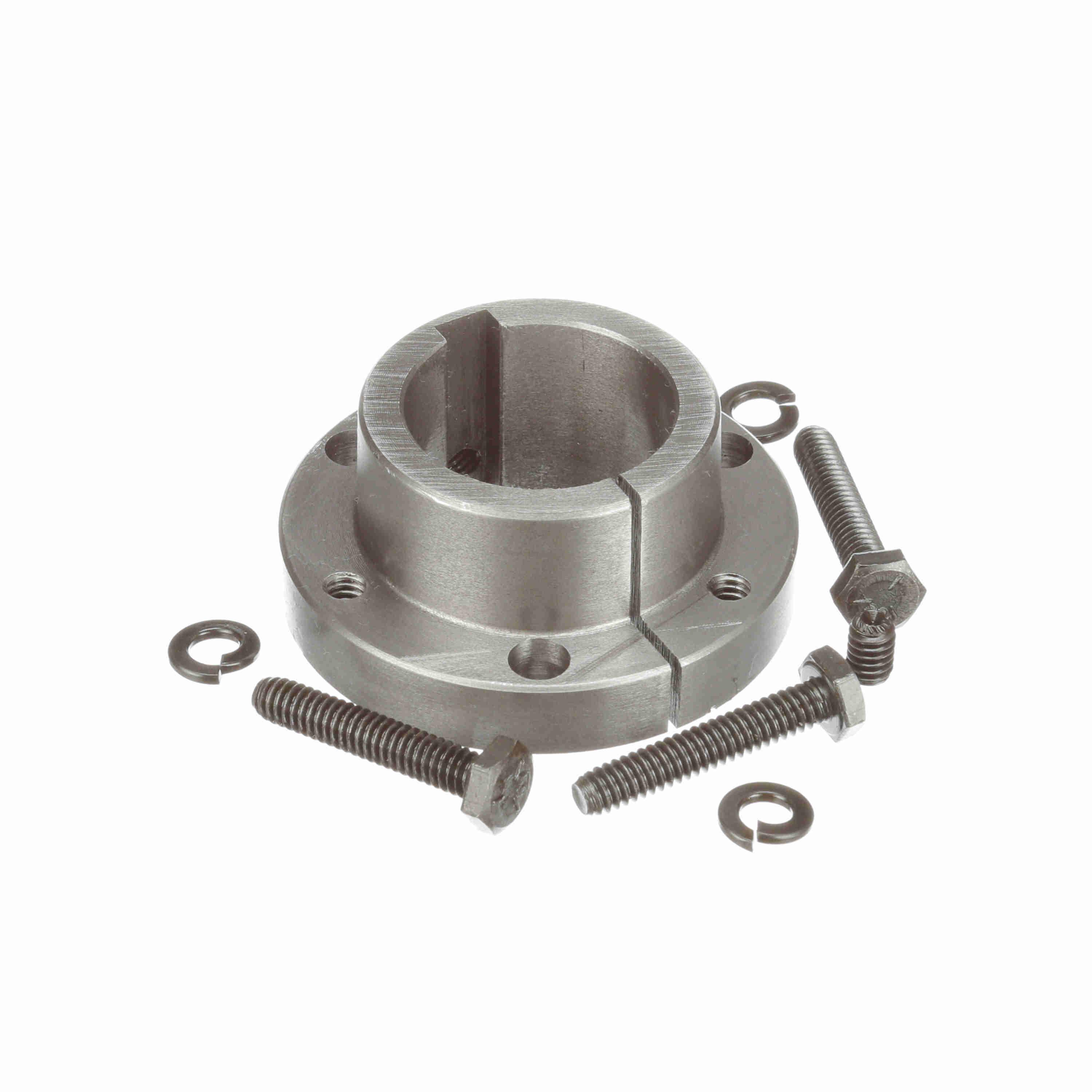

Browning® 1077676 QD Bushing, 1-3/8 in Dia Bore, 1-7/8 in Dia Barrel, 2-11/16 in Dia Flange, 1.2 in OAL, Ductile Iron
Browning® 1077676 QD Bushing, 1-3/8 in Dia Bore, 1-7/8 in Dia Barrel, 2-11/16 in Dia Flange, 1.2 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289375523
-
Manufacturer Part Number1077676
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter2-11/16 in
-
Flange Thickness7/16 in
-
Torque Rating3500 in-lb
-
Screw Size1/4-20 x 1-3/8 in
-
Number of Bolt Holes3
-
Barrel Diameter1-7/8 in
-
Keyway Size5/16 x 5/32 in
-
Bolt Circle Diameter2-1/4 in
-
Bore Diameter1-3/8 in
-
Overall Length1.2 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
-
Alternative Part NumberSH 1 3/8 5/16
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
