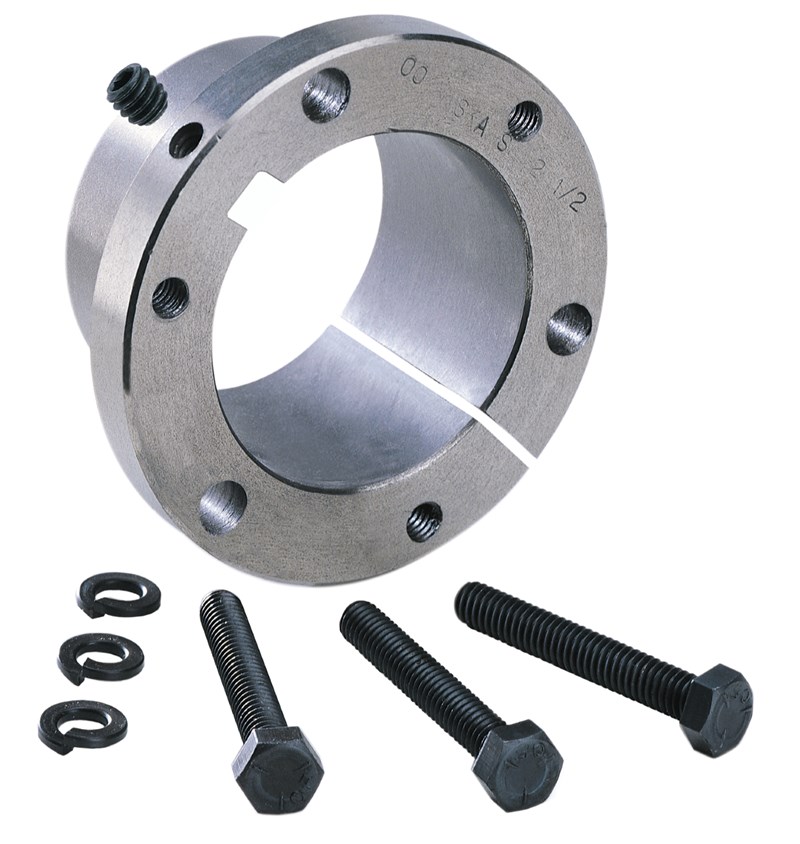

Dodge® SDSX1-3/4 Type SDS QD Bushing, 1-3/4 in Dia Bore, 2-3/16 in Dia Barrel, 3-3/16 in Dia Flange, 1-5/16 in OAL, Ductile Iron
Dodge® QD® bushings have a flanged design and feature a 4 deg taper with conventional or reverse mounting. They are stocked in popular finished bore sizes and minimum plain bore for custom reboring.
-
BrandDodge®
-
UPC775829033101
-
Manufacturer Part NumberSDSX1-3/4
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter3-3/16 in
-
Flange Thickness7/16 in
-
Torque Rating5000 in-lb
-
TypeType SDS
-
Screw Size(3) 1/4 x 1-3/8 in NC Cap Screw/1/4-20 UNC x 1/4 in Set Screw
-
Barrel Diameter2-3/16 in
-
Bolt Circle Diameter2-11/16 in
-
Bore Diameter1-3/4 in
-
Overall Length1-5/16 in
-
Number of Bolt Holes3
-
Hub Diameter4-3/4 in
-
Keyway Size3/8 x 1/8 in
- All bushings up to sizes M, and those with a shallow keyseat, are manufactured in ductile iron, a stronger material offering numerous advantages
- All sizes have a set screw over the keyway to secure the key which is advantageous in vertical applications
- 1-5/16 in W
- Easy On/Off operation
- Manufactured precisely to industry standards
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA|AGMA|ATEX|BSA|CEMA|EASA|MHI|MPTA|NEMA|NSSSGA|PTDA|RoHS Compliant|SME|SWE|TUV Certified
-
Alternative Part NumberSDS X 1-3/4-KW
-
WarrantyLimited
-
Specification Sheet
-
Catalog
-
Warranty Information
