Browning 1-11/16"-ID QD SD-STYLE BUSHINGS BRW SD-1-11/16

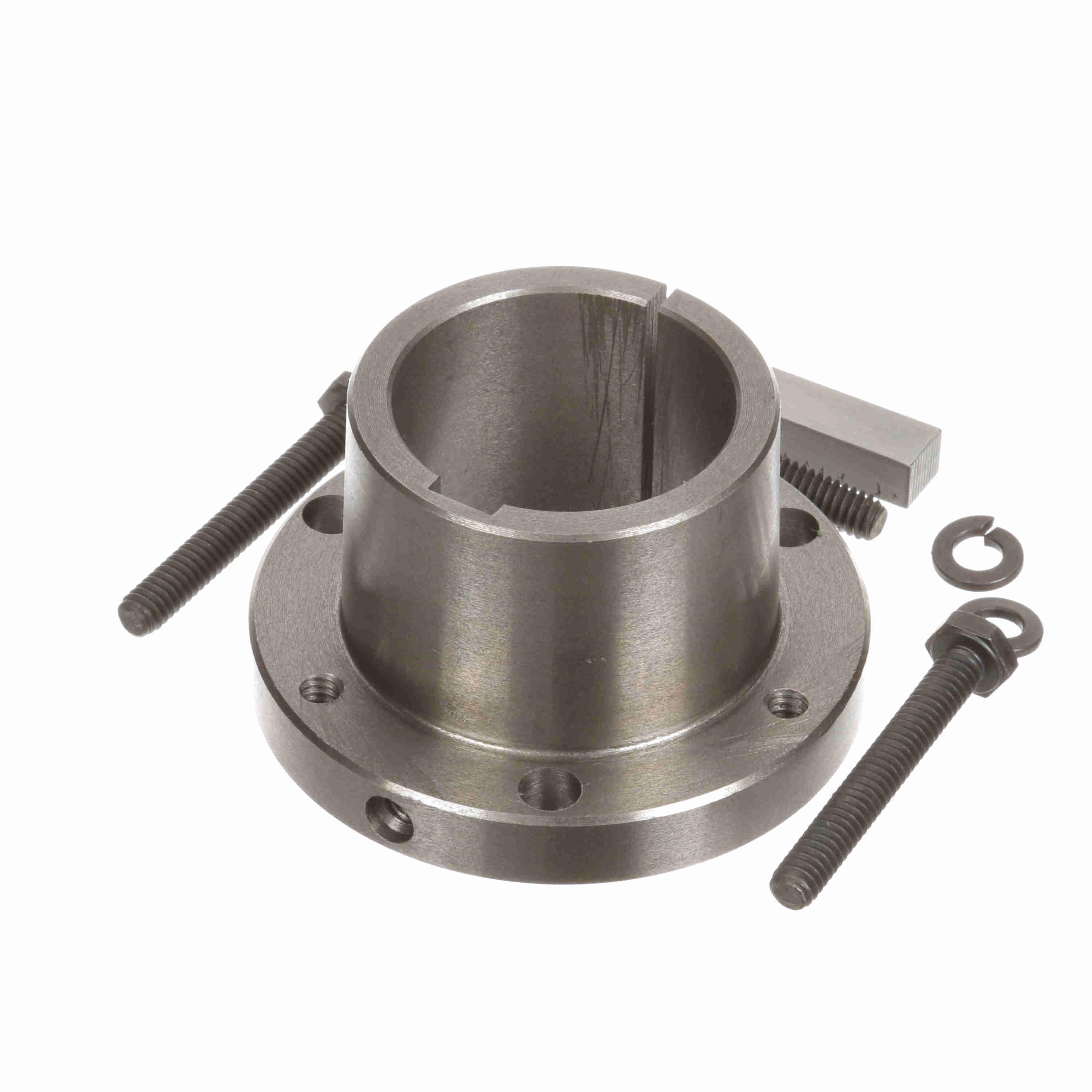

Browning® 1076777 QD Bushing, 1-11/16 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.83 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289404728
-
Manufacturer Part Number1076777
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter3-1/8 in
-
Flange Thickness7/16 in
-
Torque Rating5000 in-lb
-
Screw Size1/4-20 x 1-7/8 in
-
Number of Bolt Holes3
-
Barrel Diameter2-3/16 in
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter2-11/16 in
-
Bore Diameter1-11/16 in
-
Overall Length1.83 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
-
Alternative Part NumberSD 1 11/16
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
