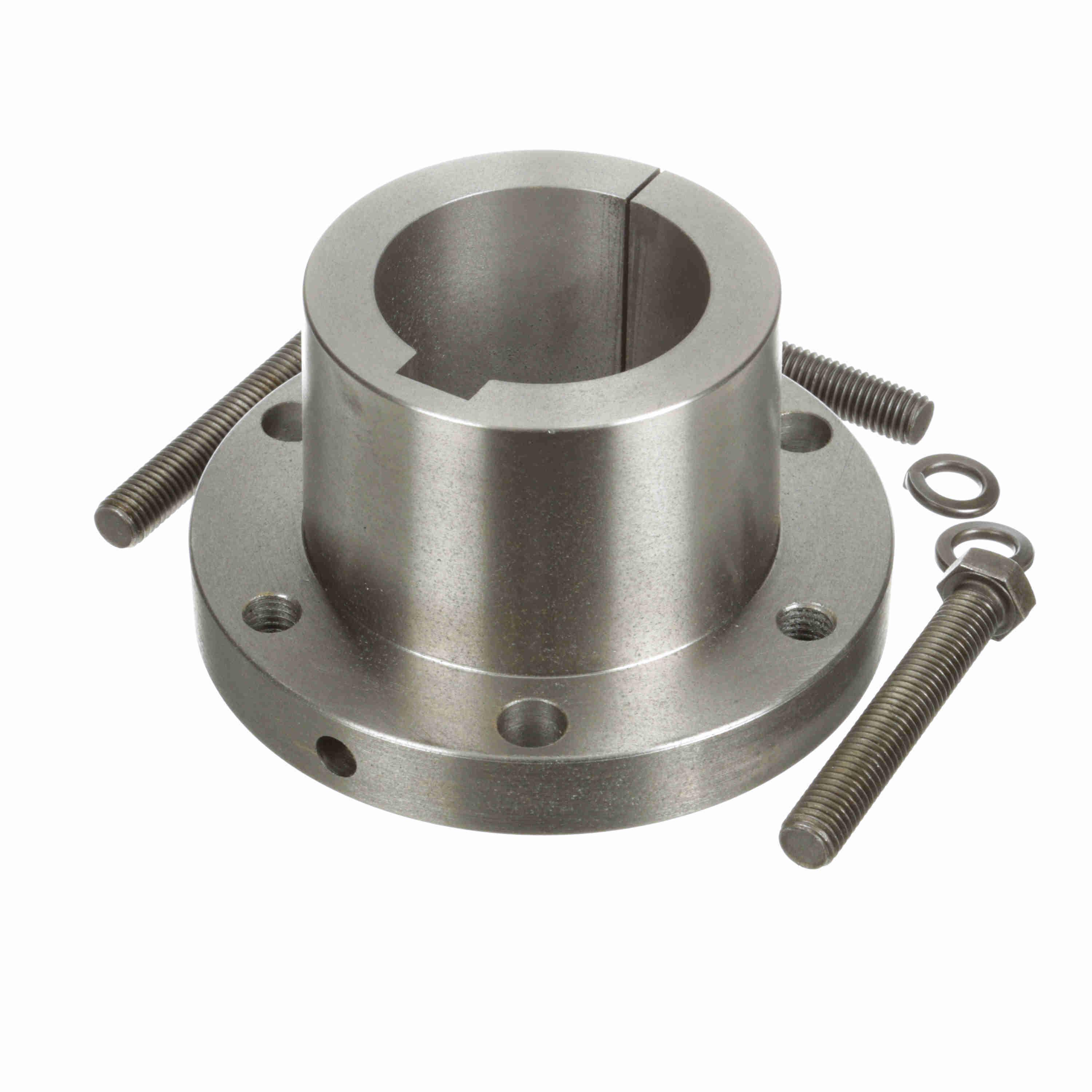

Browning® 1073964 Type F Q-D® Bushing, 3 in Dia Bore, 4-3/8 in Dia Barrel, 6-5/8 in Dia Flange, 3.68 in OAL, Cast Iron
Browning® 1073964 Type F Q-D® Bushing, 3 in Dia Bore, 4-3/8 in Dia Barrel, 6-5/8 in Dia Flange, 3.68 in OAL, Cast Iron
-
BrandBrowning®
-
UPC662289400201
-
Manufacturer Part Number1073964
-
CountryUSA
-
MaterialCast Iron
-
Flange Diameter6-5/8 in
-
Flange Thickness15/16 in
-
Torque Rating30000 in-lb
-
TypeType F
-
Screw Size9/16-12 x 3-5/8 in
-
Number of Bolt Holes3
-
Barrel Diameter4-3/8 in
-
Keyway Size3/4 x 3/8 in
-
Bolt Circle Diameter5-5/8 in
-
Bore Diameter3 in
-
Overall Length3.68 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
-
Alternative Part NumberF 3
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
