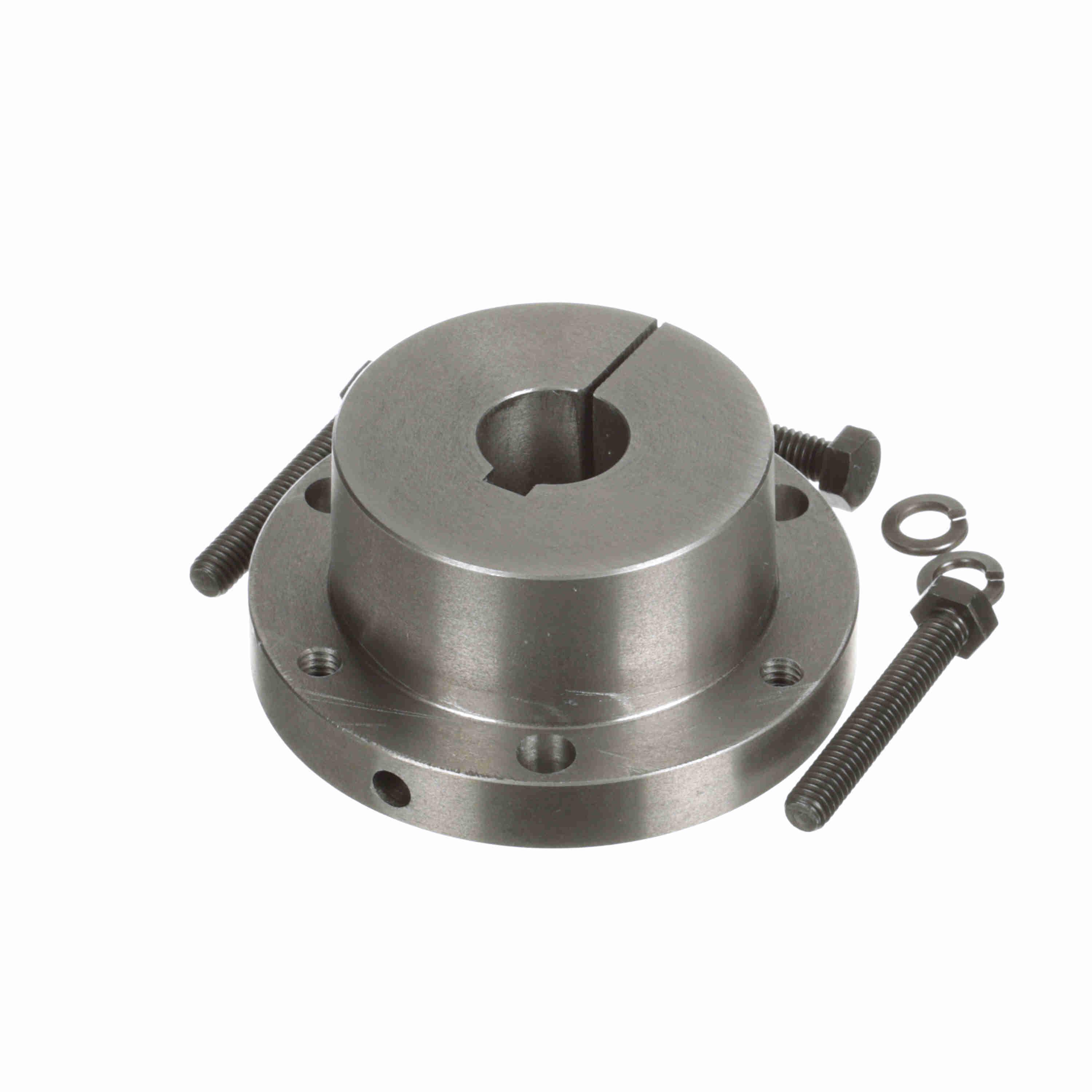

Browning® 3208212 Type SK Q-D® Bushing, 24 mm Dia Bore, 2-13/16 in Dia Barrel, 3-7/8 in Dia Flange, 1-3/4 in OAL, Cast Iron
Browning® 3208212 Type SK Q-D® Bushing, 24 mm Dia Bore, 2-13/16 in Dia Barrel, 3-7/8 in Dia Flange, 1-3/4 in OAL, Cast Iron
-
BrandBrowning®
-
UPC662289616374
-
Manufacturer Part Number3208212
-
CountryUSA
-
MaterialCast Iron
-
Flange Diameter3-7/8 in
-
Flange Thickness9/16 in
-
Torque Rating7000 in-lb
-
TypeType SK
-
Screw Size5/16-18 x 2 in
-
Number of Bolt Holes3
-
Barrel Diameter2-13/16 in
-
Keyway Size8 x 3.5 mm
-
Bolt Circle Diameter3-5/16 in
-
Bore Diameter24 mm
-
Overall Length1-3/4 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Self-locking taper provides the highest degree of mechanical locking product to product
- Conventional mounting
-
Alternative Part NumberSK 24 MM
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
