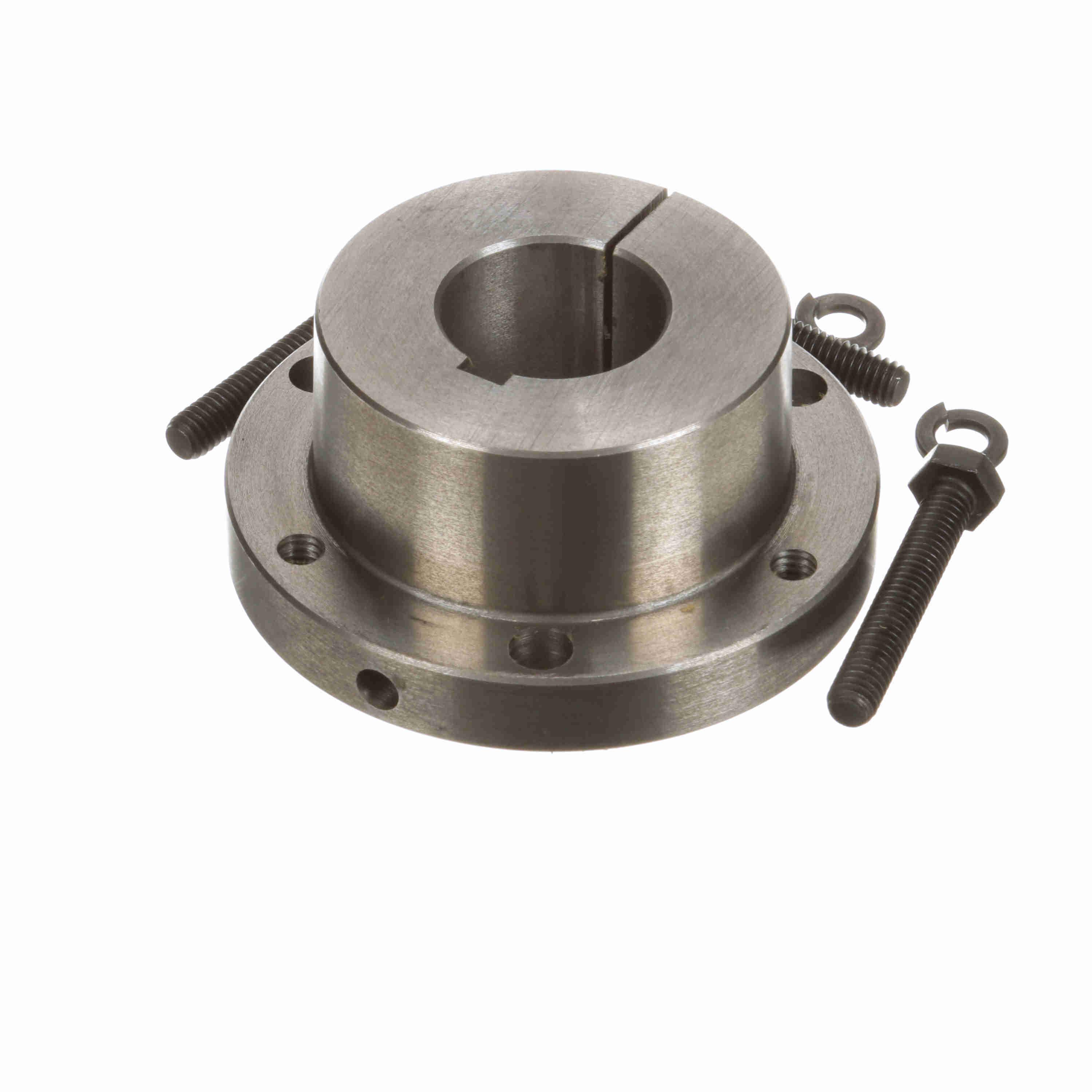

Browning® 1077866 Type SK Q-D® Bushing, 1-5/16 in Dia Bore, 2-13/16 in Dia Barrel, 3-7/8 in Dia Flange, 1-3/4 in OAL, Steel
Browning® 1077866 Type SK Q-D® Bushing, 1-5/16 in Dia Bore, 2-13/16 in Dia Barrel, 3-7/8 in Dia Flange, 1-3/4 in OAL, Steel
-
BrandBrowning®
-
UPC662289375776
-
Manufacturer Part Number1077866
-
CountryUSA
-
MaterialSteel
-
Flange Diameter3-7/8 in
-
Flange Thickness9/16 in
-
Torque Rating7000 in-lb
-
TypeType SK
-
Screw Size5/16-18 x 2 in
-
Number of Bolt Holes3
-
Barrel Diameter2-13/16 in
-
Keyway Size5/16 x 5/32 in
-
Bolt Circle Diameter3-5/16 in
-
Bore Diameter1-5/16 in
-
Overall Length1-3/4 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Self-locking taper provides the highest degree of mechanical locking product to product
- Conventional mounting
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
-
Alternative Part NumberSK 1 5/16 5/16
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
