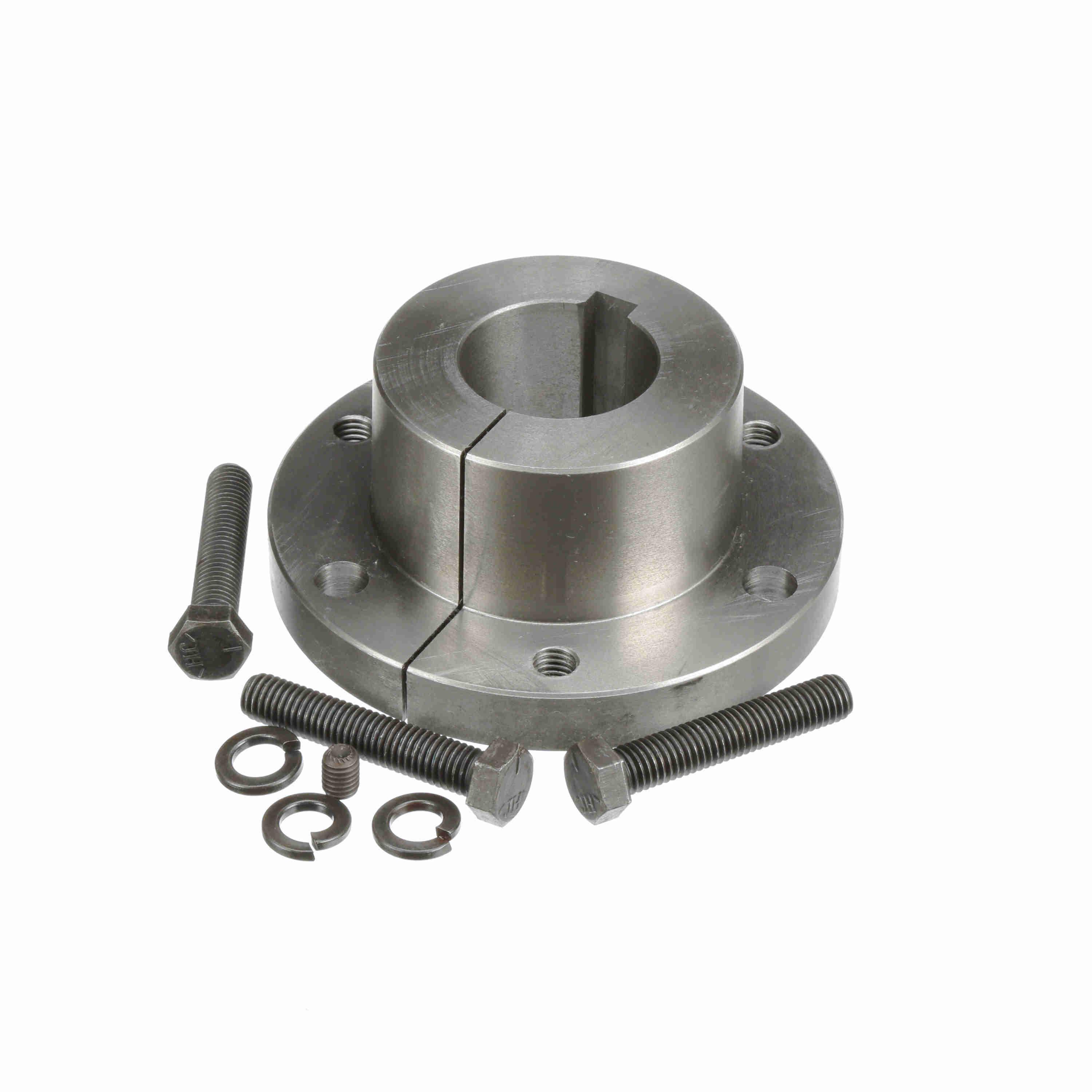

Browning® 1073261 Type E Q-D® Bushing, 1-3/8 in Dia Bore, 3.834 in Dia Barrel, 6 in Dia Flange, 2.64 in OAL, Ductile Iron
Browning® 1073261 Type E Q-D® Bushing, 1-3/8 in Dia Bore, 3.834 in Dia Barrel, 6 in Dia Flange, 2.64 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289374113
-
Manufacturer Part Number1073261
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter6 in
-
Flange Thickness3/4 in
-
Torque Rating20000 in-lb
-
TypeType E
-
Screw Size1/2-13 x 2-3/4 in
-
Number of Bolt Holes3
-
Barrel Diameter3.834 in
-
Keyway Size5/16 x 5/32 in
-
Bolt Circle Diameter5 in
-
Bore Diameter1-3/8 in
-
Overall Length2.64 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft taper on barrel
- Self-locking taper provides the highest degree of mechanical locking product to product
- Conventional mounting
-
Alternative Part NumberE 1 3/8 5/16
-
UNSPSC31171516
-
Package Description1/PK
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
