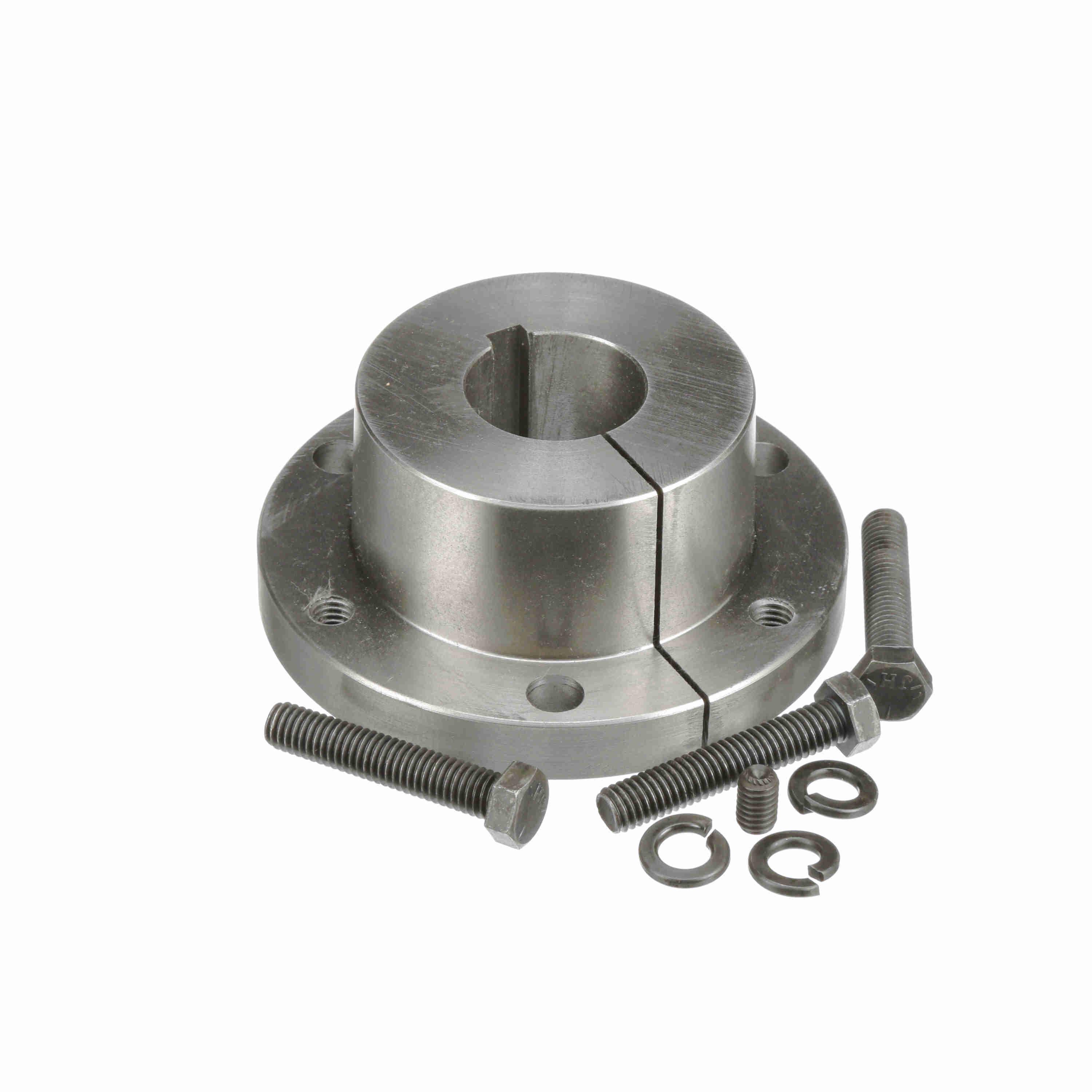

Browning® 1077254 Type SF Q-D® Bushing, 1-3/8 in Dia Bore, 3-1/8 in Dia Barrel, 4-5/8 in Dia Flange, 2 in OAL, Steel
Browning® 1077254 Type SF Q-D® Bushing, 1-3/8 in Dia Bore, 3-1/8 in Dia Barrel, 4-5/8 in Dia Flange, 2 in OAL, Steel
-
BrandBrowning®
-
UPC662289345137
-
Manufacturer Part Number1077254
-
CountryUSA
-
MaterialSteel
-
Flange Diameter4-5/8 in
-
Flange Thickness9/16 in
-
Torque Rating11000 in-lb
-
TypeType SF
-
Screw Size3/8-16 x 2 in
-
Number of Bolt Holes3
-
Barrel Diameter3-1/8 in
-
Keyway Size5/16 x 5/32 in
-
Bolt Circle Diameter3-7/8 in
-
Bore Diameter1-3/8 in
-
Overall Length2 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberSF 1 3/8 5/16
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
