Browning Q-1-STYLE IDLER BUSHINGS BRW ID-Q-1-3/4

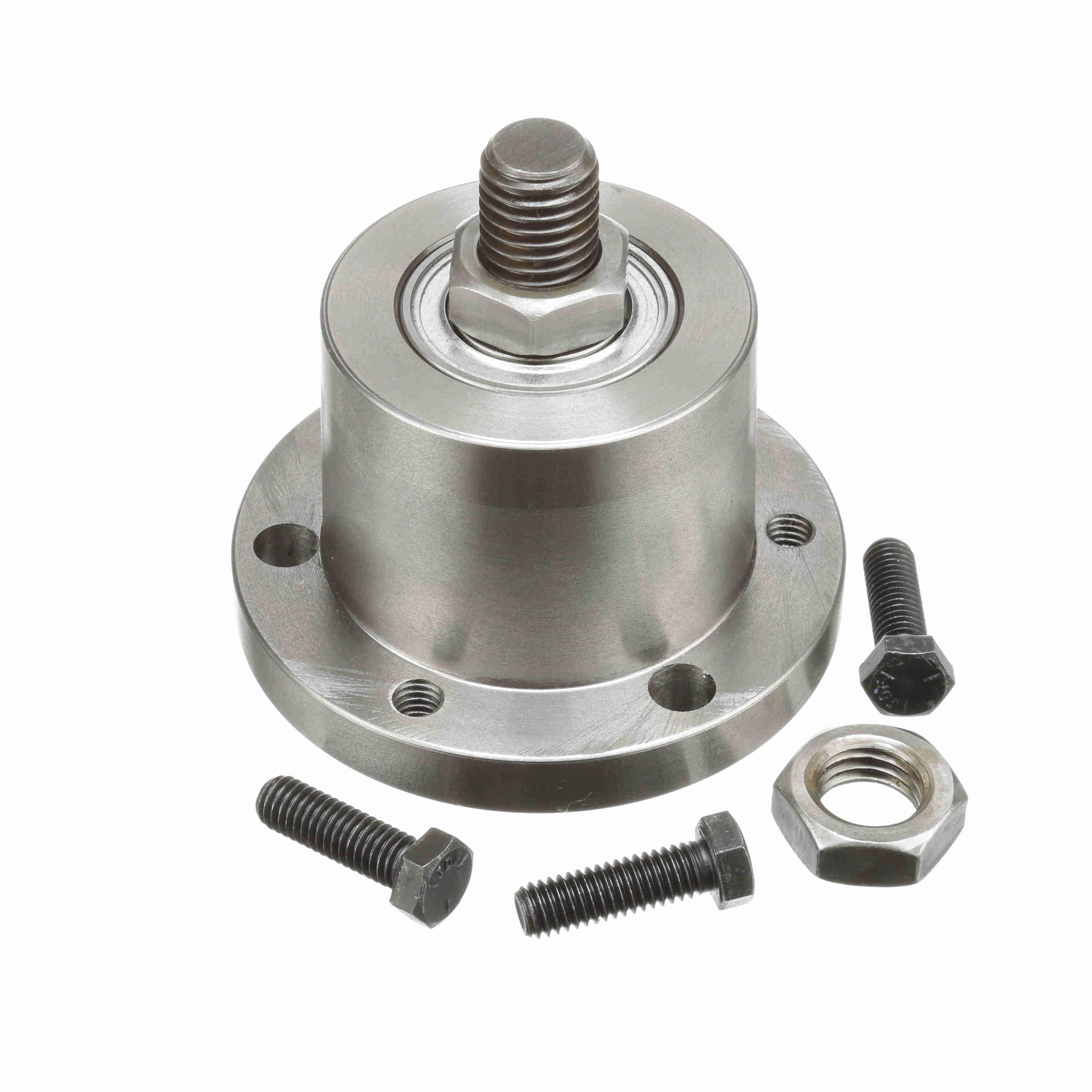

Browning® 1079151 QD Idler Bushing, 3/4 in Dia Bore, 2-7/8 in Dia Barrel, 4-1/8 in Dia Flange, 4-9/32 in OAL, Steel
-
BrandBrowning®
-
UPC662289219971
-
Manufacturer Part Number1079151
-
CountryUSA
-
MaterialSteel
-
Flange Diameter4-1/8 in
-
Flange Thickness17/32 in
-
Number of Bolt Holes5
-
Barrel Diameter2-7/8 in
-
Bearing TypeBall
-
Bolt Circle Diameter3-3/8 in
-
Bore Diameter3/4 in
-
Overall Length4-9/32 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets, Gearbelt Pulleys and Gears
- Browning® idler bushings can be used to convert the following stock products into idlers
- Fixed angle tightener, tightener shaft must be ordered separately
- No shaft required when used with Idler Bushing
- Ductile iron
-
Alternative Part NumberIDQ1 3/4
-
UNSPSC31163217
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
