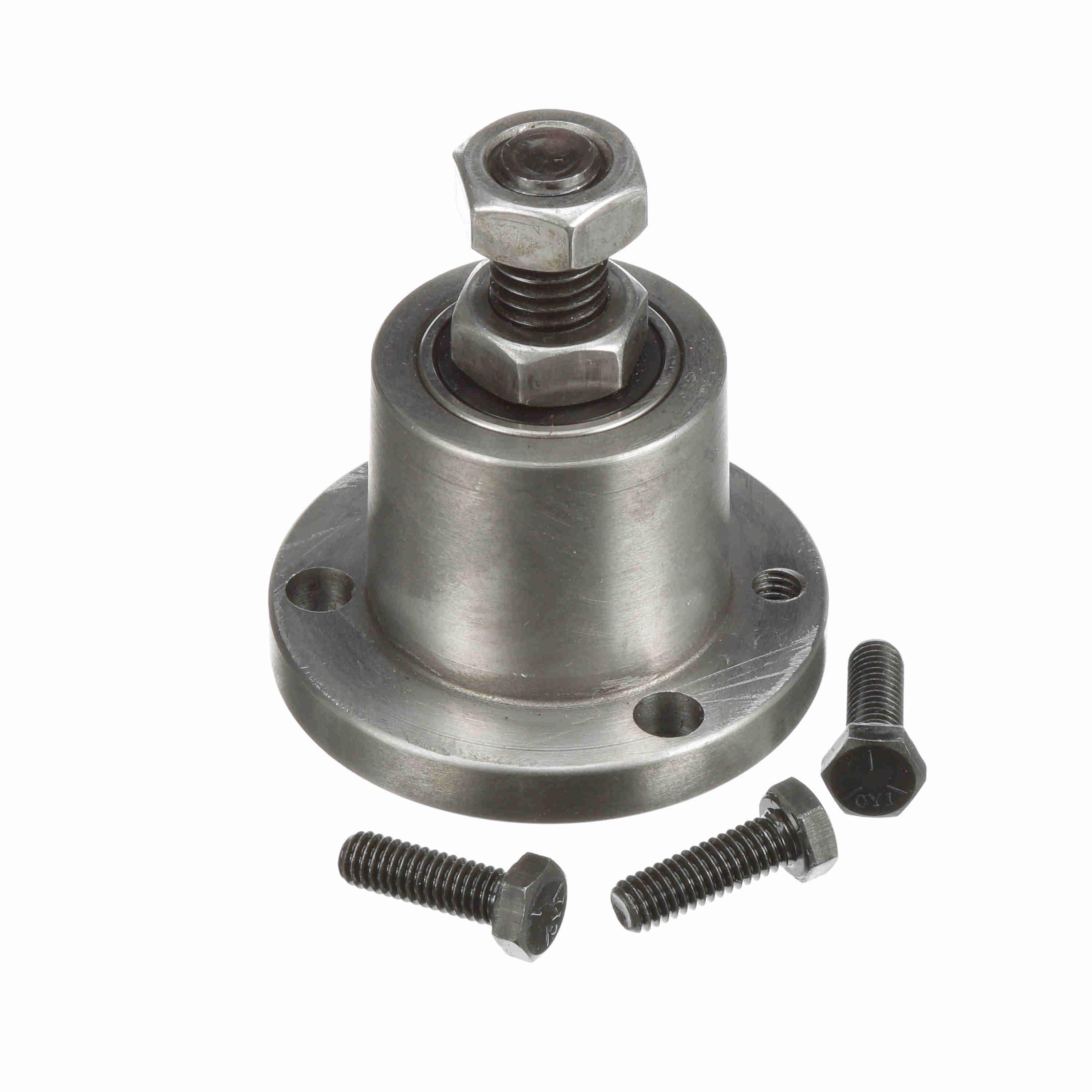

Browning® 1069541 QD Idler Bushing, 5/8 in Dia Bore, 1.937 in Dia Barrel, 3 in Dia Flange, 3-41/64 in OAL, Steel
Browning® 1069541 QD Idler Bushing, 5/8 in Dia Bore, 1.937 in Dia Barrel, 3 in Dia Flange, 3-41/64 in OAL, Steel
-
BrandBrowning®
-
UPC662289239337
-
Manufacturer Part Number1069541
-
CountryUSA
-
MaterialSteel
-
Flange Diameter3 in
-
Flange Thickness13/32 in
-
Number of Bolt Holes5
-
Barrel Diameter1.937 in
-
Bearing TypeBall
-
Bolt Circle Diameter2-7/16 in
-
Bore Diameter5/8 in
-
Overall Length3-41/64 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets, Gearbelt Pulleys and Gears
- Browning® idler bushings can be used to convert the following stock products into idlers
- For drive tightener
- Mating Spur Gears must have same pressure angle and pitch
- Standard Gear Rack - 1. Manufactured From Mild Steel, 2. 14 1/2 Pressure Angle - 32 to 3 DP, 3. 20 Pressure Angle - 20 to 4 DP, 4. 4 and 6 FT Available from Stock, 12 FT May Be Available on Some Sizes
- Modification Options Available - 1. Cut to Desired Length, 2. Milled and Matched Ends, 3. Drilled or Drilled and Tapped Holes for Mounting
-
Alternative Part NumberIDP1 5/8
-
UNSPSC31163217
-
IncludesBall Bearing, Cap Screws, Stud Bolts and Nuts
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
