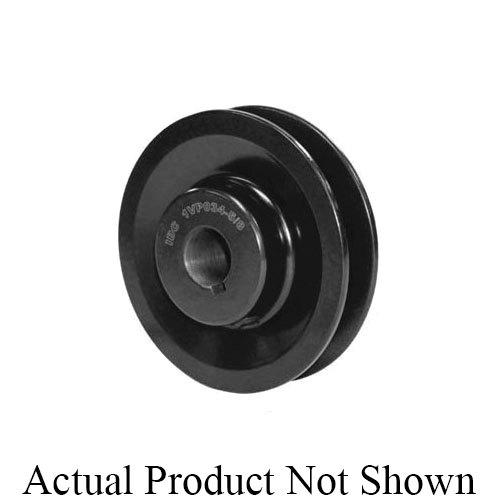

IDC Select 1-GRV VARIABLE PITCH SHEAVES IDC 1-VP-025-5/8
IDC Select® variable pitch sheaves 1VL and 1 and 2VP designs are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.
-
BrandIDC Select®
-
UPC887412016641
-
Manufacturer Part NumberIDC 1VP025-5/8
-
CountryUSA|Canada
-
Face Width0.81 in
-
Pitch Diameter2.4 in
-
FinishBaked Enamel
-
MaterialCast Iron
-
TypeHeavy Duty Type 1
-
Number of Grooves1
-
Outside Diameter2.32 in
-
Bore Diameter5/8 in
-
Overall Length1.59 in
-
Suitable For Use With3L Cross Section V-Belt
- Precision machined from gray cast iron
- Statically balanced
- Cast iron sheaves should not exceed 6500 fpm rim speed
- Special or dynamic balancing should be considered when speeds exceed 5000 fpm
- 1.6 to 2.4 in Dia pitch 3L
- 0.56 to 0.81 in W face
-
UNSPSC31171804
-
Package Description1/PK
-
Standards/ApprovalsASTM Specified|SAE Standard
-
Catalog
-
Technical Bulletin
