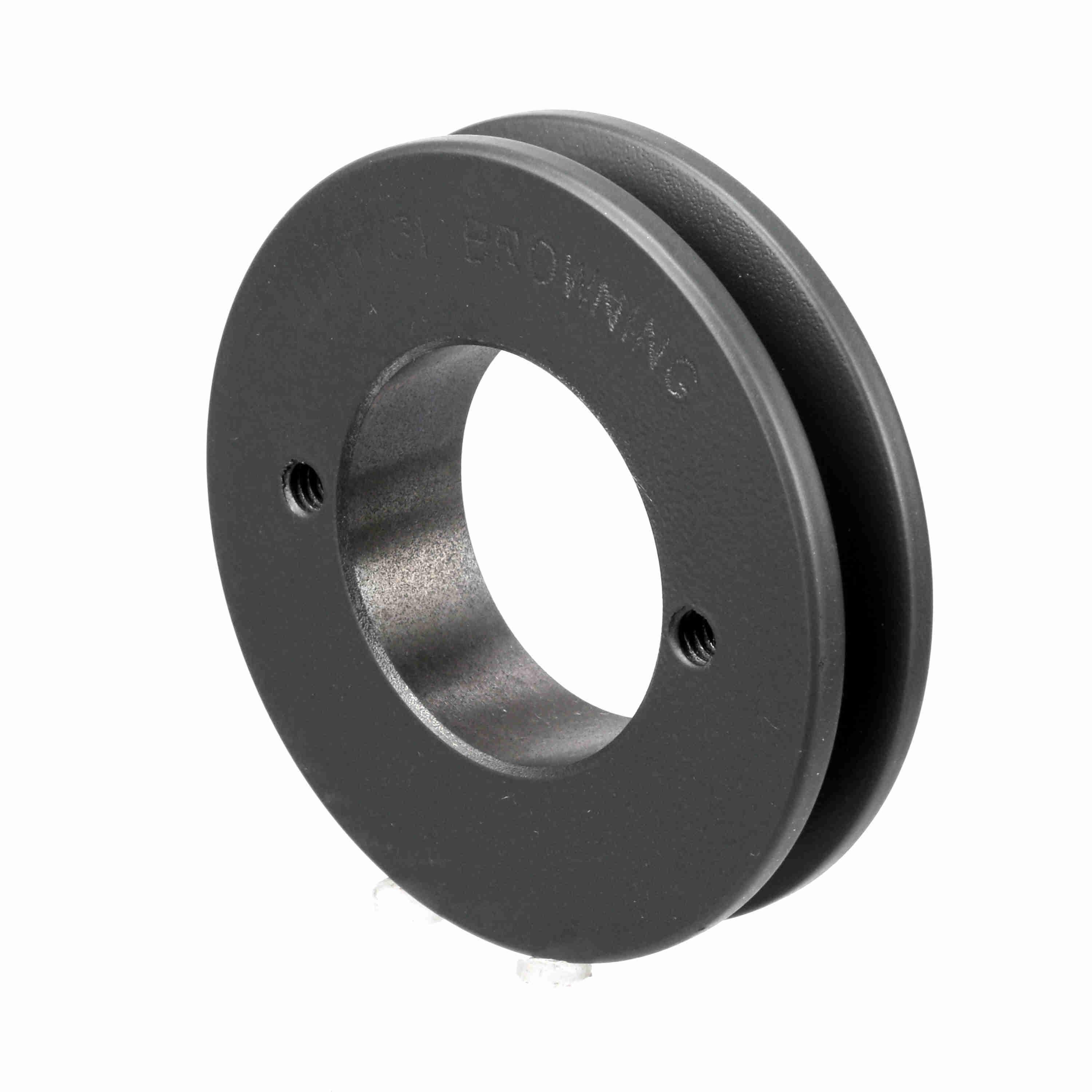

Browning® Gripbelt® 1059310 Type H1 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 3.15 in OD, 3.1 in Dia Pitch, 11/16 in W Face
Browning® Gripbelt® 1059310 Type H1 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 3.15 in OD, 3.1 in Dia Pitch, 11/16 in W Face
-
BrandBrowning®
-
UPC662289208852
-
Manufacturer Part Number1059310
-
CountryUSA
-
Face Width11/16 in
-
Bushing TypeH
-
Pitch Diameter3.1 in
-
MaterialCast Iron
-
TypeType H1
-
Hub Diameter2-1/2 in
-
Hub Projection15/32 in
-
Outside Diameter3.15 in
-
Bore Diameter3/8 to 1-1/2 in
-
Bore TypeSplit Taper
-
Overall Length1-5/16 in
-
Suitable For Use With3V-Cross Section V-Belts
- Easy-on/easy-off
- External key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today
- One and two Groove product are available in 1.6 in to 8.5 in covering up to 25 horsepower
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number1H3V31
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
