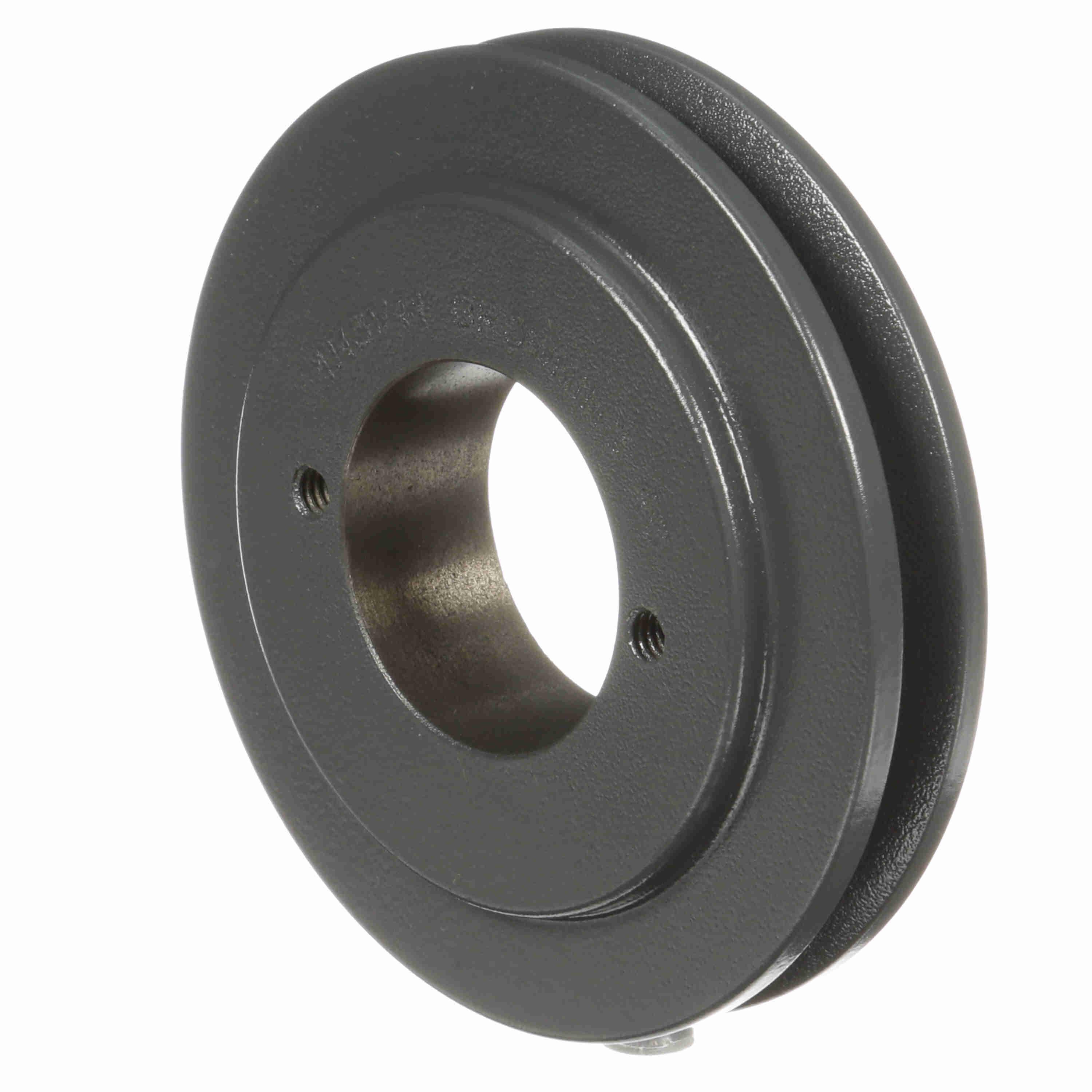

Browning® Gripbelt® 1059948 Type H3 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 4.12 in OD, 4.07 in Dia Pitch, 11/16 in W Face
Browning® Gripbelt® 1059948 Type H3 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 4.12 in OD, 4.07 in Dia Pitch, 11/16 in W Face
-
BrandBrowning®
-
UPC662289159369
-
Manufacturer Part Number1059948
-
CountryUSA
-
Face Width11/16 in
-
Bushing TypeH
-
Pitch Diameter4.07 in
-
MaterialCast Iron
-
TypeType H3
-
Hub Diameter2-1/2 in
-
Hub Projection21/32 in
-
Outside Diameter4.12 in
-
Bore Diameter3/8 to 1-1/2 in
-
Bore TypeSplit Taper
-
Overall Length1-1/2 in
-
Suitable For Use With3V-Cross Section V-Belts
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
- All sheaves are statically balanced to assure smooth, vibration free performance
- Easy-on/easy-off
- Split Taper® bushings keyed to shaft and hub
- External key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity
-
Alternative Part Number1H3V41
-
UNSPSC24101610
-
Package Description1/PK
-
Warranty1 Year
-
Instruction/Installation Manual
