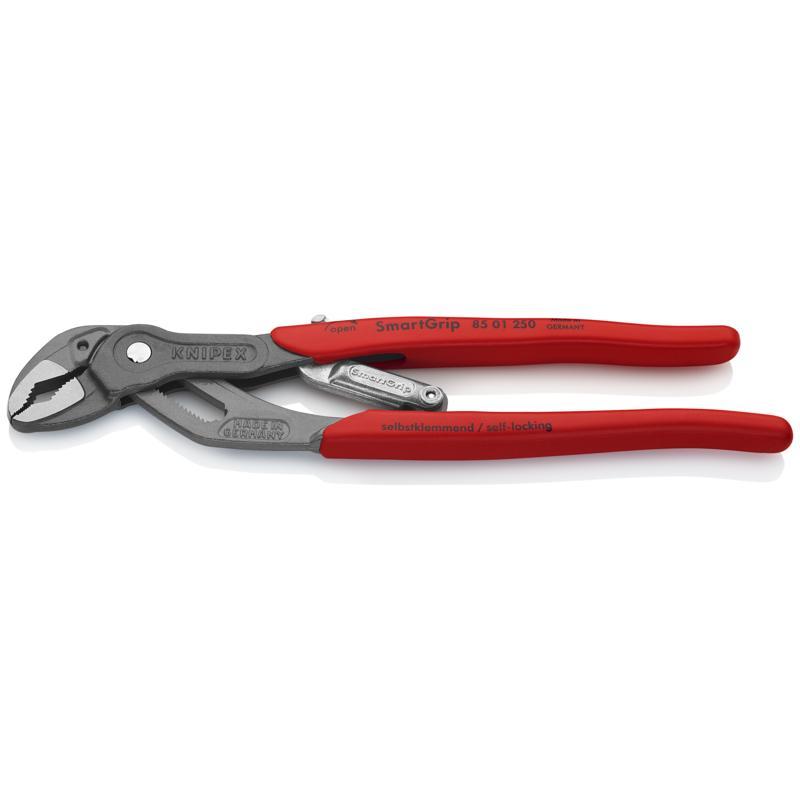

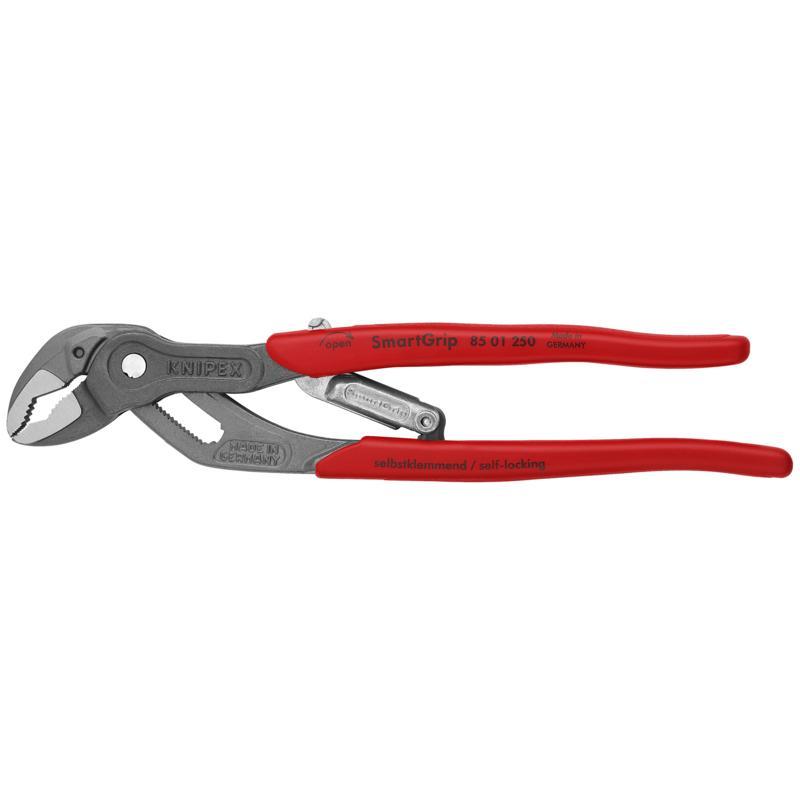

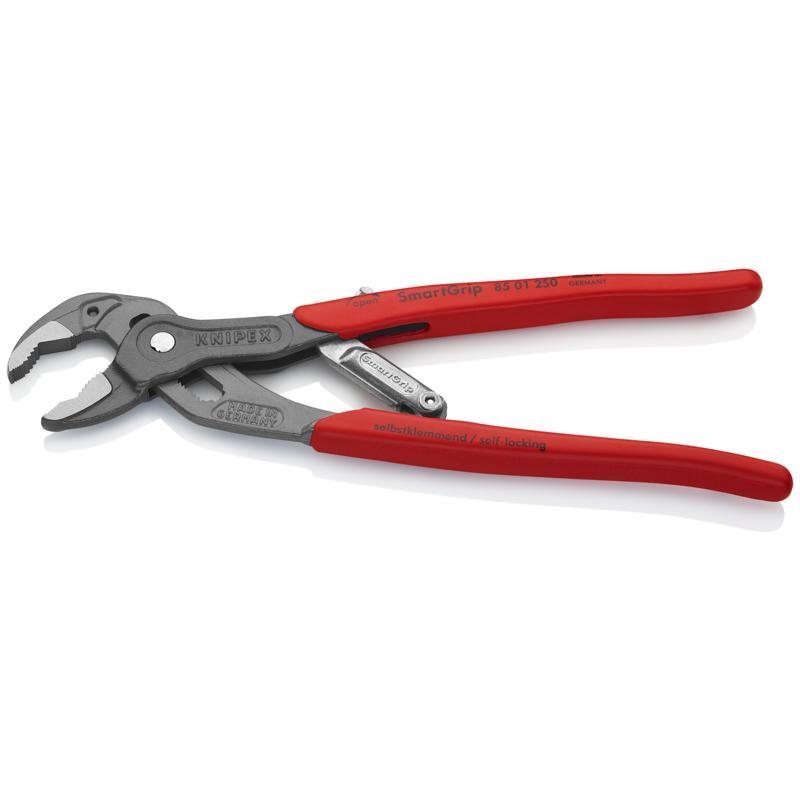

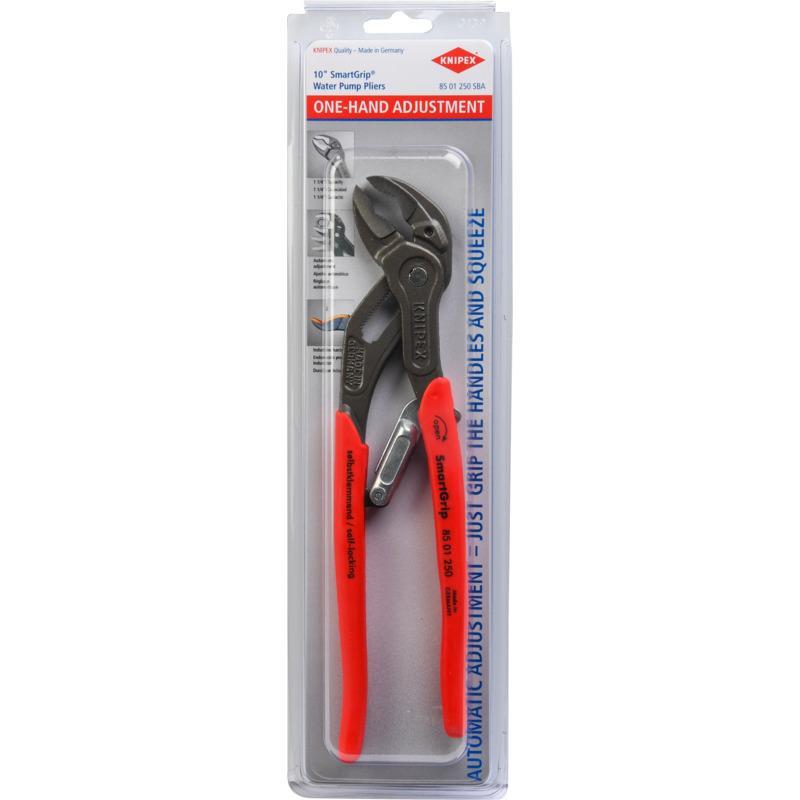

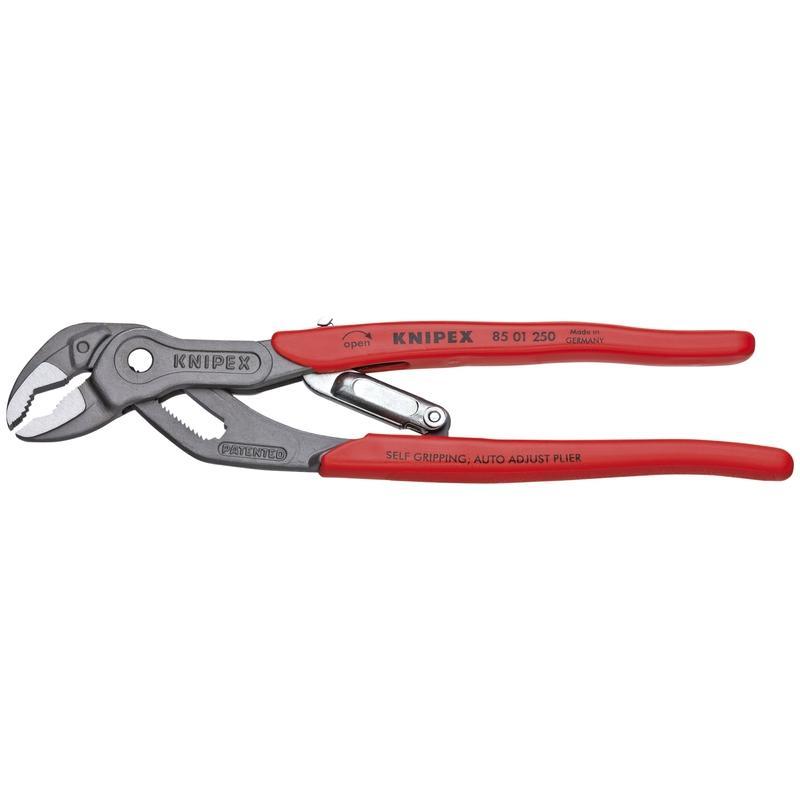

Knipex® SmartGrip™ 85 01 250 SBA Auto Adjusting Box Joint Water Pump Plier, 1-1/4 in Nominal, 1-1/4 in L x 1-3/16 in W CRV Steel V-Shape Jaw, Serrated Jaw Surface, 10 in OAL
Knipex® SmartGrip™ 85 01 250 SBA Auto Adjusting Box Joint Water Pump Plier, 1-1/4 in Nominal, 1-1/4 in L x 1-3/16 in W CRV Steel V-Shape Jaw, Serrated Jaw Surface, 10 in OAL
-
BrandKnipex®
-
UPC843221001278
-
Manufacturer Part Number85 01 250 SBA
-
CountryUSA|Canada
-
FinishAtramentized
-
ColorGray
-
TypeAuto Adjusting Box Joint
-
Handle TypeDipped/Non-Slip
-
Nominal Capacity1-1/4 in
-
Non-SparkingNo
-
Insulated GripNo
-
Jaw MaterialCRV Steel
-
Jaw Size1-1/4 in L x 1-3/16 in W
-
Jaw SurfaceSerrated
-
Jaw TypeV-Shape
-
Overall Length10 in
- Ideal for frequent changeovers to workpieces of different sizes
- Automatic adjustment per 1-hand operation both for right handed and left handed use
- Good access to the workpiece thanks to the slim dimensions of head and joint area and flush joint bolt
- Self-locking on pipes and nuts has no slipping on the workpiece and low handforce required
- Gripping surfaces with special hardened teeth, teeth hardness approximately 61 HRC, high wear resistance and stable gripping
- Box joint design for high stability due to double guide
- Guard prevents operators fingers being pinched
- Locking lever for space saving transport with reliable closed handles
- Chrome vanadium electric steel, forged, multi-stage oil hardened
- Slim dimensions for good access to the workpiece using 1-hand operation
- Gray atramentized pliers, polished head, handles with plastic coating

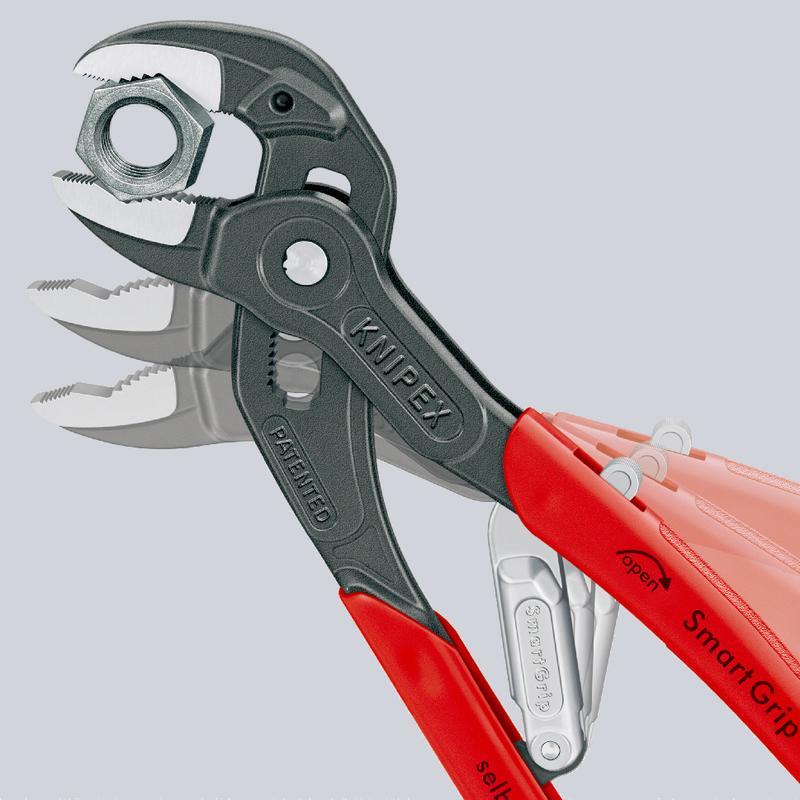

- Self-controlled adjustment on the workpiece simply by squeezing the handles, 1-hand operation for left and right handed people
- Fine adjustment for favorable handle width
- Secure catching of the hinge bolt
- Low in weight, rugged due to forged quality, favorable lever action
- Adjustment to suit the workpiece is automatic with the Knipex® SmartGrip®
-
UNSPSC27112112
-
Specification Sheet
-
Owners/User Manual
