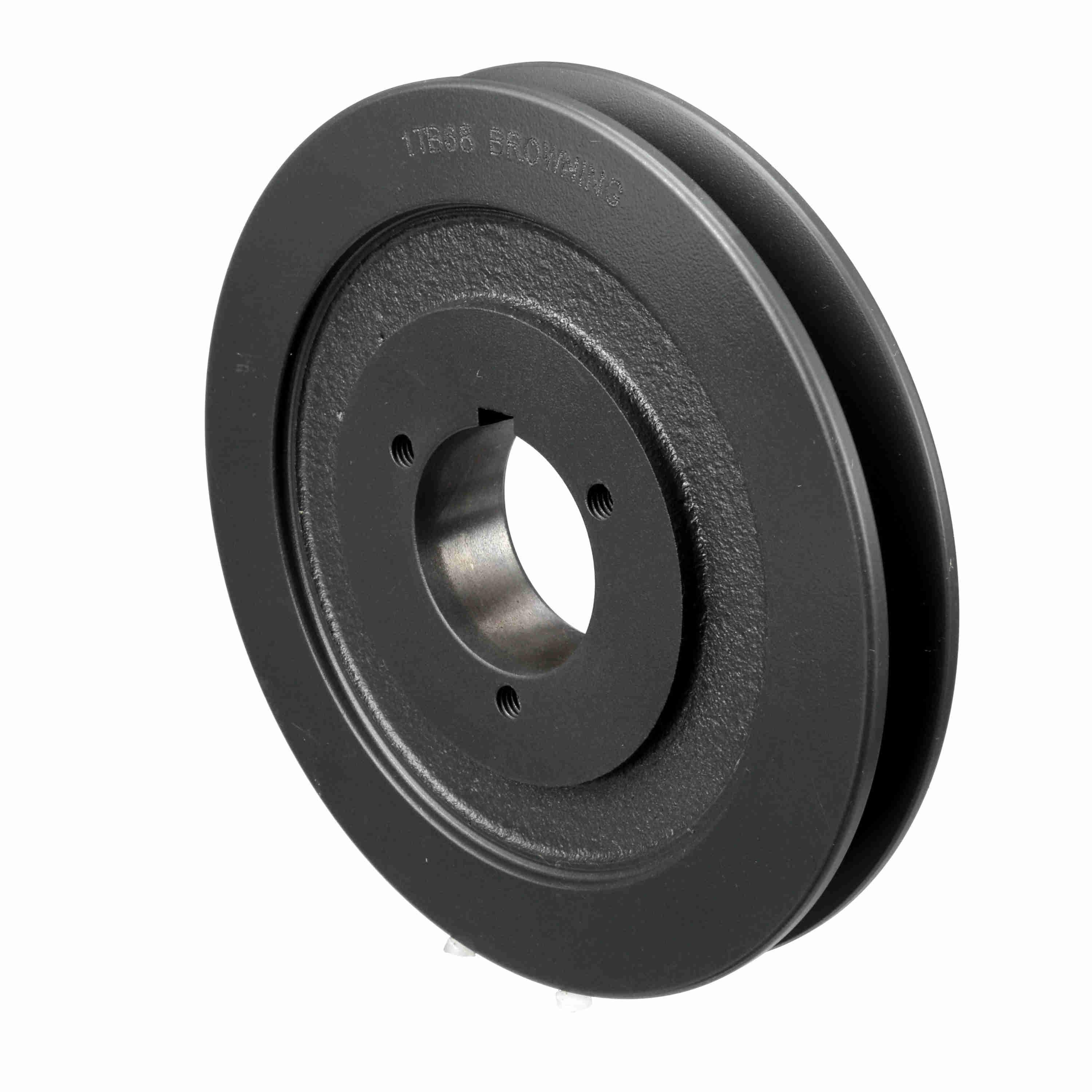

Browning® Classical Gripbelt® 1002203 TB Series Type 10 Web Single Groove Sheave, Split Taper Bore, 1/2 to 1-3/4 in Dia Bore, 7.15 in OD, 6.6 in (A)/7.1 in (B) Dia Pitch, 1 in W Face
Browning® Classical Gripbelt® 1002203 TB Series Type 10 Web Single Groove Sheave, Split Taper Bore, 1/2 to 1-3/4 in Dia Bore, 7.15 in OD, 6.6 in (A)/7.1 in (B) Dia Pitch, 1 in W Face
-
BrandBrowning®
-
UPC662289191888
-
Manufacturer Part Number1002203
-
CountryUSA
-
Face Width1 in
-
Bushing TypeP1
-
Pitch Diameter6.6 in (A)/7.1 in (B)
-
MaterialCast Iron
-
TypeType 10 Web
-
SeriesTB Series
-
Hub Diameter3 in
-
Hub Projection5/8 in
-
Outside Diameter7.15 in
-
Bore Diameter1/2 to 1-3/4 in
-
Bore TypeSplit Taper
-
Overall Length2-9/64 in
-
Suitable For Use WithAB Cross Section V-Belts
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Precision Molded Cogs - Provide more surface area for heat dissipation and increase belt flexibility
- Cooler running means longer life
- Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
- Assures less vibration and Smoother , quieter performance
- Notched belts provide higher horsepower than wrapped belts
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number1TB68
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
