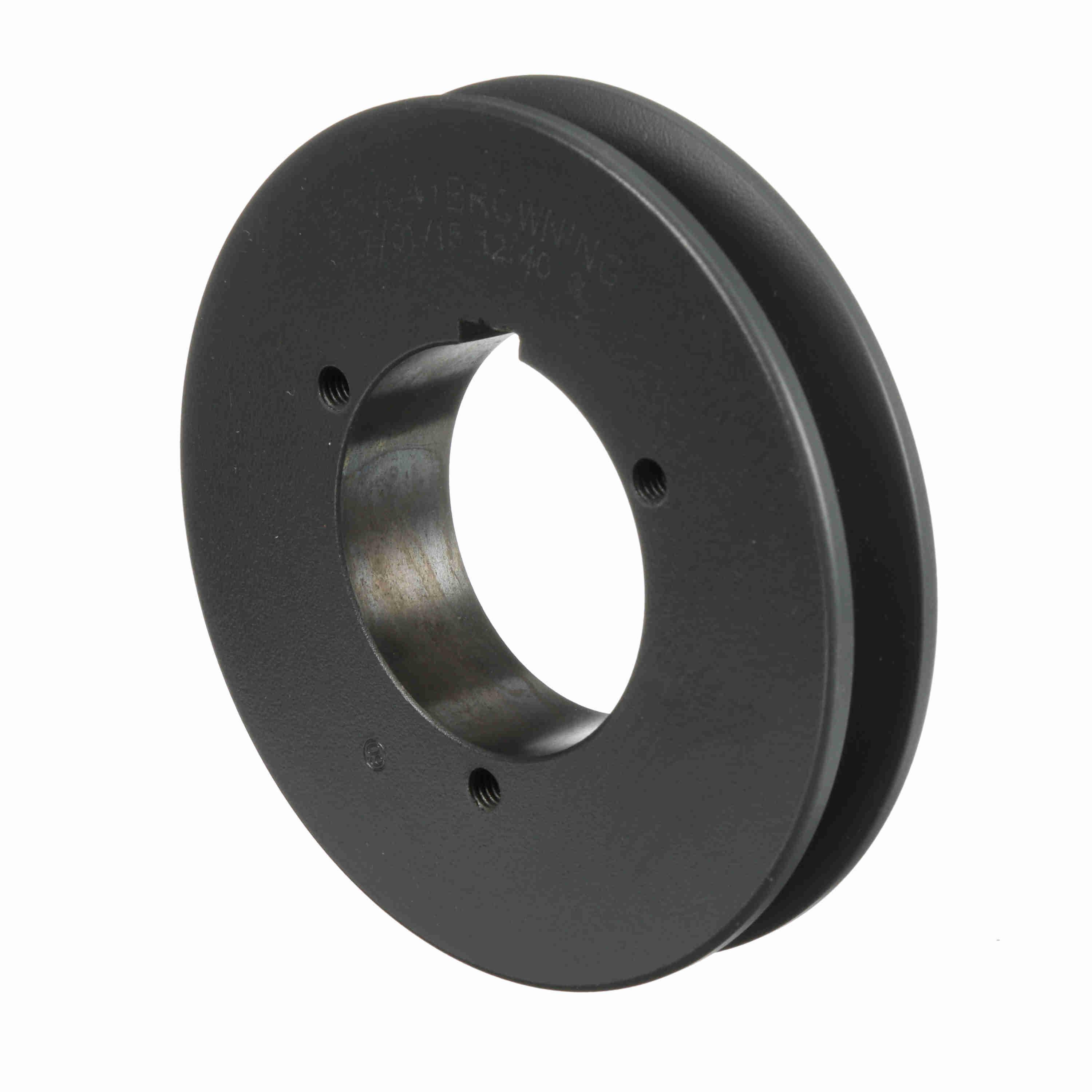

Browning® Classical Gripbelt® 3693645 B5V® Solid Type 1 Single Groove Sheave, Split Taper Bore, 1/2 to 2-7/16 in Dia Bore, 5.68 in OD, 5.2 in (A)/5.7 in (B)/5-1/2 in (BV) Dia Pitch, 1 in W Face

0 Ratings
$84.90
In Stock
SKU: BRW1B5V54
noimage_new

Browning® Classical Gripbelt® 3693645 B5V® Solid Type 1 Single Groove Sheave, Split Taper Bore, 1/2 to 2-7/16 in Dia Bore, 5.68 in OD, 5.2 in (A)/5.7 in (B)/5-1/2 in (BV) Dia Pitch, 1 in W Face

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Back to: Single Groove Sheaves
Main specs
  • Brand
    Browning®
  • UPC
    662289033812
  • Manufacturer Part Number
    3693645
  • Country
    USA
Specification
  • Face Width
    1 in
  • Bushing Type
    B
  • Pitch Diameter
    5.2 in (A)/5.7 in (B)/5-1/2 in (BV)
  • Material
    Cast Iron
  • Type
    Solid Type 1
  • Series
    B5V®
  • Hub Diameter
    3-11/16 in
  • Hub Projection
    55/64 in
  • Outside Diameter
    5.68 in
  • Bore Diameter
    1/2 to 2-7/16 in
  • Bore Type
    Split Taper
  • Overall Length
    2-9/64 in
  • Suitable For Use With
    4L/A, 5L/B and 5V Cross Section Belt
Features
  • Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
  • Highest torque carrying capacity in the Browning® bushing product line
  • Double split barrel assures true concentricity
  • Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
Additional Information
  • Alternative Part Number
    1B5V54
  • UNSPSC
    24101610
  • Package Description
    EACH
  • Warranty
    1 Year
Attachments
Reviews

There are yet no reviews for this product.
