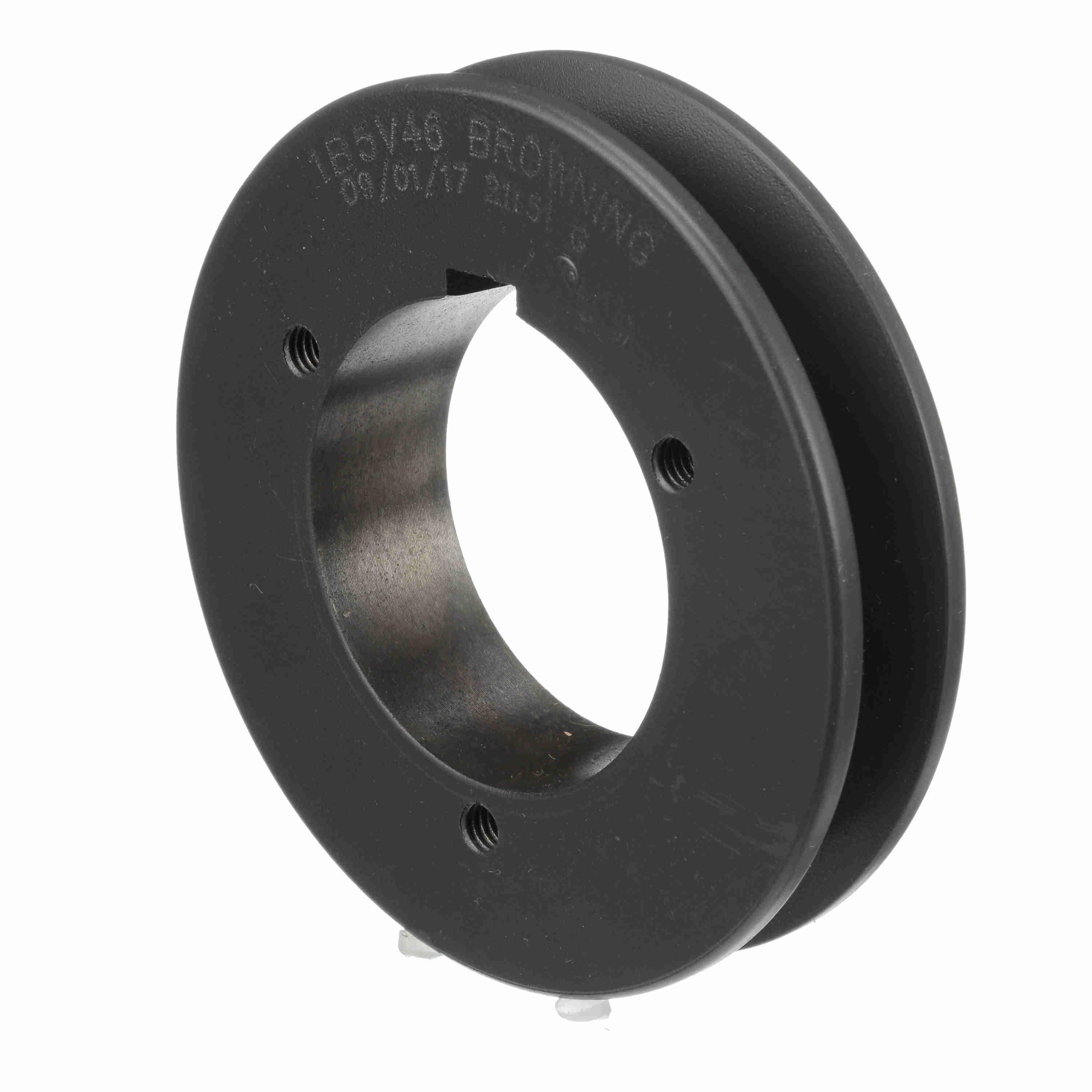

Browning® Classical Gripbelt® 3693603 B5V® Solid Type 1 Single Groove Sheave, Split Taper Bore, 1/2 to 2-7/16 in Dia Bore, 4.88 in OD, 4.4 in (A)/4.9 in (B)/4.7 in (BV) Dia Pitch, 1 in W Face
Browning® Classical Gripbelt® 3693603 B5V® Solid Type 1 Single Groove Sheave, Split Taper Bore, 1/2 to 2-7/16 in Dia Bore, 4.88 in OD, 4.4 in (A)/4.9 in (B)/4.7 in (BV) Dia Pitch, 1 in W Face
-
BrandBrowning®
-
UPC662289033744
-
Manufacturer Part Number3693603
-
CountryUSA
-
Face Width1 in
-
Bushing TypeB
-
Pitch Diameter4.4 in (A)/4.9 in (B)/4.7 in (BV)
-
MaterialCast Iron
-
TypeSolid Type 1
-
SeriesB5V®
-
Hub Diameter3-11/16 in
-
Hub Projection55/64 in
-
Outside Diameter4.88 in
-
Bore Diameter1/2 to 2-7/16 in
-
Bore TypeSplit Taper
-
Overall Length2-9/64 in
-
Suitable For Use With4L/A, 5L/B and 5V Cross Section Belt
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part Number1B5V46
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
