NIBCO 2-1/2" S-40 PVC SLIPXSLIPXSLIP TEE NIB 401-025

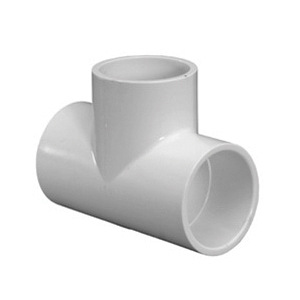

Lasco® 401-025 Tee, 2-1/2 in Nominal, Slip End Style, SCH 40/STD, PVC, Nitrile Rubber Seal, Domestic
-
BrandLasco®
-
UPC025528723569
-
Manufacturer Part Number401-025
-
CountryUSA
-
Temperature Rating140 deg F
-
MaterialPVC
-
Fitting/Connector TypeTee
-
Pressure Class125 lb
-
Method of ManufactureInjection-Molded
-
ColorWhite
-
Schedule RatingSCH 40/STD
-
Nominal Size2-1/2 in
-
Seal MaterialNitrile Rubber
-
Domestic/ImportDomestic
-
Length7 in
-
End StyleSlip
- ASTM D-1784: Rigid poly vinyl chloride (PVC) compounds and chlorinated poly vinyl chloride (CPVC) compounds
- ASTM F-1970: Standard specification for special engineered fittings, appurtenances or valves for use in poly vinyl chloride (PVC) or chlorinated poly vinyl chloride (CPVC) systems
- Lasco® SCH 40 fittings are produced from PVC type 1, cell classification 12454-B
- NSF/ANSI standard 61, Annex G: Drinking water system components Weighted average lead content of less than or equal to 0.25% and is in compliance with California's Health and safety code Section 116875 (commonly known as AB 1953)
- Not to be used in the hot or cold water distribution system in a dwelling maximum service temperature 140 deg F
- Do not use Lasco® fittings for compressed air or gases
- Do not test PVC piping systems with compressed air or gases
- Do not use fittings with liquids not recommended by Lasco®
- Fitting modification voids the warranty
-
UNSPSC40174608
-
Package Description10/CTN
-
Standards/ApprovalsASTM D1784|ASTM D2466|ASTM F1970|NSF/ANSI 14|NSF/ANSI 61|Annex-G
-
Specification Sheet
