Browning 1-GRV A-BELT 1-3/16"-ID SHEAVES BRW AK-144 X 1.3/16

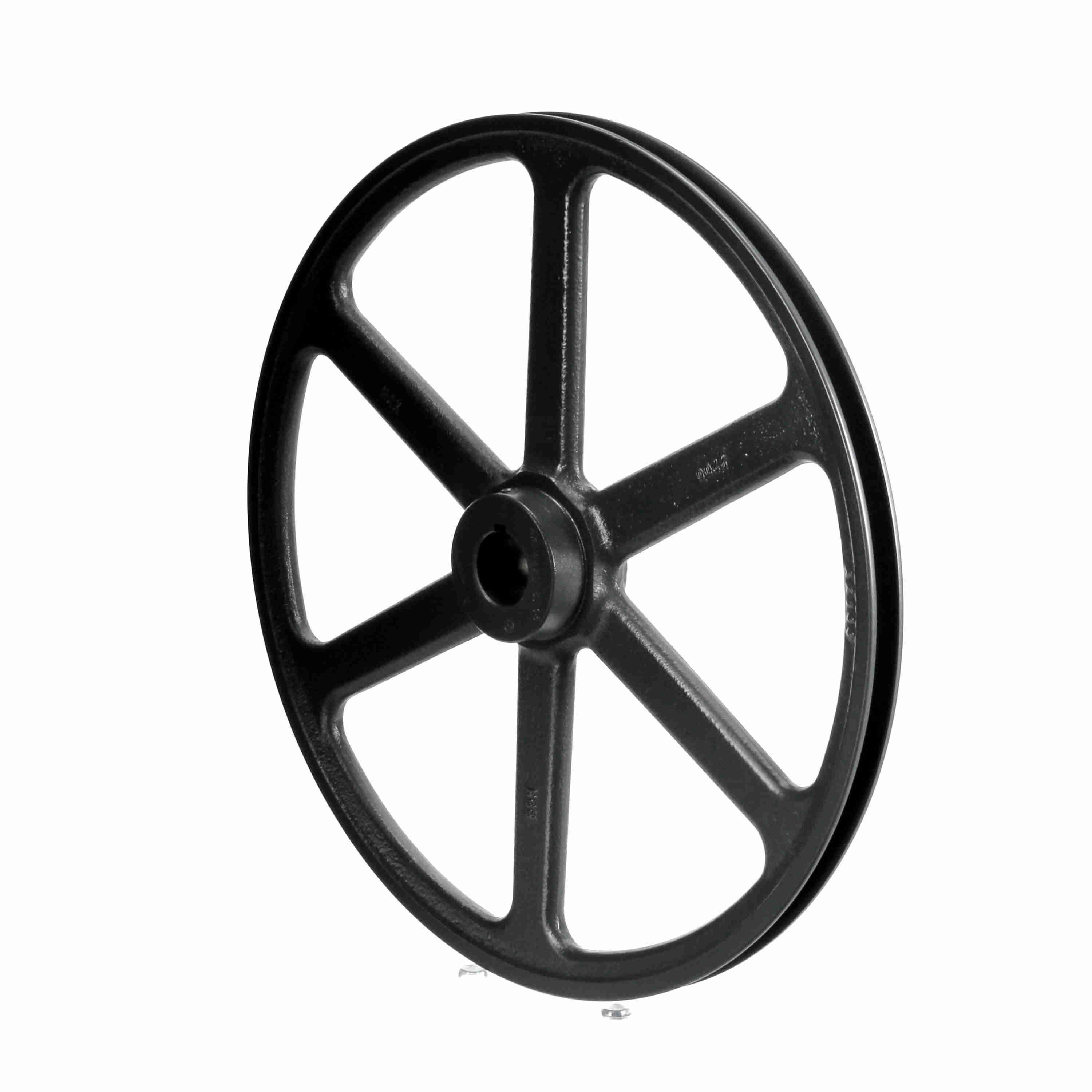

Browning® Classical Gripbelt® 1027671 AK Series Type 3 Single Groove Sheave, Finished Bore, 1-3/16 in Dia Bore, 14-1/4 in OD, 14.2 in (A)/13.66 in (3L) Dia Pitch, 3/4 in W Face
-
BrandBrowning®
-
UPC662289277445
-
Manufacturer Part Number1027671
-
CountryUSA
-
Face Width3/4 in
-
Pitch Diameter14.2 in (A)/13.66 in (3L)
-
MaterialCast Iron
-
TypeType 3
-
SeriesAK Series
-
Hub Projection23/32 in
-
Outside Diameter14-1/4 in
-
Bore Diameter1-3/16 in
-
Bore TypeFinished
-
Overall Length1-15/32 in
-
Suitable For Use With4L/A and 3L Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part NumberAK144X 1 3/16
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
