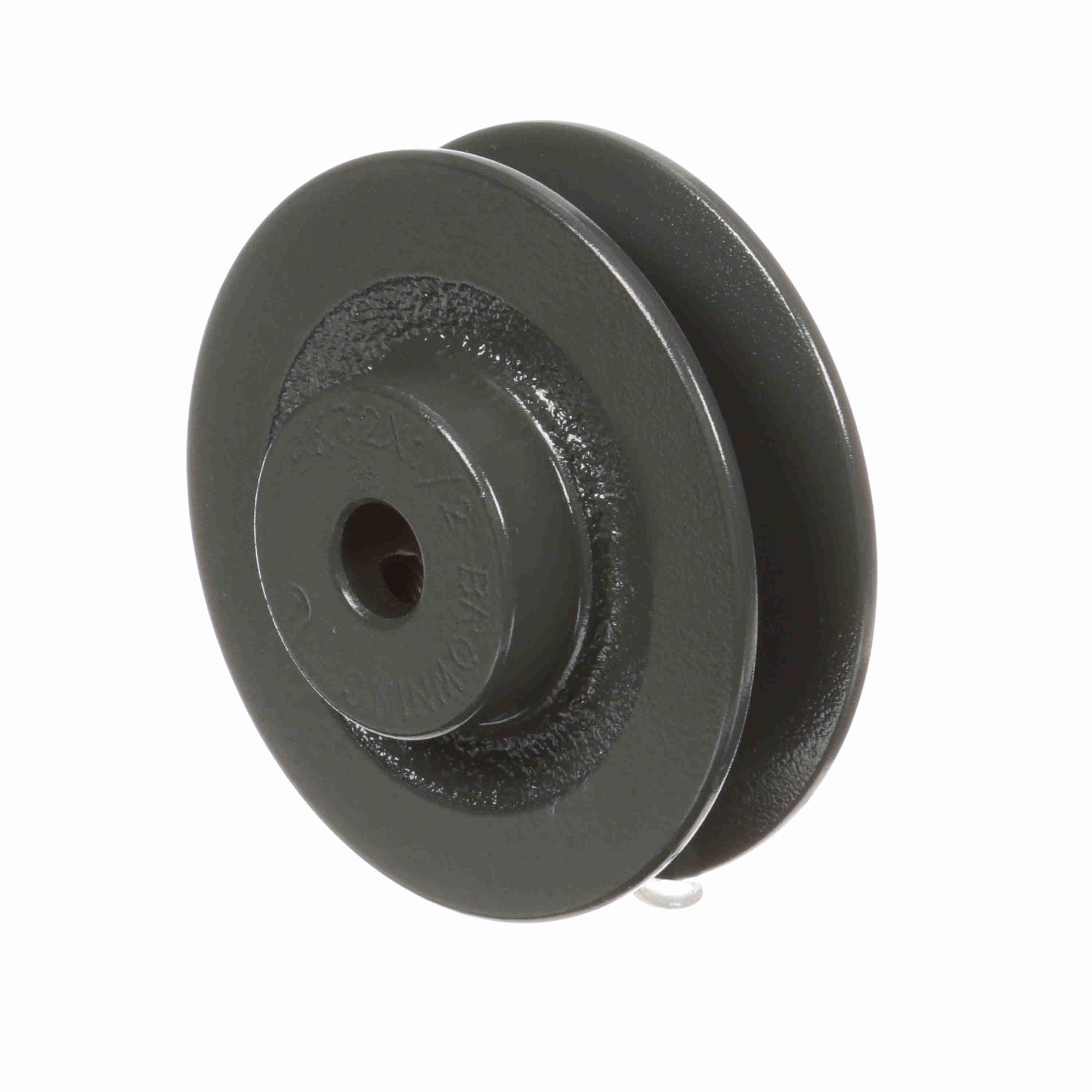

Browning® Classical Gripbelt® 1028034 BK Series Type 2 Single Groove Sheave, Finished Bore, 1/2 in Dia Bore, 3.35 in OD, 2.8 in (A)/3.3 in (B) Dia Pitch, 13/16 in W Face
Browning® Classical Gripbelt® 1028034 BK Series Type 2 Single Groove Sheave, Finished Bore, 1/2 in Dia Bore, 3.35 in OD, 2.8 in (A)/3.3 in (B) Dia Pitch, 13/16 in W Face
-
BrandBrowning®
-
UPC662289117772
-
Manufacturer Part Number1028034
-
CountryUSA
-
Face Width13/16 in
-
Pitch Diameter2.8 in (A)/3.3 in (B)
-
MaterialCast Iron
-
TypeType 2
-
SeriesBK Series
-
Hub Projection13/32 in
-
Outside Diameter3.35 in
-
Bore Diameter1/2 in
-
Bore TypeFinished
-
Overall Length1-7/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
-
Alternative Part NumberBK32X1/2
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
