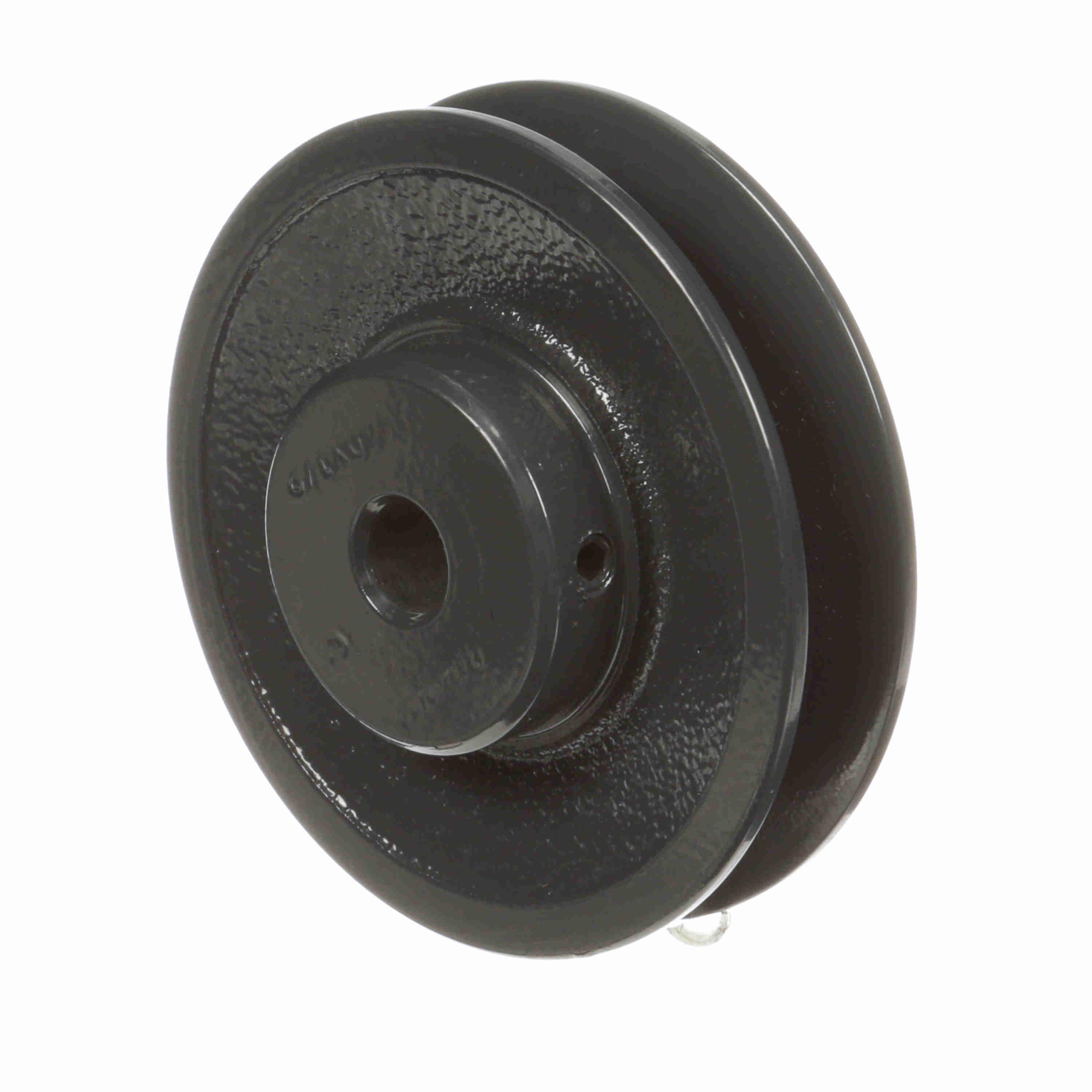

Browning® Classical Gripbelt® 1028190 BK Series Type 2 Single Groove Sheave, Finished Bore, 1/2 in Dia Bore, 3.95 in OD, 3.4 in (A)/3.9 in (B) Dia Pitch, 7/8 in W Face
Browning® Classical Gripbelt® 1028190 BK Series Type 2 Single Groove Sheave, Finished Bore, 1/2 in Dia Bore, 3.95 in OD, 3.4 in (A)/3.9 in (B) Dia Pitch, 7/8 in W Face
-
BrandBrowning®
-
UPC662289157884
-
Manufacturer Part Number1028190
-
CountryUSA
-
Face Width7/8 in
-
Pitch Diameter3.4 in (A)/3.9 in (B)
-
MaterialCast Iron
-
TypeType 2
-
SeriesBK Series
-
Hub Projection13/32 in
-
Outside Diameter3.95 in
-
Bore Diameter1/2 in
-
Bore TypeFinished
-
Overall Length1-9/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- External rib design provides cooling for longer belt life
- Increases wall thickness by 30%
- Increased hub diameter by 20%
- Tighter tolerances by 25%
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Combination groove all Browning® BK sheaves permit the running of A, 4L, B and 5L belts to be run in them
- Precision balanced to provide smooth, vibration free performance
-
Alternative Part NumberBK40X1/2
-
UNSPSC24101610
-
Package Description1/PK
-
Warranty1 Year
-
